Karcher (Керхер) Воздуходувка (0.116-178.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

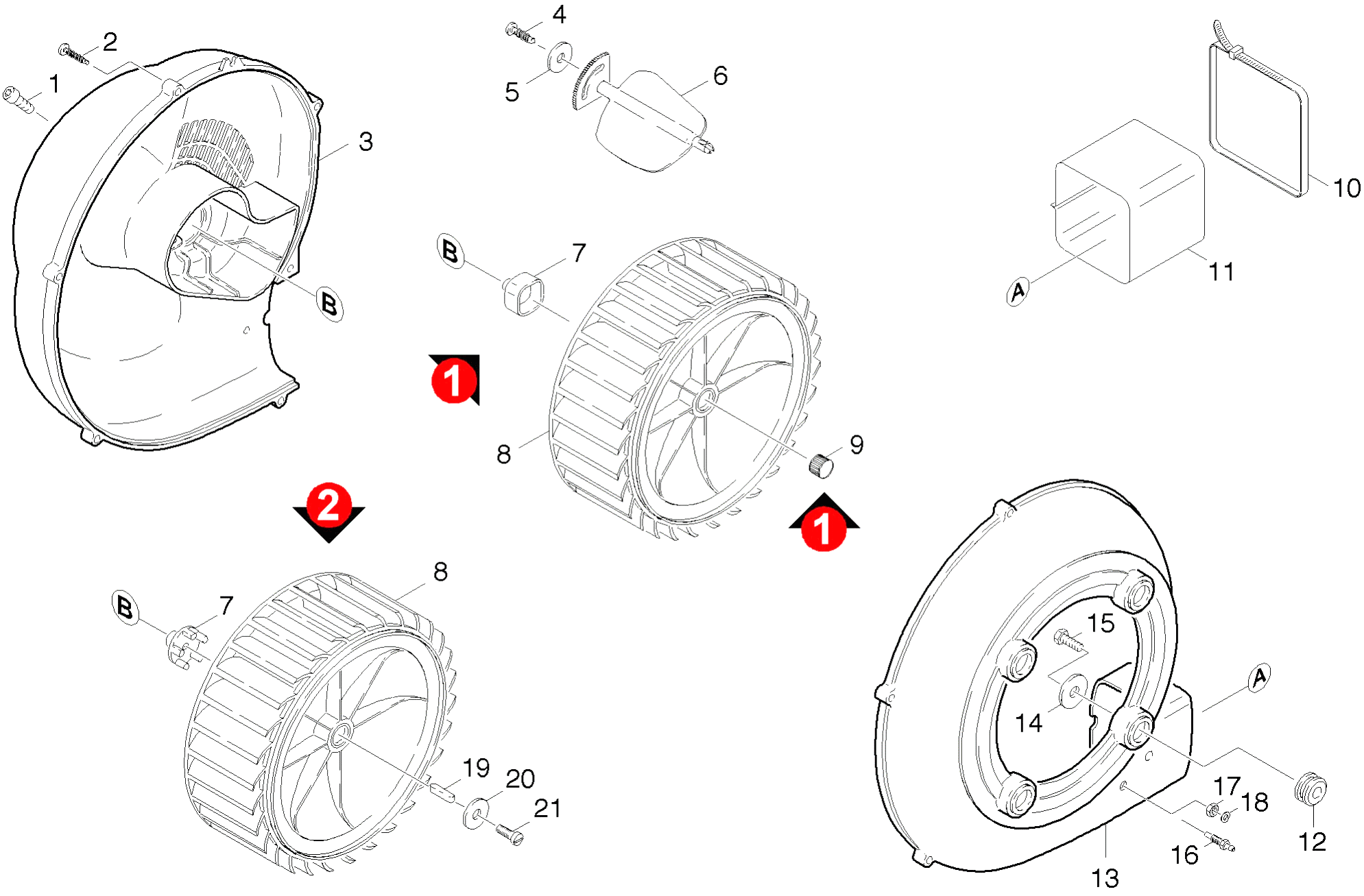

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
2	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
3	5.063-457.0	Cover blower
4	7.303-077.0	Sheet metal screw ST4,8X16-ST-A2R (IN6R
5	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
6	5.606-005.0	Air flap
7	5.471-060.0	Coupling element
7	5.471-097.0	Coupler fuel pump
8	5.600-045.0	Blower wheel
8	5.600-080.0	Blower wheel with groove
9	6.343-027.0	Tolerance ring D17X16
10	6.388-608.0	Tightening strap
11	4.178-009.0	Cloth collar
12	5.379-019.0	Rubber ring
13	5.605-219.0	Housing blower
14	5.115-233.0	Washer
15	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
16	5.402-593.0	Screw union
17	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
18	7.313-032.0	Spring washer A 5-Edelstahl DIN 128
19	7.318-058.0	Parallel key 4x4x20-1.4301 DIN 6885
20	7.312-264.0	Washer 5-100HV-A3E ISO 7094
21	6.401-122.0	Rotor disc
21	7.306-071.0	Screw M5x10 -8.8-R2R (In6Rd)
22	6.401-123.0	Axial roller cage
23	6.401-124.0	Thrust washer with cage
25	7.318-089.0	Parallel key A 8x5x25-C45R DIN 6885
26	5.030-389.0	Moulded part
27	6.642-011.0	Insulating hose 10
28	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
31	4.820-430.0	Cable green/yellow 1,5mm?x450mm
