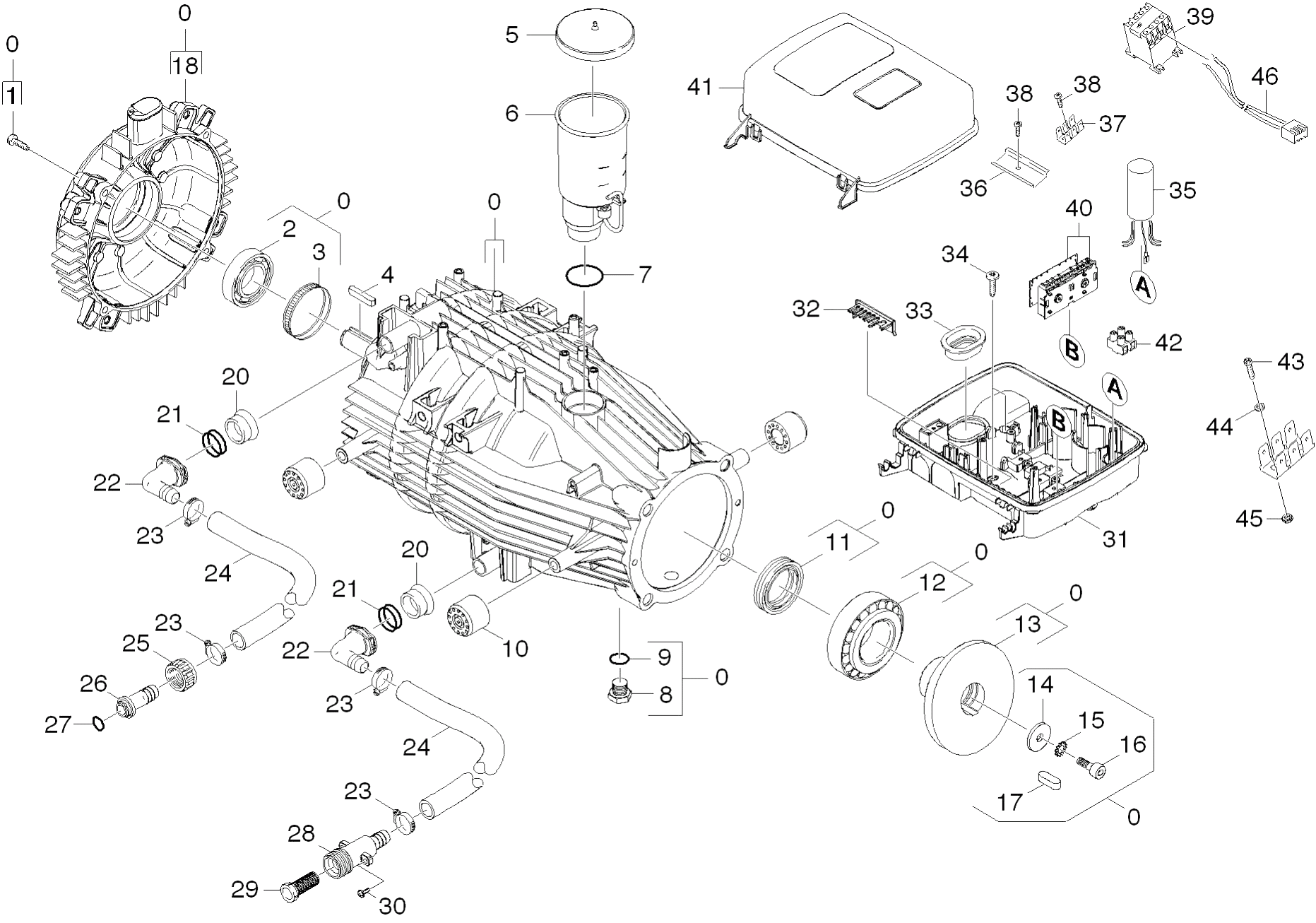

Karcher (Керхер) Мотор (0.104-369.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-921.0 |
Motor complete only for replacement |
|
| 1 |
7.303-049.0 |
Screw M6x25-ST-A3R (IN6RD) |
|
| 2 |
6.401-253.0 |
Ball bearing 6305-2Z |
|
| 3 |
6.343-010.0 |
Tolerance ring 62x10 |
|
| 4 |
7.318-032.0 |
Parallel key 6x6x32-C45R DIN 6885 |
|
| 5 |
5.063-189.0 |
Cover |
|
| 6 |
4.070-904.0 |
Tank only for replacement |
|
| 7 |
6.362-722.0 |
O-Ring seal 28,0 X 3,0 |
|
| 8 |
5.411-100.0 |
Screw plug |
|
| 9 |
6.362-458.0 |
O-Ring seal 11,0x2,0-NBR 70 |
|
| 10 |
5.767-005.0 |
Rubber buffer |
|
| 11 |
7.367-009.0 |
Radial shaft seal ring A35x52x7-NBR DIN |
|
| 12 |
6.401-225.0 |
Taper roller bearing 41 |
|
| 13 |
5.120-353.0 |
Wobble plate |
|
| 14 |
5.115-565.0 |
Washer |
|
| 15 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 16 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 17 |
7.318-035.0 |
Parallel key 8x7x25 -C45R DIN 6885-1 |
|
| 18 |
5.064-006.0 |
Bearing cover B |
|
| 20 |
5.110-341.0 |
Sleeve |
|
| 21 |
6.362-579.0 |
O-Ring seal 17,5 X 3,5 |
|
| 22 |
5.427-415.0 |
Manifold |
|
| 23 |
7.373-022.0 |
Hose clip A-16-27x9 -W2-2 DIN3017 |
|
| 24 |
6.390-320.0 |
Hose DN 16 |
|
| 25 |
5.310-061.0 |
"""Nut R 3/4"""" """ |
|
| 26 |
5.443-224.0 |
Hose stem |
|
| 27 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 28 |
5.427-432.0 |
Manifold |
|
| 29 |
6.414-141.0 |
Strainer |
|
| 30 |
7.303-086.0 |
Screw 5x30 -10.9-R2R (K-In6Rd) |
|
| 31 |
5.061-319.0 |
Housing electric box |
|
| 32 |
5.263-092.0 |
Tensioning part |
|
| 32 |
5.263-091.0 |
Tensioning part |
|
| 33 |
5.365-181.0 |
Profile gasket |
|
| 34 |
6.303-153.0 |
Screw M5x15-ST-R2R (IN6RD) |
|
| 35 |
4.828-010.0 |
Interference suppressor complete |
|
| 35 |
6.661-283.0 |
Interference suppressor triple-pole |
|
| 36 |
5.802-261.0 |
Mounting part |
|
| 37 |
6.641-270.0 |
Plug |
|
| 38 |
7.303-106.0 |
Screw 4x12 -10.9-R2R (IN6RD) |
|
| 39 |
6.632-334.0 |
Power contactor LC1 D32 B7 |
|
| 40 |
2.885-054.0 |
Frame circuit board complete |
|
| 41 |
5.064-226.0 |
Cover electric box |
|
| 42 |
6.643-151.0 |
Strip terminal one-pole 16mm? |
|
| 43 |
7.303-057.0 |
Countersunk screw M4x8 -St-A2R (In6Rd) |
|
| 44 |
7.312-163.0 |
Toothed lock washer A4,3-FST-PH DIN 679 |
|
| 45 |
7.311-001.0 |
Hexagon nut M4 -8-A2E ISO 4032 |
|
| 46 |
6.649-384.0 |
Cable 2x0,35 350mm |
|
