Karcher (Керхер) Мотор (0.112-642.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

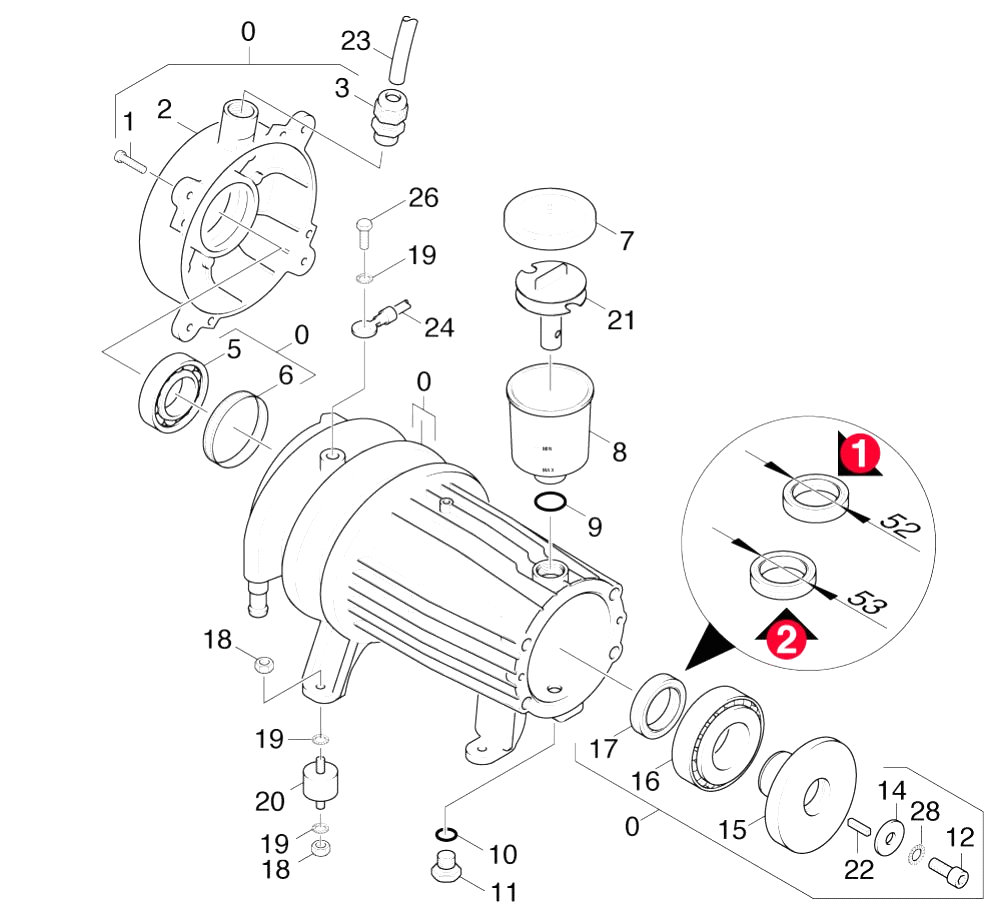

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.623-477.0	Motor complete
0	4.623-756.0	Motor complete
1	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
2	5.063-452.0	Cover
3	6.641-356.0	Cable gland PG16
5	6.401-253.0	Ball bearing 6305-2Z
6	6.343-010.0	Tolerance ring 62x10
7	5.063-189.0	Cover
8	5.411-100.0	Screw plug
8	5.070-048.0	Box
9	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
9	6.362-168.0	O-Ring seal 22,3 X 2,4-NBR 70
10	5.767-005.0	Rubber buffer
10	6.363-273.0	O-Ring seal 11,0 x 2,0
11	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
11	5.411-100.0	Screw plug
12	6.401-405.0	Taper roller bearing
12	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
13	4.120-233.0	Wobble plate complete only for replaceme
14	5.115-565.0	Washer
15	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
15	5.120-235.0	Wobble plate
16	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
16	6.401-225.0	Taper roller bearing 41
17	7.318-032.0	Parallel key 6x6x32-C45R DIN 6885
17	7.367-005.0	Radial shaft seal ring A35x53x7-NBR DIN
17	7.367-009.0	Radial shaft seal ring A35x52x7-NBR DIN
18	5.061-186.0	Bearing cover B
18	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
19	5.600-087.0	Blower wheel
19	7.312-166.0	Toothed lock washer A8,4-FSt-A3E DIN 67
20	6.339-060.0	Rubber buffer M8
21	5.030-389.0	Moulded part
22	7.318-035.0	Parallel key 8x7x25 -C45R DIN 6885-1
23	6.642-011.0	Insulating hose 10
24	4.820-430.0	Cable green/yellow 1,5mm?x450mm
30	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
31	5.061-319.0	Housing electric box
32	5.263-089.0	Tensioning part
33	5.365-285.0	Profile gasket
34	6.303-153.0	Screw M5x15-ST-R2R (IN6RD)
36	5.802-261.0	Mounting part
37	6.641-270.0	Plug
38	7.303-106.0	Screw 4x12 -10.9-R2R (IN6RD)
39	4.632-002.0	Contactor -nur fuer Ersatz-
40	2.885-054.0	Frame circuit board complete
41	5.064-226.0	Cover electric box
43	6.661-290.0	Capacitor 30 mF
44	6.661-298.0	Capacitor 40µf
