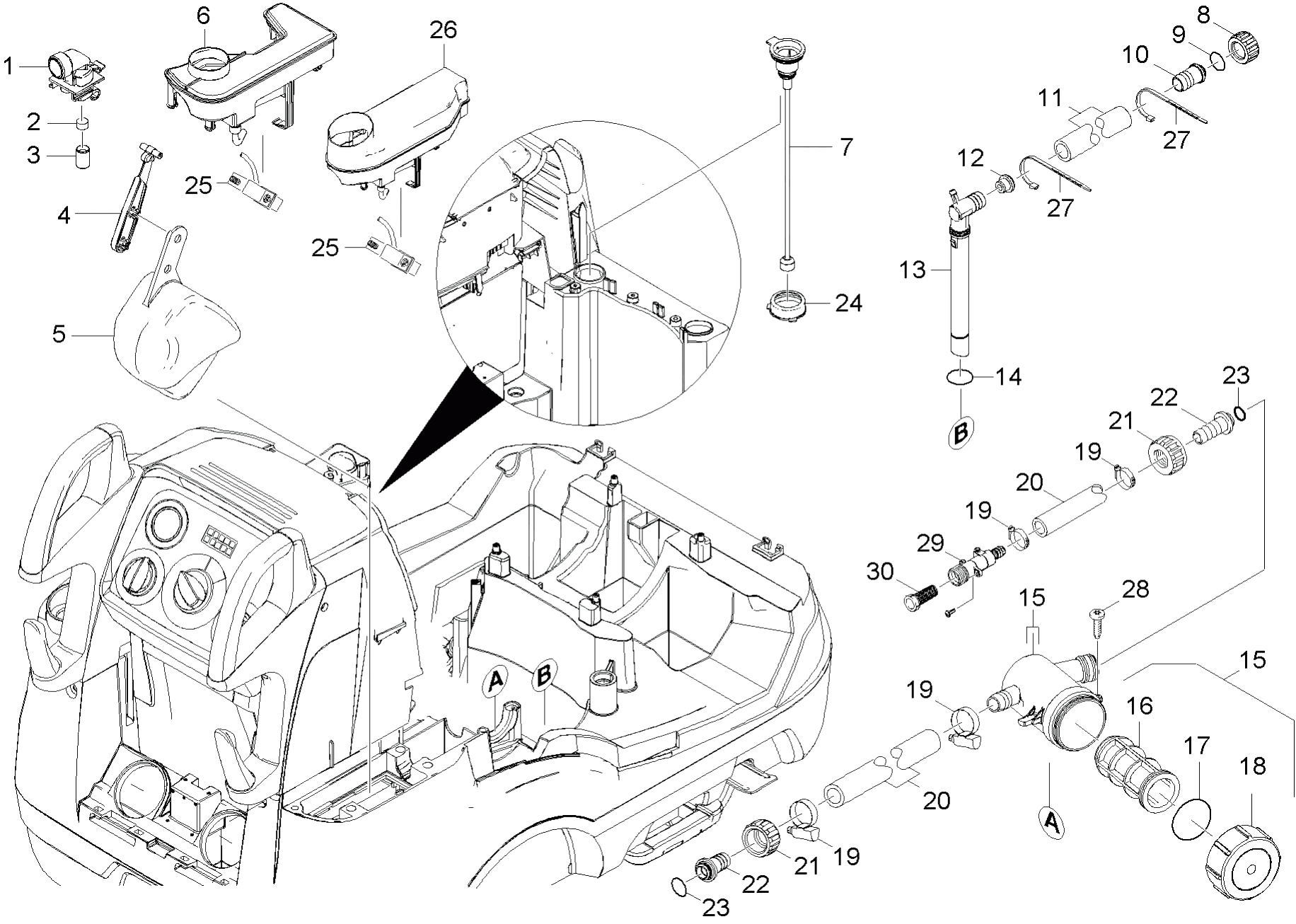

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.587-214.0 | Valve housing | |
| 2 | 5.364-095.0 | Flat gasket | |
| 3 | 5.584-085.0 | Valve pin | |
| 4 | 5.481-256.0 | Lever | |
| 5 | 5.585-030.0 | Float | |
| 6 | 4.070-658.0 | Tank complete | |
| 7 | 4.747-097.0 | Level probe -nur f?r Ersatz- | |
| 8 | 5.310-062.0 | Nut | |
| 10 | 5.443-312.0 | Hose stem | |
| 11 | 6.391-612.0 | Piece of tube only for replacement | |
| 12 | 5.112-193.0 | Bush | |
| 13 | 5.443-553.0 | Connection piece | |
| 14 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 15 | 4.730-124.0 | Filter complete | |
| 16 | 6.414-681.0 | Filter cartridge | |
| 17 | 5.363-613.0 | Seal | |
| 18 | 5.064-107.0 | Cover | |
| 19 | 7.373-022.0 | Hose clip A-16-27x9 -W2-2 DIN3017 | |
| 20 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 21 | 5.310-061.0 | """Nut R 3/4"""" """ | |
| 22 | 5.443-224.0 | Hose stem | |
| 23 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 24 | 5.365-289.0 | Rubber bushing transmitter feeder | |
| 25 | 4.686-030.0 | Solenoid valve only for replacement | |
| 26 | 4.070-905.0 | Tank only for replacement | |
| 27 | 6.641-474.0 | Cable tape 8-210 | |
| 28 | 5.110-863.0 | Sleeve | |
| 28 | 7.303-108.0 | Screw 5x20 -10.9-R2R (In6Rd) | |
| 29 | 6.362-427.0 | O-Ring seal 15,0x2,0 | |
| 29 | 5.427-432.0 | Manifold | |
| 30 | 4.580-581.0 | Valve complete | |
| 31 | 6.362-853.0 | O-Ring seal 4,47x1,78 | |
| 32 | 5.402-705.0 | Joining piece | |
| 33 | 6.363-037.0 | O-Ring seal complete 1ST.-R. | |
| 34 | 4.553-197.0 | Piston complete only for replacement | |
| 35 | 5.115-796.0 | Washer | |
| 36 | 5.332-268.0 | Helical spring | |
| 37 | 5.411-148.0 | Screw plug | |
| 38 | 5.367-030.0 | Diaphragm | |
| 39 | 5.034-494.0 | Retaining bracket | |
| 40 | 4.580-594.0 | Valve complete | |
| 41 | 4.744-225.0 | Switch complete | |
| 42 | 4.744-224.0 | Switch complete | |
| 43 | 5.411-504.0 | Screw plug | |
| 44 | 6.362-176.0 | O-Ring seal 6,07x1,78 | |
| 45 | 6.362-079.0 | O-Ring seal 18,0 X 2,5 | |
| 46 | 5.581-239.0 | Valve seat | |
| 47 | 6.362-386.0 | O-Ring seal 5,0 x 1,5-NBR 80 | |
| 100 | 2.885-036.0 | Spare part set pump |
