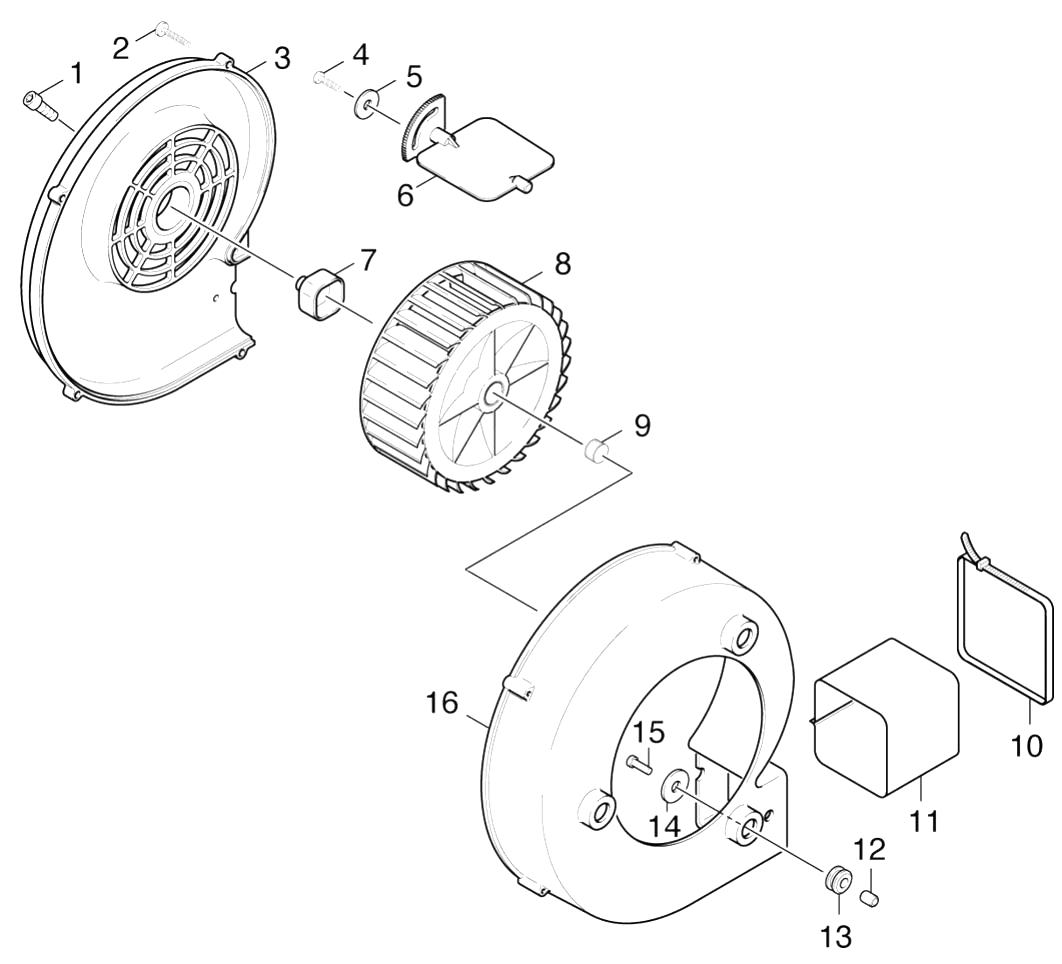

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 7.306-090.0 | Screw M6x16 -8.8-R3R (In6Rd) | |
| 2 | 7.303-084.0 | Screw 4x25 -10.9-R2R (K-In6Rd) | |
| 3 | 5.063-274.0 | Cover | |
| 4 | 7.303-077.0 | Sheet metal screw ST4,8X16-ST-A2R (IN6R | |
| 5 | 7.312-278.0 | Washer 5-200HV-A2E ISO7093-1 | |
| 6 | 5.606-002.0 | Air flap | |
| 7 | 5.471-060.0 | Coupling element | |
| 8 | 5.600-021.0 | Impeller | |
| 9 | 6.343-166.0 | Tolerance ring D14X8 | |
| 10 | 6.388-608.0 | Tightening strap | |
| 11 | 5.178-028.0 | Cloth collar | |
| 12 | 5.110-306.0 | Sleeve | |
| 13 | 5.379-011.0 | Rubber ring | |
| 14 | 7.312-264.0 | Washer 5-100HV-A3E ISO 7094 | |
| 15 | 6.303-320.0 | Screw M 5x 20-St-R2R | |
| 16 | 5.605-143.0 | Housing |
