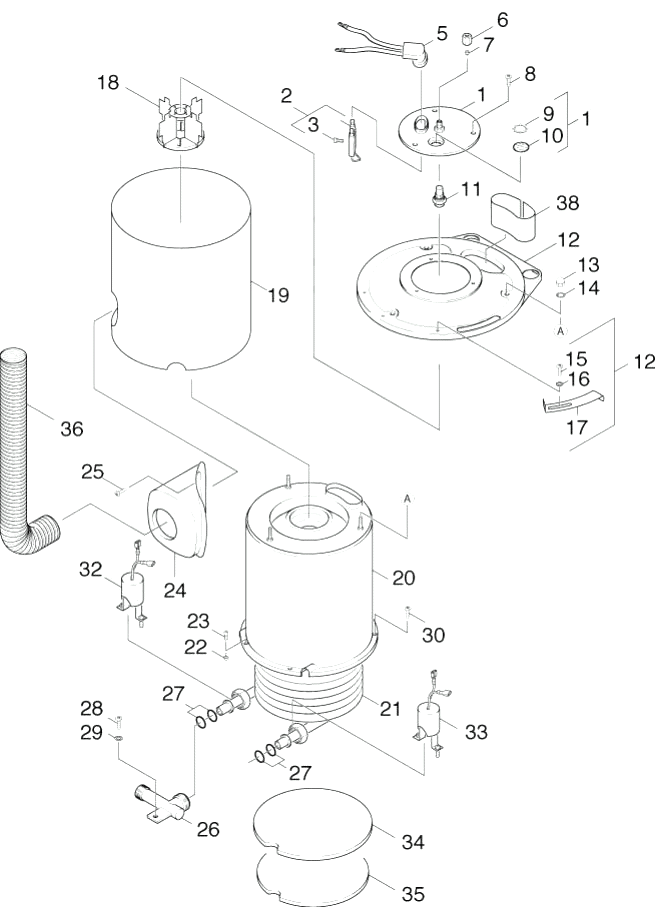

Karcher (Керхер) Проточный нагреватель (0.131-242.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.624-058.0 |
Motor complete only for replacement |
|
| 1 |
7.303-069.0 |
Screw M 8x25-ST-R3R (IN6RD) |
|
| 1 |
6.303-515.0 |
Self-tapping screw M6x25 |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
4.403-002.0 |
Coupler |
|
| 1 |
5.322-103.0 |
Handle |
|
| 1 |
7.303-240.0 |
Screw M5x40-ST-A2E (IN6RD) |
|
| 2 |
5.321-830.0 |
Sliding handle left |
|
| 2 |
6.401-253.0 |
Ball bearing 6305-2Z |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 2 |
4.622-038.0 |
Ignition transformer only for replacemen |
|
| 3 |
5.321-831.0 |
Sliding handle right |
|
| 3 |
6.343-010.0 |
Tolerance ring 62x10 |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
7.307-017.0 |
Threaded pin M5x40 -St-45H-A2E ISO 4026 |
|
| 3 |
6.278-018.0 |
Glass pane |
|
| 4 |
7.303-209.0 |
Screw 6x50 -10.9-R2R (K-In6Rd) |
|
| 4 |
5.304-070.0 |
Hexagonal head screw |
|
| 4 |
6.343-165.0 |
Serrated ring |
|
| 5 |
5.064-459.0 |
Cover grey |
|
| 5 |
5.501-083.0 |
Hinge cover black |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
7.401-931.0 |
Sphere 5 Kl3 -1.4401 DIN 5401 |
|
| 5 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 6 |
4.070-904.0 |
Tank only for replacement |
|
| 6 |
5.317-779.0 |
Bolt hinge black |
|
| 6 |
5.582-121.0 |
Valve disc |
|
| 6 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 7 |
6.362-722.0 |
O-Ring seal 28,0 X 3,0 |
|
| 7 |
5.317-291.0 |
Bolt |
|
| 7 |
4.037-013.0 |
Hook |
|
| 7 |
5.404-082.0 |
Hollow screw |
|
| 7 |
4.654-288.0 |
Cover pressure boiler only for replaceme |
|
| 8 |
5.411-100.0 |
Screw plug |
|
| 8 |
4.066-420.0 |
Device cover complete |
|
| 8 |
5.110-596.0 |
Sleeve |
|
| 8 |
6.964-534.0 |
Hose assembly DN8 40MPa 0,46m |
|
| 8 |
4.066-426.0 |
Device cover complete only for replaceme |
|
| 8 |
4.440-796.0 |
Hose SDS |
|
| 8 |
5.667-055.0 |
Nozzle holder |
|
| 9 |
6.362-458.0 |
O-Ring seal 11,0x2,0-NBR 70 |
|
| 9 |
7.303-086.0 |
Screw 5x30 -10.9-R2R (K-In6Rd) |
|
| 9 |
5.332-444.0 |
Helical spring |
|
| 9 |
7.312-304.0 |
Spring washer B 5-FST-A2E DIN 137 |
|
| 10 |
5.767-005.0 |
Rubber buffer |
|
| 10 |
5.033-381.0 |
Profile |
|
| 10 |
5.584-114.0 |
Valve pin |
|
| 11 |
6.415-679.0 |
Nozzle fuel |
|
| 11 |
7.367-009.0 |
Radial shaft seal ring A35x52x7-NBR DIN |
|
| 11 |
7.303-106.0 |
Screw 4x12 -10.9-R2R (IN6RD) |
|
| 11 |
5.311-204.0 |
Hexagon nut M22x1,5 |
|
| 12 |
6.401-405.0 |
Taper roller bearing |
|
| 12 |
4.553-326.0 |
Piston complete only for replacement |
|
| 12 |
4.553-198.0 |
Piston complete only for replacement |
|
| 13 |
7.311-380.0 |
Cap nut M6 -6-A2E DIN 1587 |
|
| 13 |
4.120-234.0 |
Wobble plate complete only for replaceme |
|
| 13 |
5.033-929.0 |
Covering cap DGT |
|
| 13 |
6.363-489.0 |
O-Ring seal 5,28x1,78 |
|
| 13 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 14 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 14 |
5.115-565.0 |
Washer |
|
| 14 |
5.332-236.0 |
Helical spring |
|
| 14 |
6.362-725.0 |
Supportring |
|
| 15 |
7.303-031.0 |
Screw M4x10 -St-P2R (In6Rd) |
|
| 15 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 15 |
5.317-765.0 |
Bolt closure cover |
|
| 16 |
7.312-293.0 |
Washer 4-A2 ISO 7093-1 |
|
| 16 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 16 |
5.424-162.0 |
Fixing jet pipe |
|
| 17 |
7.318-030.0 |
Parallel key 6x6x25 -C45R DIN 6885-1 |
|
| 17 |
5.314-143.0 |
Pin fixing jet pipe |
|
| 18 |
4.663-089.0 |
Burner cage |
|
| 18 |
5.061-186.0 |
Bearing cover B |
|
| 18 |
6.303-497.0 |
Screw M8x35-8.8-A2E (IN6RD) |
|
| 18 |
5.583-146.0 |
Valve screw |
|
| 19 |
5.600-087.0 |
Blower wheel |
|
| 19 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 19 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 20 |
4.653-013.0 |
Inside jacket |
|
| 20 |
7.312-261.0 |
Washer 8 -100HV-A3E ISO 7094 |
|
| 20 |
6.362-377.0 |
O-Ring seal 38,0 X 2,0-NBR 70 |
|
| 20 |
2.885-139.0 |
Valve (3Stueck) |
|
| 20 |
2.884-512.0 |
Valve (3 Stueck) |
|
| 21 |
4.680-100.0 |
Нагревательный змеевик |
|
| 21 |
6.303-517.0 |
Self-tapping screw M6x100 |
|
| 21 |
5.425-495.0 |
CONNECTION PIECE DGT |
|
| 21 |
6.363-003.0 |
O-Ring seal 13,0 X 2,0-NBR 90 |
|
| 22 |
7.311-573.0 |
Square nut M5 -05-A2E DIN 557 |
|
| 22 |
7.312-260.0 |
Washer 6 -100HV-A3E ISO 7094 |
|
| 22 |
2.885-055.0 |
Circuit board |
|
| 22 |
4.551-012.0 |
Cylinder head complete replacement |
|
| 22 |
4.550-888.0 |
Cylinder head complete |
|
| 23 |
7.306-011.0 |
Cylinder head screw M 5x12-8.8-A2E DIN |
|
| 23 |
5.379-019.0 |
Rubber ring |
|
| 23 |
5.044-889.0 |
Holder circuit board |
|
| 23 |
6.363-536.0 |
O-Ring seal 21x1,5 |
|
| 24 |
5.605-376.0 |
Blower cover |
|
| 24 |
5.033-155.0 |
Flap |
|
| 24 |
5.427-416.0 |
Manifold water intake |
|
| 25 |
7.303-061.0 |
Screw ST2,9x9,5 -St-R2R (In6Rd) |
|
| 25 |
5.692-088.0 |
Air circulation |
|
| 25 |
5.033-113.0 |
Flap |
|
| 25 |
7.306-043.0 |
Cylinder head screw M8x30 -8.8-A2E ISO |
|
| 26 |
5.427-165.0 |
Manifold |
|
| 26 |
5.190-254.0 |
Strip cover |
|
| 26 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 27 |
6.362-820.0 |
O-Ring seal complete |
|
| 27 |
5.190-253.0 |
Strip boiler |
|
| 27 |
6.362-703.0 |
O-Ring seal 6,0x1,5-NBR 70 |
|
| 28 |
7.303-049.0 |
Screw M6x25-ST-A3R (IN6RD) |
|
| 28 |
5.317-220.0 |
Bolt |
|
| 28 |
5.110-863.0 |
Sleeve |
|
| 29 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 29 |
5.033-112.0 |
Storage compartment |
|
| 29 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
| 30 |
7.303-071.0 |
Sheet metal screw ST4,2X9,5 -St-A2K (In |
|
| 30 |
5.412-015.0 |
Closure cover |
|
| 30 |
4.580-773.0 |
Valve complete |
|
| 30 |
2.882-691.0 |
Conversion kit holder small Kessel |
|
| 30 |
4.580-581.0 |
Valve complete |
|
| 31 |
6.431-274.0 |
Tackle cover |
|
| 31 |
6.362-853.0 |
O-Ring seal 4,47x1,78 |
|
| 32 |
6.685-935.0 |
Thermostat 70G |
|
| 32 |
5.802-288.0 |
Mounting part |
|
| 32 |
5.402-705.0 |
Joining piece |
|
| 33 |
4.070-658.0 |
Tank complete |
|
| 33 |
6.362-718.0 |
O-Ring seal complete |
|
| 33 |
6.363-037.0 |
O-Ring seal complete 1ST.-R. |
|
| 34 |
6.286-224.0 |
Insulating |
|
| 34 |
5.767-024.0 |
Rubber buffer |
|
| 34 |
4.553-327.0 |
Piston complete for replacement |
|
| 34 |
4.553-197.0 |
Piston complete only for replacement |
|
| 35 |
6.286-267.0 |
Insulating |
|
| 35 |
5.762-409.0 |
Bracket |
|
| 35 |
5.115-796.0 |
Washer |
|
| 36 |
6.389-535.0 |
Air hose |
|
| 36 |
6.704-006.0 |
Pump DGT |
|
| 36 |
5.332-268.0 |
Helical spring |
|
| 37 |
5.411-148.0 |
Screw plug |
|
| 38 |
5.046-650.0 |
Chimney muff |
|
| 38 |
5.367-030.0 |
Diaphragm |
|
| 39 |
5.034-494.0 |
Retaining bracket |
|
| 41 |
4.744-225.0 |
Switch complete |
|
| 42 |
4.744-224.0 |
Switch complete |
|
| 45 |
6.362-079.0 |
O-Ring seal 18,0 X 2,5 |
|
| 46 |
5.581-239.0 |
Valve seat |
|
| 47 |
6.362-386.0 |
O-Ring seal 5,0 x 1,5-NBR 80 |
|
