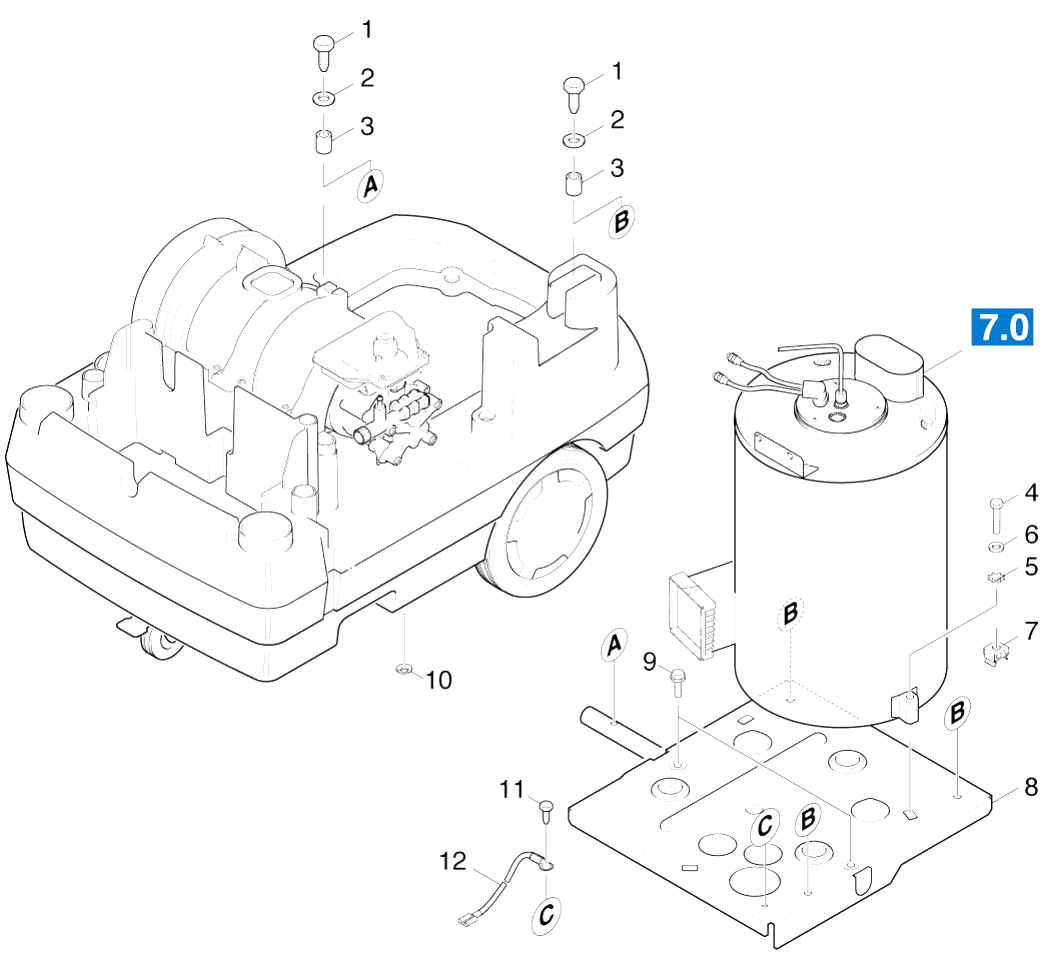

Karcher (Керхер) Монтажные детали (0.131-560.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
6.303-191.0 |
Screw M8x30-ST-A2R DIN 7500-1 |
|
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
4.069-013.0 |
Cover neutrally only for replacement |
|
| 1 |
4.403-002.0 |
Coupler |
|
| 1 |
5.411-171.0 |
Screw plug |
|
| 2 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 2 |
5.321-206.0 |
Handhold few |
|
| 2 |
5.321-751.0 |
Handhold |
|
| 2 |
6.362-480.0 |
O-Ring seal 12,42x 1,78 |
|
| 3 |
5.110-760.0 |
Sleeve |
|
| 3 |
4.481-050.0 |
Lever |
|
| 3 |
5.107-291.0 |
Bar shearing shackle HDS upright U |
|
| 3 |
5.107-292.0 |
Bar shearing shackle HDS Upright UX |
|
| 3 |
4.769-034.0 |
Nozzle insert only for replacement |
|
| 4 |
7.304-097.0 |
Hexagonal head screw M8x70-8.8-A2E ISO |
|
| 4 |
5.481-052.0 |
Lever |
|
| 4 |
5.044-216.0 |
Holder |
|
| 4 |
5.044-987.0 |
Holder jet pipe |
|
| 4 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 4 |
5.584-091.0 |
Valve pin check valve |
|
| 5 |
7.312-166.0 |
Toothed lock washer A8,4-FSt-A3E DIN 67 |
|
| 5 |
5.411-067.0 |
Screw plug |
|
| 5 |
5.065-732.0 |
Rear panel HDS upright |
|
| 5 |
7.303-129.0 |
Screw 4x16 -10.9-R2R (K-In6Rd) |
|
| 5 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 6 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 6 |
5.332-157.0 |
Helical spring |
|
| 6 |
5.033-556.0 |
Chassis HDS upright |
|
| 6 |
5.411-067.0 |
Screw plug |
|
| 6 |
5.411-172.0 |
Screw plug |
|
| 7 |
6.310-081.0 |
Cage nut M 8 |
|
| 7 |
5.582-058.0 |
Valve disc |
|
| 7 |
5.105-649.0 |
Wheel axle HDS upright |
|
| 7 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 7 |
6.362-989.0 |
O-Ring seal 18x2 - NBR 80 |
|
| 8 |
5.050-111.0 |
Frame |
|
| 8 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 8 |
4.515-255.0 |
Колесо |
|
| 8 |
5.332-157.0 |
Helical spring |
|
| 8 |
4.591-038.0 |
Overflow valve |
|
| 9 |
6.303-031.0 |
Screw M8x16-ST-A2R DIN 7500-1 |
|
| 9 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 9 |
5.392-035.0 |
Wheel cap |
|
| 9 |
5.582-058.0 |
Valve disc |
|
| 9 |
5.731-588.0 |
Filter housing |
|
| 10 |
6.343-161.0 |
Lock washer |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
5.057-062.0 |
Support |
|
| 10 |
5.064-354.0 |
Cover water intake |
|
| 11 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 11 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 11 |
5.515-351.0 |
Roller hose guide |
|
| 11 |
4.880-069.0 |
Spare part O-ring kit |
|
| 11 |
5.363-336.0 |
Seal |
|
| 12 |
4.822-098.0 |
Cable green/yellow 2,5mm?x900mm |
|
| 12 |
4.427-179.0 |
Manifold |
|
| 12 |
5.071-215.0 |
Tank fuel HDS upright |
|
| 12 |
5.731-587.0 |
Water filter |
|
| 13 |
5.031-259.0 |
Moulded part |
|
| 13 |
4.645-315.0 |
Cover tank only for replacement |
|
| 13 |
5.363-545.0 |
Seal |
|
| 14 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 14 |
7.303-047.0 |
Screw M6x16 -St-R3R (In6Rd) |
|
| 14 |
5.322-083.0 |
Handhold few extended Low End |
|
| 14 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 15 |
5.321-691.0 |
Handhold few jet pipe |
|
| 15 |
4.649-044.0 |
Cable with plug nur f?r Ersatz |
|
| 15 |
5.031-259.0 |
Moulded part |
|
| 15 |
5.064-383.0 |
Suction cover |
|
| 16 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 16 |
5.481-052.0 |
Lever |
|
| 16 |
7.306-105.0 |
Screw M6x30 -8.8-R3R (In6Rd) |
|
| 17 |
6.389-853.0 |
Hose assembly standard DN6 25MPa 10m |
|
| 17 |
6.363-565.0 |
O-Ring seal 60x4 |
|
| 17 |
6.391-417.0 |
Hose assembly standard DN6 25MPa 15m |
|
| 17 |
4.744-242.0 |
Switch kpl. -nur f?r Ersatz- |
|
| 18 |
5.731-039.0 |
Filter |
|
| 18 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 18 |
5.034-494.0 |
Retaining bracket |
|
| 19 |
6.343-162.0 |
Lock washer -25 |
|
| 19 |
6.391-238.0 |
High pressure hose DN6-10m |
|
| 19 |
6.362-533.0 |
O-Ring seal 14,0 X 1,5-NBR 70 |
|
| 20 |
5.044-646.0 |
Holder roller front |
|
| 20 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 21 |
5.515-191.0 |
Roller |
|
| 21 |
5.550-372.0 |
Cylinder head |
|
| 22 |
5.128-511.0 |
Axle |
|
| 22 |
2.885-220.0 |
Spare part set control piston |
|
| 23 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 24 |
7.303-171.0 |
Screw 5x80 -10.9-R2R (K-In6Rd) |
|
