Karcher (Керхер) Монтажная деталь (0.131-168.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

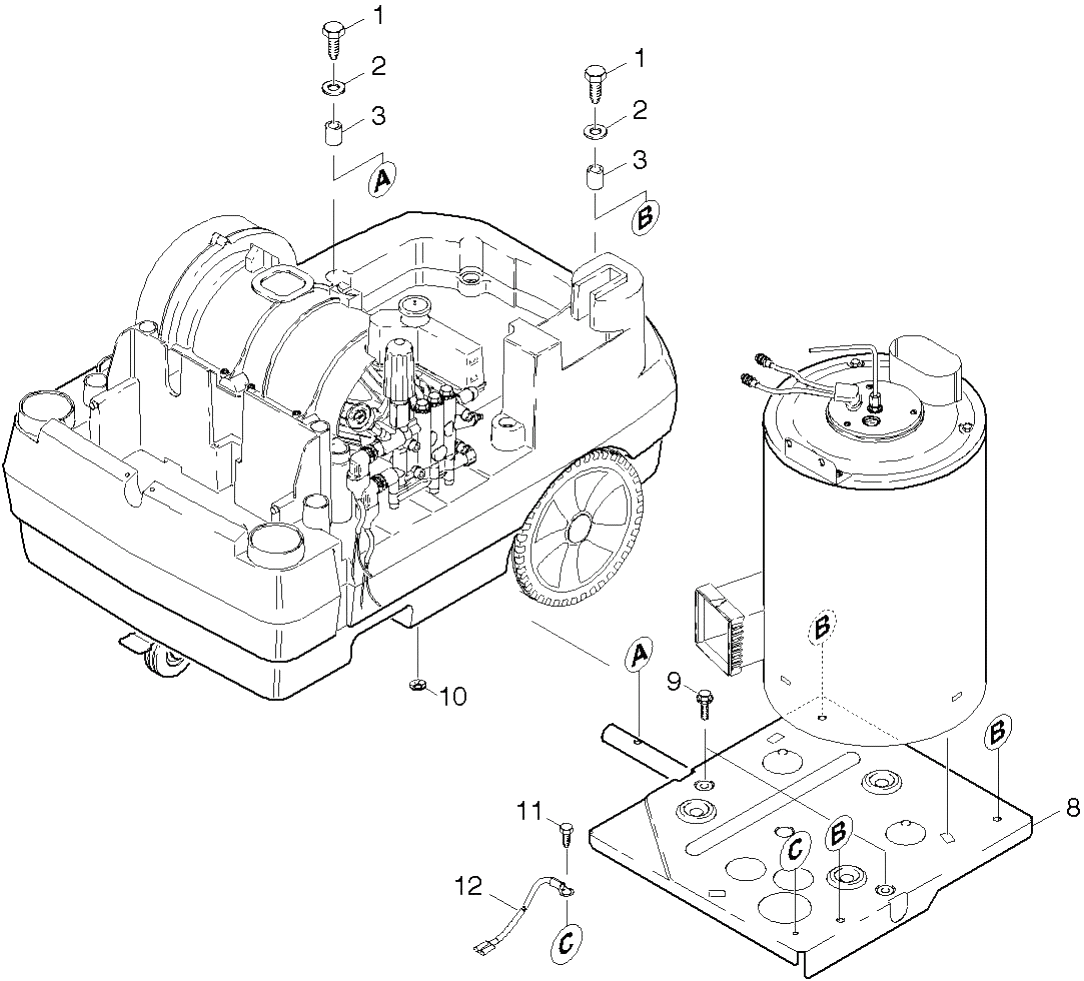

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.303-191.0	Screw M8x30-ST-A2R DIN 7500-1
2	5.093-041.0	Bearing cover B
2	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
3	6.303-320.0	Screw M 5x 20-St-R2R
3	5.110-760.0	Sleeve
4	6.288-050.0	Engine oil 1L
4	6.288-219.0	Engine oil 1 L
5	5.064-367.0	Cover oil
5	5.063-389.0	Крышка
6	5.070-521.0	Tank oil
7	6.362-161.0	O-Ring seal 19,3 X 2,4
8	5.050-111.0	Frame
8	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
9	6.303-031.0	Screw M8x16-ST-A2R DIN 7500-1
9	6.363-273.0	O-Ring seal 11,0 x 2,0
10	6.343-161.0	Lock washer
10	5.411-100.0	Screw plug
11	7.303-037.0	Screw M5x10 -St-P2R (In6Rd)
12	4.822-102.0	Cable green/yellow 1,5mm?x830mm
12	6.401-331.0	Ball bearing
13	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
13	7.306-042.0	Cylinder head screw M8x25 -8.8-A2E ISO4
14	7.313-004.0	Spring washer B 8-FSt-A3E DIN 127
14	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
15	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
15	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
16	6.401-294.0	Wobble plate
16	4.120-186.0	Wobble plate complete
17	5.112-586.0	Bush
18	6.401-332.0	Angular contact ball bearing
19	6.367-047.0	Rotary shaft seal AS 25X35X7
24	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
26	7.303-031.0	Screw M4x10 -St-P2R (In6Rd)
