Karcher (Керхер) Крышка горелки (0.208-301.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

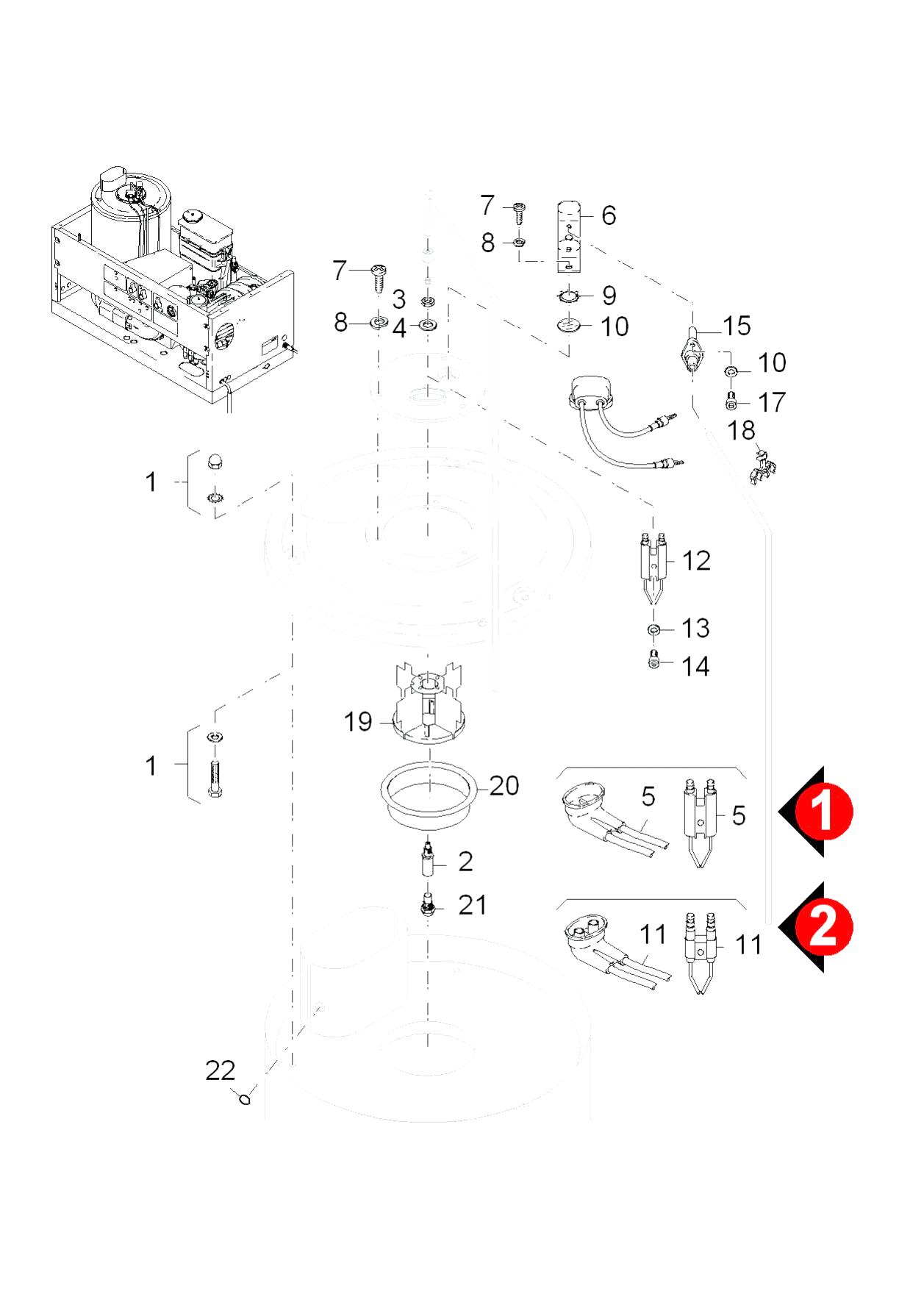

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.654-218.0	Cover pressure boiler
2	5.667-055.0	Nozzle holder
3	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
4	7.312-302.0	Spring washer B10-FST-A2E DIN 137
5	2.638-976.0	Conversion kit ignition cable
6	4.043-246.0	Holder
7	7.303-039.0	Screw M5x16 -St-A2R (In6Rd)
8	7.313-016.0	Spring washer B 5-1.4310 DIN 127
9	6.343-165.0	Serrated ring
10	6.278-018.0	Glass pane
12	2.638-974.0	Conversion kit ignition electrode
13	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
14	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
15	6.664-030.0	Probe
16	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
17	7.303-032.0	Screw M4x12 -St-R2R (In6Rd)
18	6.647-527.0	Holder
19	4.663-122.0	Burner cage
20	5.664-229.0	Burner part SB-C 3000/4000 72KW
21	6.415-530.0	Nozzle 60GRAD H
22	7.362-033.0	Joint ring A5,5x8 -Cu DIN 7603
50	6.310-082.0	Putting nut M6
51	5.017-819.0	Angle boiler Gas 9/16
52	7.311-068.0	Hexagon nut M 8-A2-70 ISO 4032
53	7.312-017.0	Washer 8-A2 ISO 7089
54	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
