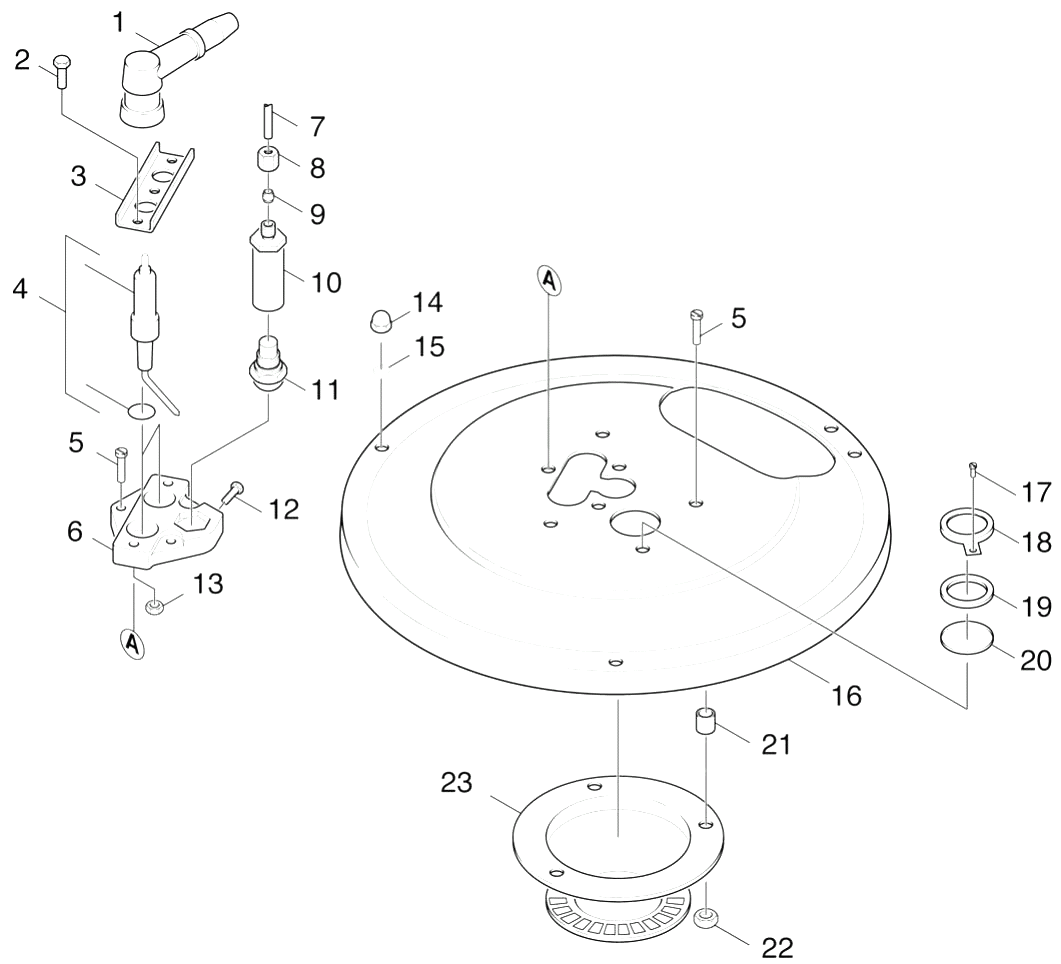

Karcher (Керхер) Крышка горелки (0.131-751.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.775-026.0 |
Hand trigger gun |
|
| 1 |
6.618-076.0 |
Spark plug connector |
|
| 1 |
5.471-076.0 |
Coupling element |
|
| 1 |
5.060-369.0 |
Housing thrust guidance |
|
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
4.050-327.0 |
Рамка комплектный |
|
| 2 |
7.309-019.0 |
Hexagonal head screw M 5x14-8.8-A2E TORX |
|
| 2 |
5.063-418.0 |
Cover A |
|
| 2 |
6.365-340.0 |
Grooved ring 14X22X5/7 |
|
| 2 |
5.321-174.0 |
Handhold few |
|
| 2 |
6.435-308.0 |
Wheel |
|
| 3 |
5.004-228.0 |
Strap |
|
| 3 |
6.288-050.0 |
Engine oil 1L |
|
| 3 |
5.115-466.0 |
Washer |
|
| 3 |
6.362-176.0 |
O-Ring seal 6,07x1,78 |
|
| 3 |
6.362-936.0 |
Spacer washer 6-32 |
|
| 3 |
5.004-541.0 |
Strap |
|
| 4 |
2.883-083.0 |
Spare part set |
|
| 4 |
4.120-154.0 |
Наклонная шайба |
|
| 4 |
5.115-465.0 |
Washer |
|
| 4 |
5.322-006.0 |
Hand wheel |
|
| 4 |
6.343-137.0 |
Quick-fastener |
|
| 4 |
5.826-047.0 |
Поджигающий электрод |
|
| 5 |
7.306-077.0 |
Screw M5x16 -8.8-R2R (In6Rd) |
|
| 5 |
6.401-141.0 |
Deep groove ball thrust bearing |
|
| 5 |
6.365-341.0 |
Grooved ring |
|
| 5 |
5.030-283.0 |
Moulded part |
|
| 5 |
6.435-116.0 |
Castor |
|
| 5 |
5.667-042.0 |
Nozzle holder |
|
| 6 |
5.668-001.0 |
Spark holder |
|
| 6 |
5.015-044.0 |
Ring |
|
| 6 |
5.553-118.0 |
Piston |
|
| 6 |
6.965-019.0 |
Screw |
|
| 6 |
6.415-520.0 |
Nozzle |
|
| 7 |
5.423-234.0 |
Conduit |
|
| 7 |
6.343-016.0 |
Tolerance ring 20X14 |
|
| 7 |
5.030-625.0 |
Moulded part |
|
| 7 |
6.362-477.0 |
O-Ring seal complete 1ST.-R. |
|
| 8 |
6.386-506.0 |
Union nut M8X1 |
|
| 8 |
6.401-142.0 |
Ball bearing 7305 B |
|
| 8 |
5.332-251.0 |
Helical spring |
|
| 8 |
5.107-062.0 |
Bar |
|
| 8 |
5.668-001.0 |
Spark holder |
|
| 9 |
6.386-505.0 |
Clamping ring D4 |
|
| 9 |
7.367-018.0 |
Radial shaft seal ring A26x37x7 -NBR DI |
|
| 9 |
5.553-231.0 |
Piston |
|
| 9 |
5.115-227.0 |
Washer |
|
| 9 |
6.965-012.0 |
"""Lock washer 1/4""""-vz """ |
|
| 9 |
7.311-037.0 |
Hexagon nut M 5-CU2 ISO 4032 |
|
| 10 |
6.310-100.0 |
Nut |
|
| 10 |
5.667-042.0 |
Nozzle holder |
|
| 10 |
6.362-097.0 |
O-Ring seal 85,0 X 3,0-NBR 70 |
|
| 10 |
5.110-618.0 |
Sleeve |
|
| 10 |
5.481-039.0 |
Lever |
|
| 10 |
6.343-165.0 |
Serrated ring |
|
| 11 |
6.415-099.0 |
Nozzle 2,0 80G H |
|
| 11 |
7.306-092.0 |
Screw M6x20-ST- 8.8-R3R (IN6RD) |
|
| 11 |
5.305-110.0 |
Shaped screw |
|
| 11 |
6.278-018.0 |
Glass pane |
|
| 12 |
7.306-443.0 |
Винт с цилиндрической головкой М4х12 |
|
| 12 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 12 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 12 |
4.654-133.0 |
Cover D.K. |
|
| 13 |
7.311-037.0 |
Hexagon nut M 5-CU2 ISO 4032 |
|
| 13 |
5.115-260.0 |
Washer |
|
| 13 |
7.303-078.0 |
Sheet metal screw ST4,8X19-ST-A2R (KOMBI |
|
| 14 |
7.311-380.0 |
Cap nut M6 -6-A2E DIN 1587 |
|
| 14 |
6.362-478.0 |
O-Ring seal 12,42X 1,78 |
|
| 14 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 15 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 15 |
5.332-140.0 |
Helical spring |
|
| 15 |
7.312-172.0 |
Toothed lock washer A5,3-FSt-A3E DIN 67 |
|
| 16 |
4.654-069.0 |
Cover pressure boiler |
|
| 16 |
4.581-049.0 |
Valve seat |
|
| 16 |
4.663-088.0 |
Burner cage |
|
| 17 |
7.303-136.0 |
Sheet metal screw ST3,5X 6,5-ST-R2R (IN |
|
| 17 |
5.110-348.0 |
Sleeve |
|
| 17 |
5.664-182.0 |
Burner part |
|
| 18 |
5.000-590.0 |
Plate |
|
| 18 |
6.362-479.0 |
O-Ring seal 7,59X 2,62 |
|
| 19 |
5.364-100.0 |
Flat gasket |
|
| 19 |
5.427-079.0 |
Manifold |
|
| 20 |
6.278-014.0 |
Glass pane |
|
| 20 |
6.362-496.0 |
O-Ring seal 17,12X 2,62-NBR 70 |
|
| 21 |
5.025-366.0 |
Tube |
|
| 21 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 21 |
6.965-015.0 |
"""Washer 1/4""""-vz """ |
|
| 21 |
5.378-100.0 |
Spacer |
|
| 22 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 22 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 23 |
4.663-026.0 |
Burner cage |
|
| 23 |
5.030-459.0 |
Moulded part |
|
| 24 |
5.365-068.0 |
Profile gasket |
|
| 25 |
6.366-009.0 |
Seal string |
|
| 26 |
2.889-061.0 |
Refractory material 8kg |
|
| 27 |
4.655-044.0 |
Bottom pressure boiler |
|
| 28 |
7.311-155.0 |
Hexagon nut M22x1,5 -Cu2 DIN 936 |
|
| 29 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 30 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 32 |
4.427-123.0 |
Manifold |
|
| 33 |
7.303-039.0 |
Screw M5x16 -St-A2R (In6Rd) |
|
| 34 |
4.680-127.0 |
Heating coil |
|
| 35 |
6.641-198.0 |
Ignition cable |
|
| 36 |
6.389-263.0 |
Cutting ring d.4 |
|
| 37 |
6.389-262.0 |
Union nut A 4-LL |
|
| 38 |
5.423-231.0 |
Conduit |
|
