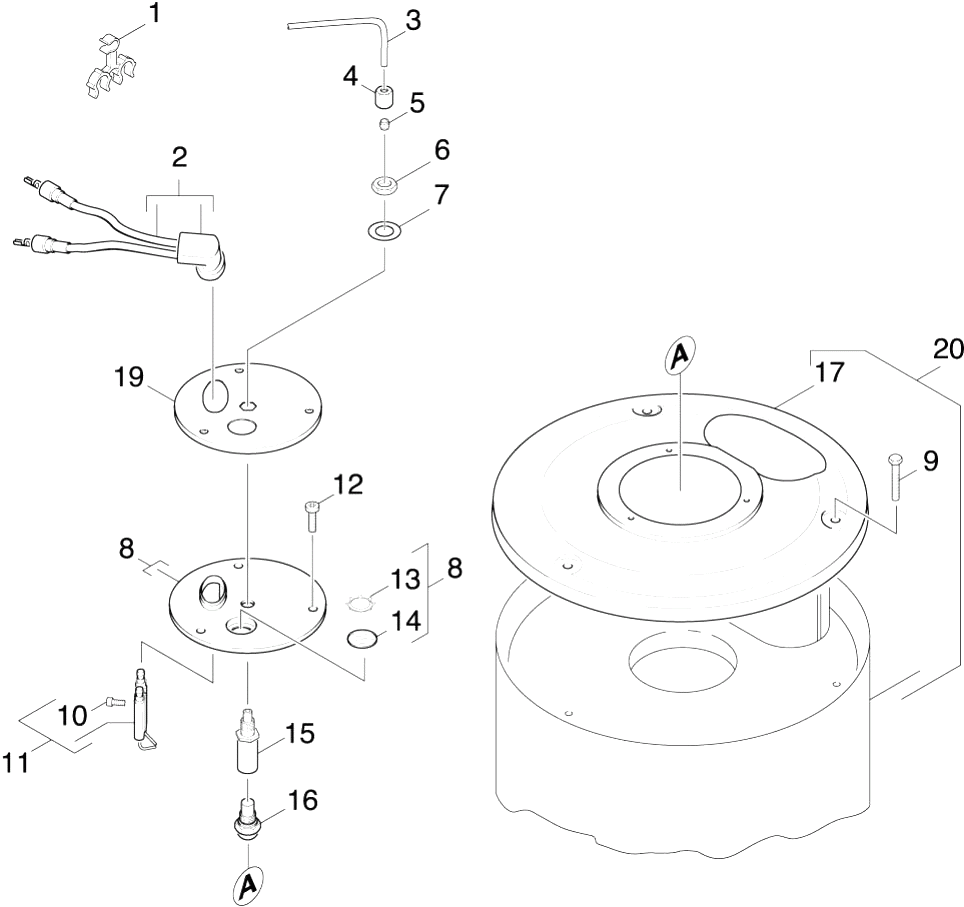

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.647-527.0 | Holder | |
| 1 | 5.585-004.0 | Float | |
| 1 | 4.403-002.0 | Coupler | |
| 1 | 6.389-768.0 | Hose clip | |
| 2 | 4.821-071.0 | IGNITION LEAD (HDS 557CI) | |
| 2 | 7.303-104.0 | Screw 5x16 -A2-70 (IN6RD) | |
| 2 | 6.389-534.0 | Hose | |
| 3 | 5.423-186.0 | Conduit fuel | |
| 3 | 7.312-282.0 | Washer 5 -A2 ISO 7093-1 | |
| 3 | 6.389-262.0 | Union nut A 4-LL | |
| 4 | 6.389-262.0 | Union nut A 4-LL | |
| 4 | 5.481-118.0 | Lever | |
| 4 | 6.389-263.0 | Cutting ring d.4 | |
| 5 | 6.389-263.0 | Cutting ring d.4 | |
| 5 | 5.587-147.0 | Valve housing | |
| 5 | 6.389-261.0 | Screw union | |
| 6 | 7.311-101.0 | Hexagon nut M10x1 -04-A2E ISO 8675 | |
| 6 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 7 | 7.312-302.0 | Spring washer B10-FST-A2E DIN 137 | |
| 7 | 5.443-285.0 | Hose stem | |
| 8 | 4.654-218.0 | Cover pressure boiler | |
| 8 | 5.310-062.0 | Nut | |
| 9 | 6.303-258.0 | Self-tapping screw | |
| 10 | 7.306-217.0 | Screw M5x14 -8.8-R2R (In6Rd) | |
| 10 | 5.364-095.0 | Flat gasket | |
| 11 | 2.638-974.0 | Conversion kit ignition electrode | |
| 11 | 5.584-085.0 | Valve pin | |
| 12 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 12 | 5.070-140.0 | Tank | |
| 13 | 6.343-165.0 | Serrated ring | |
| 13 | 7.373-022.0 | Hose clip A-16-27x9 -W2-2 DIN3017 | |
| 14 | 6.278-018.0 | Glass pane | |
| 14 | 6.392-256.0 | Piece of tube 19x4x430 | |
| 15 | 5.112-420.0 | Bush | |
| 15 | 5.667-055.0 | Nozzle holder | |
| 15 | 5.443-211.0 | Hose stem | |
| 16 | 5.115-538.0 | Washer | |
| 16 | 6.415-660.0 | Nozzle 1,25GPH-60G S-S | |
| 16 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 17 | 6.362-092.0 | O-Ring seal 36,0 X 2,0-NBR 70 | |
| 17 | 5.654-066.0 | Cover pressure boiler | |
| 17 | 5.427-154.0 | Manifold | |
| 18 | 6.365-330.0 | Grooved ring | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 19 | 4.550-607.0 | Cylinder head complete only for replacem | |
| 19 | 5.654-059.0 | Cover pressure boiler | |
| 20 | 7.306-155.0 | Cylinder head screw M12x100 -8.8-A3E IS | |
| 20 | 4.652-123.0 | Outer covering | |
| 20 | 5.112-286.0 | Bush | |
| 21 | 6.288-016.0 | Gear oil 1L | |
| 21 | 4.730-127.0 | Water filter | |
| 22 | 6.414-141.0 | Strainer | |
| 23 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 24 | 5.443-291.0 | Hose stem | |
| 25 | 5.310-076.0 | Nut | |
| 26 | 5.363-545.0 | Seal | |
| 27 | 5.363-336.0 | Seal | |
| 28 | 5.731-587.0 | Water filter |
