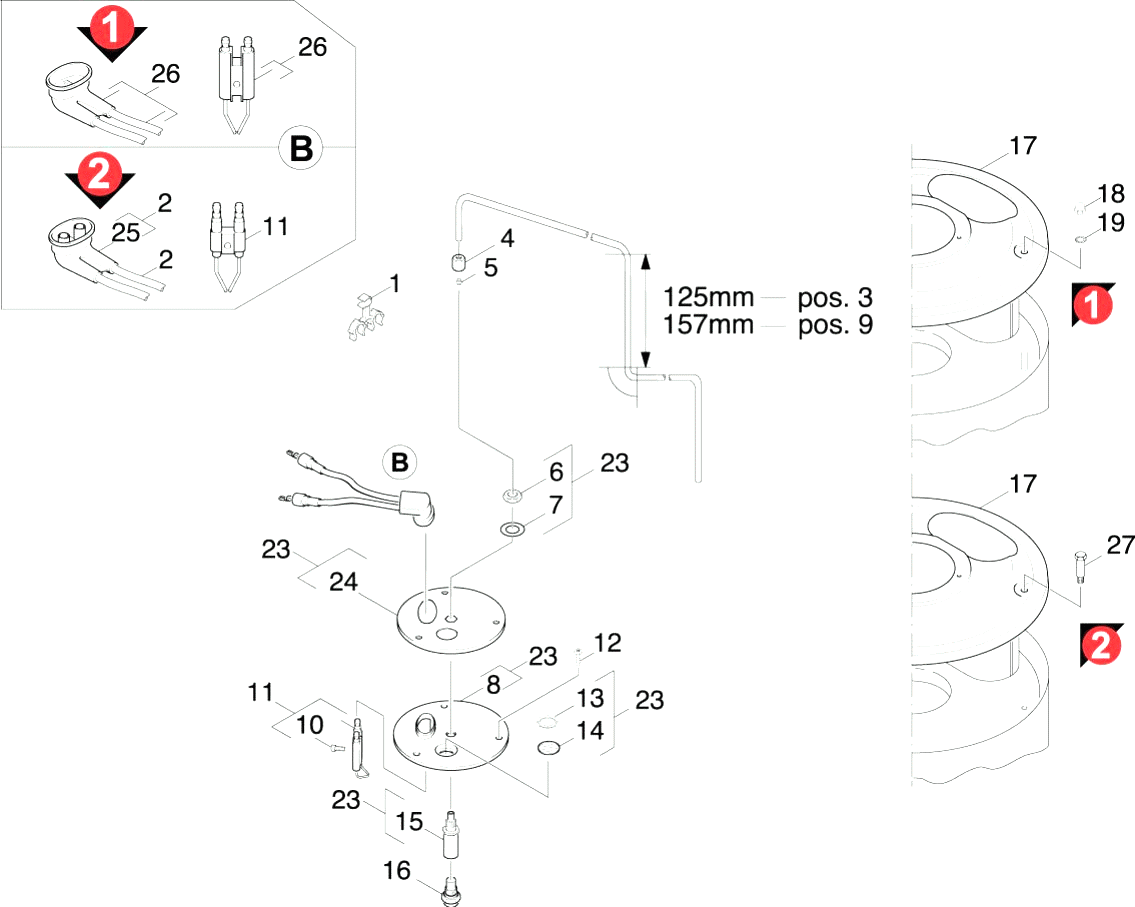

Karcher (Керхер) Крышка горелки (0.131-698.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
6.647-527.0 |
Holder |
|
| 1 |
6.389-567.0 |
Hose clip |
|
| 2 |
5.321-297.0 |
Handhold few |
|
| 2 |
4.821-071.0 |
IGNITION LEAD (HDS 557CI) |
|
| 2 |
6.389-534.0 |
Hose |
|
| 3 |
4.481-056.0 |
Lever |
|
| 3 |
5.423-186.0 |
Conduit fuel |
|
| 3 |
6.389-262.0 |
Union nut A 4-LL |
|
| 4 |
5.481-088.0 |
Lever |
|
| 4 |
6.389-262.0 |
Union nut A 4-LL |
|
| 4 |
6.389-263.0 |
Cutting ring d.4 |
|
| 5 |
6.389-263.0 |
Cutting ring d.4 |
|
| 5 |
6.389-261.0 |
Screw union |
|
| 6 |
4.553-139.0 |
Piston complete |
|
| 6 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 7 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 7 |
6.362-855.0 |
O-Ring seal 56,0 X 4,0 |
|
| 8 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 8 |
5.662-022.0 |
Burner cover |
|
| 8 |
4.421-187.0 |
Pipelines |
|
| 9 |
5.107-097.0 |
Bar |
|
| 9 |
5.423-187.0 |
Conduit fuel |
|
| 9 |
6.647-235.0 |
Sealing cable |
|
| 10 |
6.362-664.0 |
O-Ring seal 1,1 X 1,78 -NBR 90 |
|
| 10 |
7.306-217.0 |
Screw M5x14 -8.8-R2R (In6Rd) |
|
| 10 |
6.647-234.0 |
Contact |
|
| 11 |
5.581-244.0 |
Valve seat |
|
| 11 |
2.638-974.0 |
Conversion kit ignition electrode |
|
| 11 |
6.472-927.0 |
Hose stem only for replacement |
|
| 12 |
5.582-089.0 |
Valve disc |
|
| 12 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 13 |
5.332-254.0 |
Helical spring |
|
| 13 |
6.343-165.0 |
Serrated ring |
|
| 14 |
5.115-444.0 |
Washer |
|
| 14 |
6.278-018.0 |
Glass pane |
|
| 15 |
6.362-467.0 |
O-Ring seal complete 1ST.-R. |
|
| 15 |
5.667-055.0 |
Nozzle holder |
|
| 16 |
6.362-673.0 |
O-Ring seal 14,0 X 1,78 |
|
| 16 |
6.415-641.0 |
Nozzle |
|
| 17 |
5.411-080.0 |
Screw plug |
|
| 17 |
5.654-066.0 |
Cover pressure boiler |
|
| 18 |
7.311-380.0 |
Cap nut M6 -6-A2E DIN 1587 |
|
| 19 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 19 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 20 |
5.115-527.0 |
Washer |
|
| 21 |
5.321-405.0 |
Handhold sleeve |
|
| 22 |
6.362-428.0 |
O-Ring seal 26,0 X 1,5 -NBR 70 |
|
| 23 |
6.362-522.0 |
O-Ring seal 24,0 X 2,0 |
|
| 23 |
2.882-392.0 |
Conversion kit burner cover |
|
| 24 |
5.384-013.0 |
Inspection glass |
|
| 24 |
5.654-059.0 |
Cover pressure boiler |
|
| 25 |
5.060-439.0 |
Housing |
|
| 25 |
5.394-470.0 |
Protecting cap |
|
| 26 |
7.343-482.0 |
Snap ring A24-1.4310 DIN 7993 |
|
| 26 |
2.638-976.0 |
Conversion kit ignition cable |
|
| 27 |
6.362-559.0 |
O-Ring seal 18,77X 1,78 |
|
| 27 |
6.303-258.0 |
Self-tapping screw |
|
| 28 |
6.391-351.0 |
Hose assembly only for replacement DN8 4 |
|
| 29 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
