Karcher (Керхер) Крышка горелки (0.131-679.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

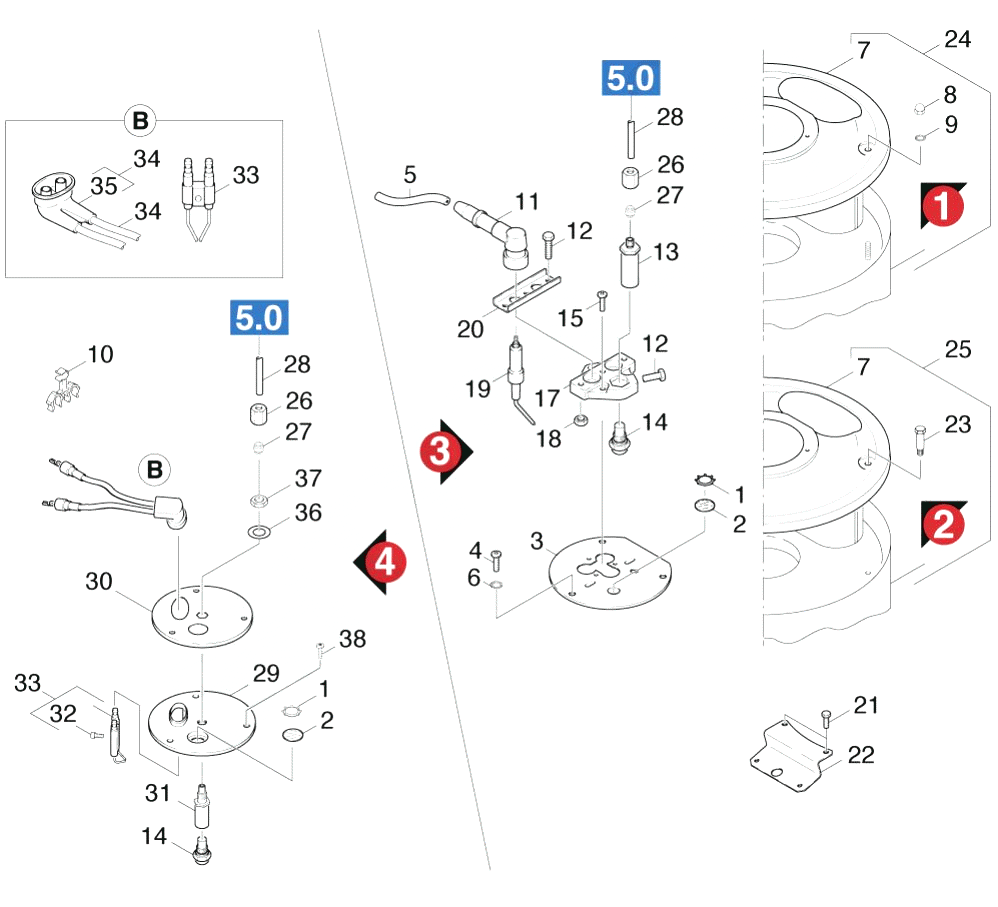

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.343-165.0	Serrated ring
2	6.278-018.0	Glass pane
3	5.654-055.0	Cover D.K.
4	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
5	6.641-198.0	Ignition cable
6	7.312-172.0	Toothed lock washer A5,3-FSt-A3E DIN 67
7	4.654-196.0	Cover pressure boiler
8	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
9	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
10	6.647-527.0	Holder
11	6.618-076.0	Spark plug connector
12	7.309-019.0	Hexagonal head screw M 5x14-8.8-A2E TORX
13	5.667-042.0	Nozzle holder
14	6.362-478.0	O-Ring seal 12,42X 1,78
14	6.415-520.0	Nozzle
15	5.332-140.0	Helical spring
15	7.303-039.0	Screw M5x16 -St-A2R (In6Rd)
16	4.581-049.0	Valve seat
17	5.110-348.0	Sleeve
17	5.668-001.0	Spark holder
18	6.362-479.0	O-Ring seal 7,59X 2,62
18	7.311-037.0	Hexagon nut M 5-CU2 ISO 4032
19	5.427-079.0	Manifold
19	5.826-047.0	Поджигающий электрод
20	6.362-496.0	O-Ring seal 17,12X 2,62-NBR 70
20	5.004-541.0	Strap
21	6.303-025.0	Oval head screw 4,2x16-St-vz
21	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
22	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
22	5.030-985.0	Moulded part
23	5.030-459.0	Moulded part
23	6.303-258.0	Self-tapping screw
25	4.652-112.0	Outer covering
26	5.443-224.0	Hose stem
26	6.389-262.0	Union nut A 4-LL
27	6.389-263.0	Cutting ring d.4
28	5.427-178.0	Manifold
28	5.423-098.0	Conduit
29	6.303-174.0	Screw 6,0X20-ST-A2R
29	5.662-022.0	Burner cover
30	6.414-282.0	Strainer
30	5.654-059.0	Cover pressure boiler
31	5.063-369.0	Cover
31	5.667-055.0	Nozzle holder
32	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
33	2.638-974.0	Conversion kit ignition electrode
34	4.821-071.0	IGNITION LEAD (HDS 557CI)
35	5.394-470.0	Protecting cap
36	7.312-302.0	Spring washer B10-FST-A2E DIN 137
37	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
