Karcher (Керхер) Крышка горелки (0.131-668.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

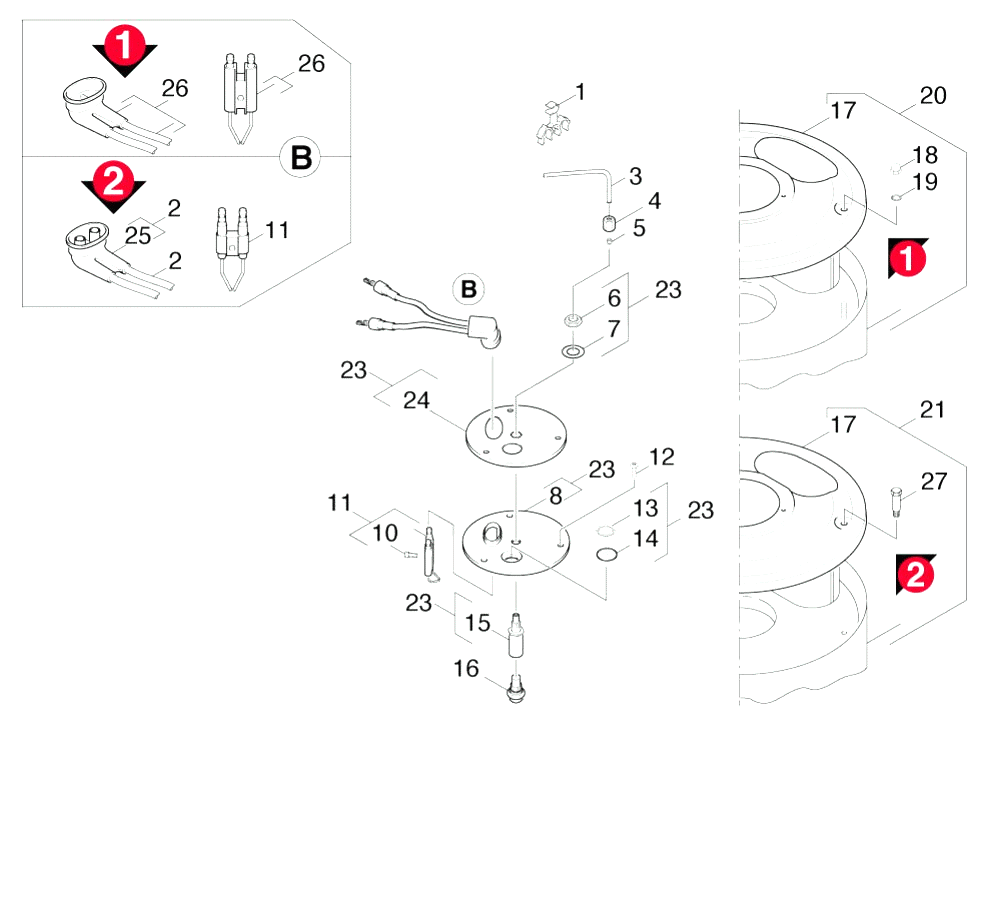

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.647-527.0	Holder
1	6.389-567.0	Hose clip
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
2	6.389-534.0	Hose
3	5.423-186.0	Conduit fuel
3	6.389-262.0	Union nut A 4-LL
4	6.389-262.0	Union nut A 4-LL
4	6.389-263.0	Cutting ring d.4
5	6.389-263.0	Cutting ring d.4
5	6.389-261.0	Screw union
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	6.362-855.0	O-Ring seal 56,0 X 4,0
8	5.662-022.0	Burner cover
8	4.421-187.0	Pipelines
9	6.647-235.0	Sealing cable
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
10	6.647-234.0	Contact
11	5.581-244.0	Valve seat
11	2.638-974.0	Conversion kit ignition electrode
11	6.472-927.0	Hose stem only for replacement
12	5.582-089.0	Valve disc
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
13	5.332-254.0	Helical spring
13	6.343-165.0	Serrated ring
14	5.115-444.0	Washer
14	6.278-018.0	Glass pane
15	6.362-467.0	O-Ring seal complete 1ST.-R.
15	5.667-055.0	Nozzle holder
16	6.362-673.0	O-Ring seal 14,0 X 1,78
16	6.415-660.0	Nozzle 1,25GPH-60G S-S
17	5.411-080.0	Screw plug
17	5.654-066.0	Cover pressure boiler
18	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
19	6.362-161.0	O-Ring seal 19,3 X 2,4
19	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
20	5.115-527.0	Washer
21	5.321-405.0	Handhold sleeve
21	4.652-123.0	Outer covering
22	6.362-428.0	O-Ring seal 26,0 X 1,5 -NBR 70
23	6.362-522.0	O-Ring seal 24,0 X 2,0
23	2.882-392.0	Conversion kit burner cover
24	5.384-013.0	Inspection glass
24	5.654-059.0	Cover pressure boiler
25	5.060-439.0	Housing
25	5.394-470.0	Protecting cap
26	7.343-482.0	Snap ring A24-1.4310 DIN 7993
26	2.638-976.0	Conversion kit ignition cable
27	6.362-559.0	O-Ring seal 18,77X 1,78
27	6.303-258.0	Self-tapping screw
28	6.391-351.0	Hose assembly only for replacement DN8 4
29	4.363-691.0	O-Ring seal kpl. -nur fuer Ersatz-
