Karcher (Керхер) Крышка горелки (0.131-666.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

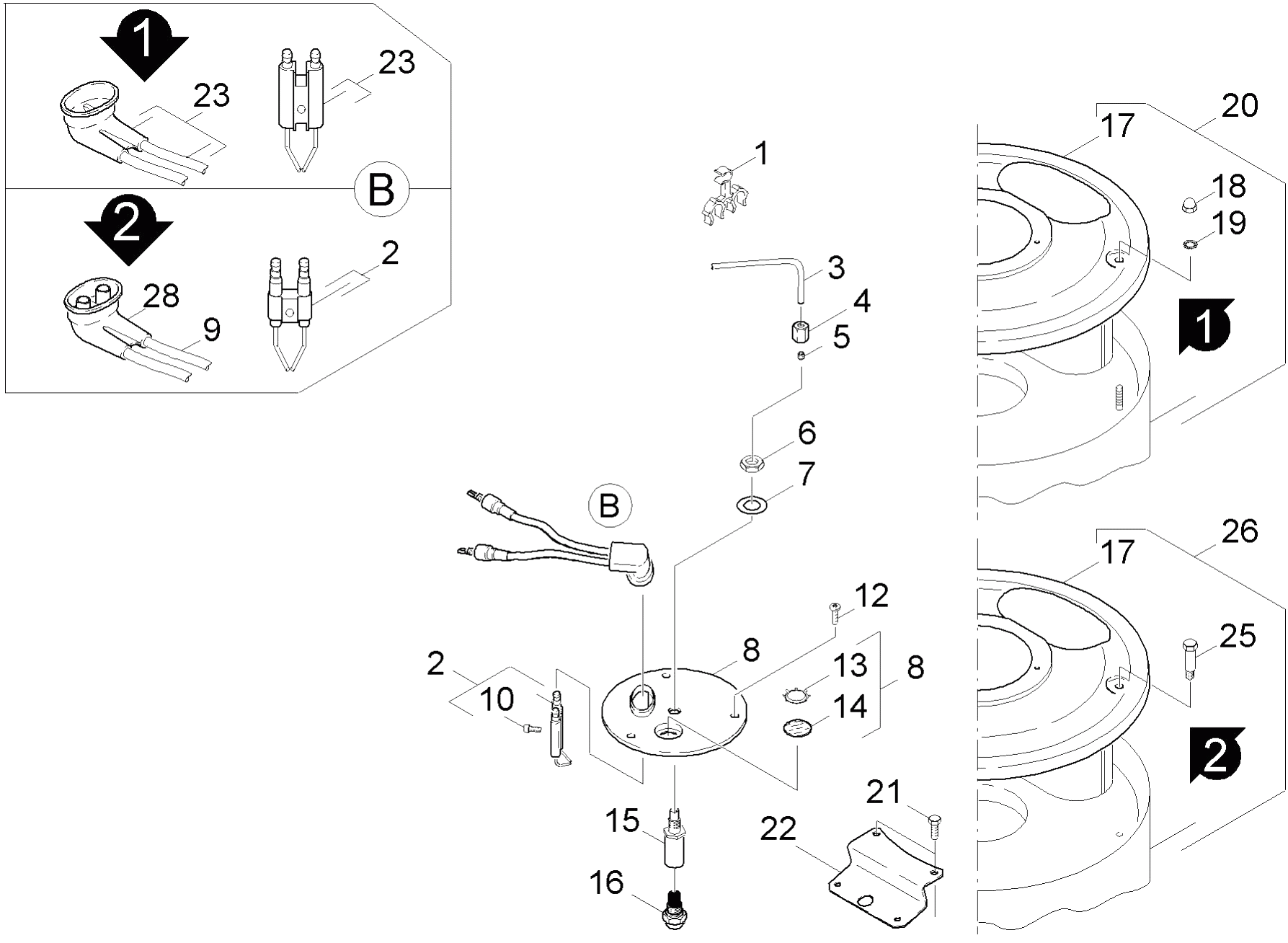

REF.	АРТИКУЛ	ОПИСАНИЕ
0	6.472-925.0	Pump oil burner only for replacement
1	6.647-527.0	Holder
1	6.472-107.0	Screw ventilation
2	2.638-974.0	Conversion kit ignition electrode
2	6.472-106.0	O-Ring seal 5,0 X 1,8
3	5.423-140.0	Conduit
3	6.472-111.0	O-Ring seal 32,0 X 1,6
4	6.389-262.0	Union nut A 4-LL
4	6.472-112.0	O-Ring seal 10,0 x 2,4 NBR 70
5	6.389-263.0	Cutting ring d.4
5	6.472-113.0	Filter cartridge
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	6.472-123.0	Filter housing complete
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	6.472-122.0	Protecting cap
8	4.654-218.0	Cover pressure boiler
8	6.472-109.0	Housing spring
9	4.821-071.0	IGNITION LEAD (HDS 557CI)
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
10	6.472-108.0	Pin
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
12	6.472-128.0	Diaphragm
13	6.343-165.0	Serrated ring
14	6.278-018.0	Glass pane
14	6.472-340.0	Knurled nut
15	5.667-055.0	Nozzle holder
16	6.415-520.0	Nozzle
17	4.654-196.0	Cover pressure boiler
17	6.472-125.0	O-Ring seal 12,0 X 1,5
18	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
18	6.472-411.0	Solenoid valve
19	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
19	6.472-120.0	O-Ring seal 28,5 X 1,6
21	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
22	5.030-985.0	Moulded part
22	6.472-105.0	Seal axle
23	2.638-976.0	Conversion kit ignition cable
25	6.303-258.0	Self-tapping screw
26	4.652-112.0	Outer covering
28	5.394-470.0	Protecting cap
