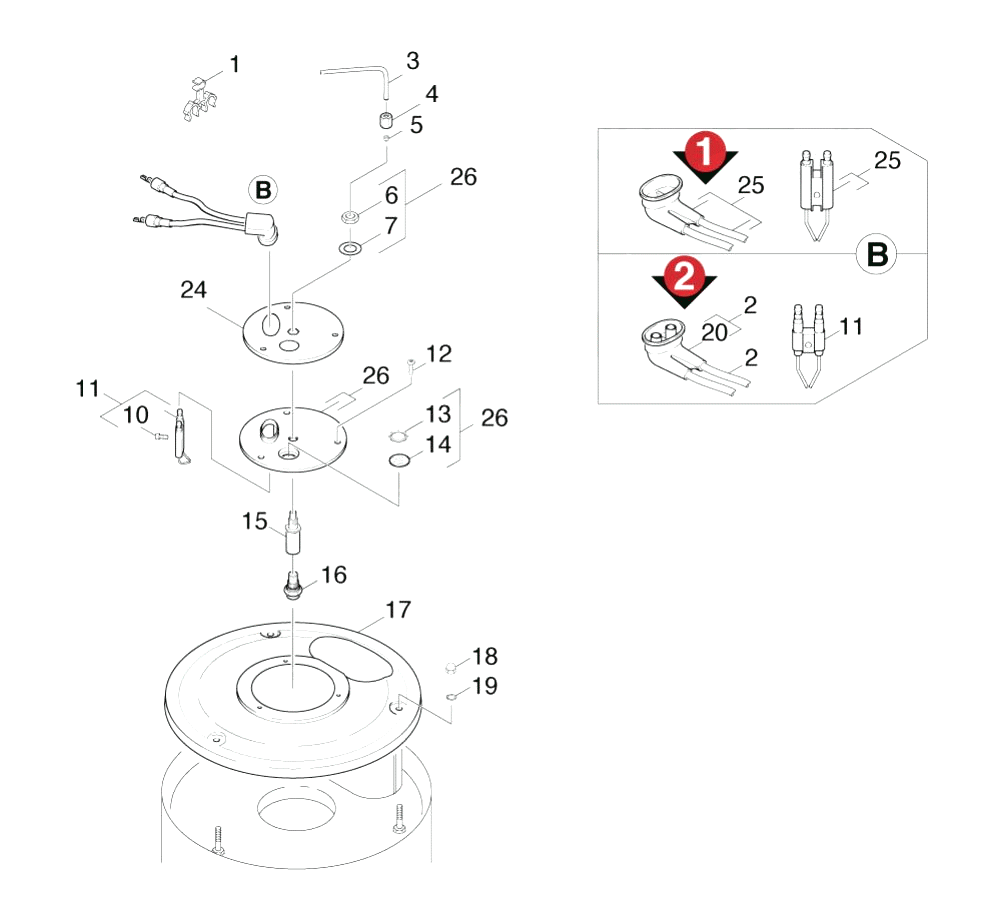

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.647-527.0 | Holder | |
| 2 | 4.821-071.0 | IGNITION LEAD (HDS 557CI) | |
| 3 | 5.423-187.0 | Conduit fuel | |
| 4 | 6.389-262.0 | Union nut A 4-LL | |
| 5 | 5.030-283.0 | Moulded part | |
| 5 | 6.389-263.0 | Cutting ring d.4 | |
| 6 | 5.553-118.0 | Piston | |
| 6 | 7.311-101.0 | Hexagon nut M10x1 -04-A2E ISO 8675 | |
| 7 | 6.362-477.0 | O-Ring seal complete 1ST.-R. | |
| 7 | 7.312-302.0 | Spring washer B10-FST-A2E DIN 137 | |
| 8 | 5.310-062.0 | Nut | |
| 8 | 5.107-062.0 | Bar | |
| 9 | 6.388-547.0 | Hose clip | |
| 9 | 5.115-227.0 | Washer | |
| 10 | 5.364-095.0 | Flat gasket | |
| 10 | 5.481-039.0 | Lever | |
| 10 | 7.306-217.0 | Screw M5x14 -8.8-R2R (In6Rd) | |
| 11 | 5.584-085.0 | Valve pin | |
| 11 | 5.305-110.0 | Shaped screw | |
| 11 | 2.638-974.0 | Conversion kit ignition electrode | |
| 12 | 5.070-140.0 | Tank | |
| 12 | 6.362-468.0 | O-Ring seal complete 1ST.-R. | |
| 12 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 13 | 6.388-548.0 | Hose clip | |
| 13 | 5.115-260.0 | Washer | |
| 13 | 6.343-165.0 | Serrated ring | |
| 14 | 6.392-256.0 | Piece of tube 19x4x430 | |
| 14 | 6.362-478.0 | O-Ring seal 12,42X 1,78 | |
| 14 | 6.278-018.0 | Glass pane | |
| 15 | 5.443-211.0 | Hose stem | |
| 15 | 5.332-140.0 | Helical spring | |
| 15 | 5.667-055.0 | Nozzle holder | |
| 16 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 16 | 4.581-049.0 | Valve seat | |
| 16 | 6.415-651.0 | Nozzle -2,0GPH 60G. P | |
| 17 | 5.427-154.0 | Manifold | |
| 17 | 5.110-348.0 | Sleeve | |
| 17 | 5.654-046.0 | Cover pressure boiler | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 18 | 6.362-479.0 | O-Ring seal 7,59X 2,62 | |
| 18 | 7.311-380.0 | Cap nut M6 -6-A2E DIN 1587 | |
| 19 | 5.427-079.0 | Manifold | |
| 19 | 7.312-167.0 | Toothed lock washer A6,4-FSt-A3E DIN 67 | |
| 20 | 5.112-286.0 | Bush | |
| 20 | 6.362-496.0 | O-Ring seal 17,12X 2,62-NBR 70 | |
| 20 | 5.394-470.0 | Protecting cap | |
| 21 | 6.303-025.0 | Oval head screw 4,2x16-St-vz | |
| 22 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 23 | 5.030-459.0 | Moulded part | |
| 24 | 5.654-059.0 | Cover pressure boiler | |
| 25 | 2.638-976.0 | Conversion kit ignition cable | |
| 26 | 4.654-218.0 | Cover pressure boiler |
