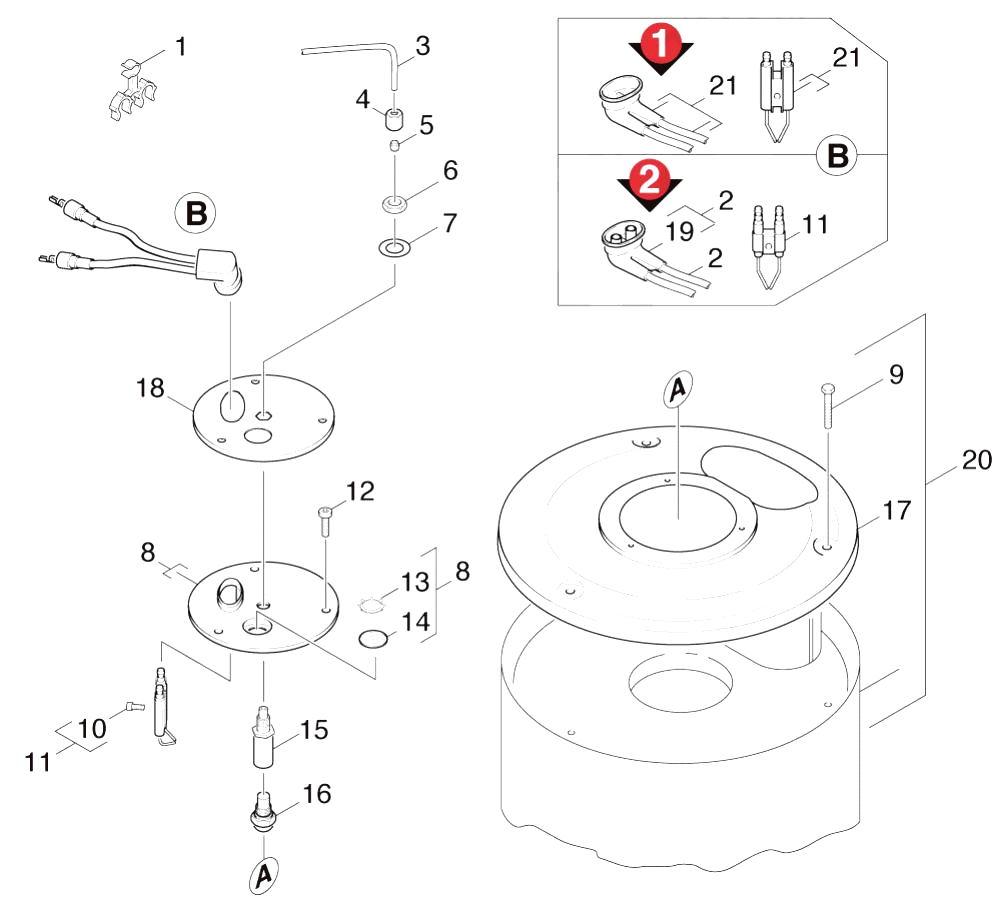

Karcher (Керхер) Крышка горелки (0.131-609.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.647-527.0	Holder
1	6.389-768.0	Hose clip
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
2	6.389-534.0	Hose
3	5.423-186.0	Conduit fuel
3	6.389-262.0	Union nut A 4-LL
4	6.389-262.0	Union nut A 4-LL
4	6.389-263.0	Cutting ring d.4
5	6.389-263.0	Cutting ring d.4
5	6.389-261.0	Screw union
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	6.362-855.0	O-Ring seal 56,0 X 4,0
8	4.654-218.0	Cover pressure boiler
8	4.421-631.0	Pipelines BR.ST.
9	6.303-258.0	Self-tapping screw
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
10	6.472-927.0	Hose stem only for replacement
11	2.638-974.0	Conversion kit ignition electrode
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
13	6.343-165.0	Serrated ring
14	6.278-018.0	Glass pane
15	5.667-055.0	Nozzle holder
16	6.415-761.0	Nozzle 1,25 GPH 45 G ES
17	5.654-066.0	Cover pressure boiler
18	5.654-059.0	Cover pressure boiler
19	5.427-079.0	Manifold
19	5.394-470.0	Protecting cap
20	6.362-496.0	O-Ring seal 17,12X 2,62-NBR 70
20	4.652-123.0	Outer covering
21	6.303-025.0	Oval head screw 4,2x16-St-vz
21	2.638-976.0	Conversion kit ignition cable
22	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
23	5.030-459.0	Moulded part
