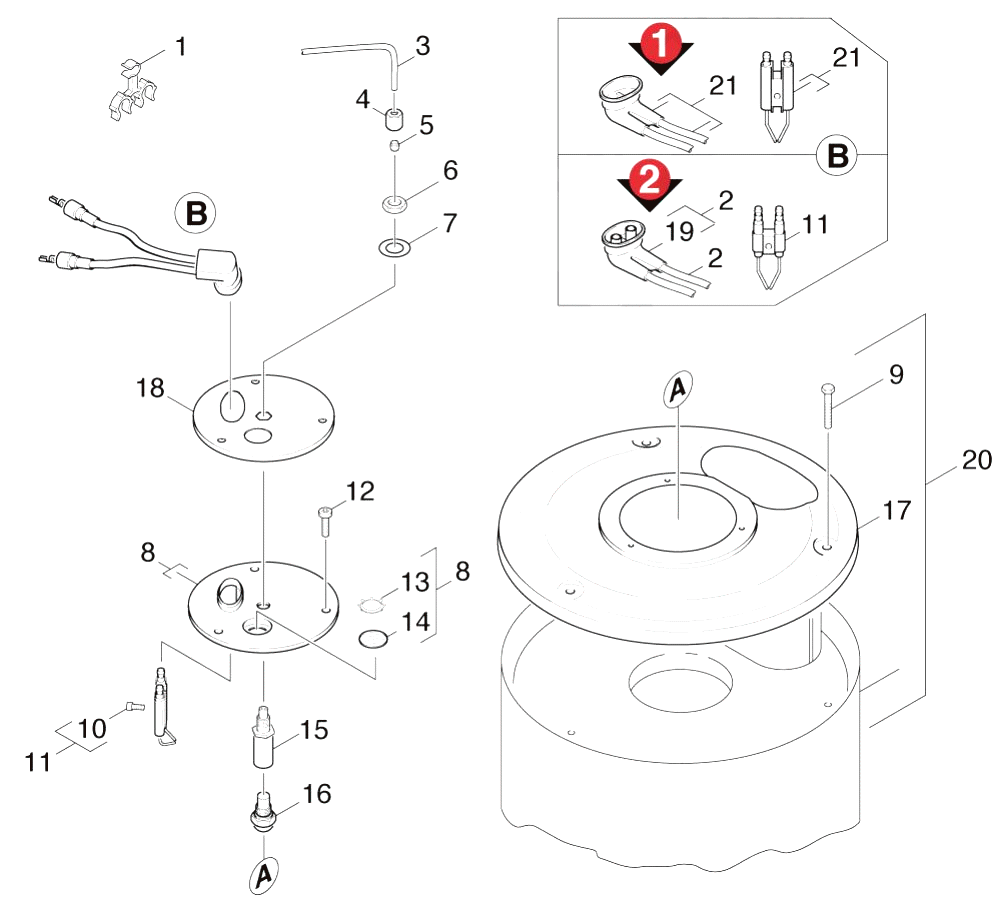

Karcher (Керхер) Крышка горелки (0.131-586.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.647-527.0	Holder
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
3	5.423-186.0	Conduit fuel
4	6.368-076.0	Ornamental hub cap D10/D12
4	6.389-262.0	Union nut A 4-LL
5	7.306-058.0	Screw M 4X 12- 8.8-R2R K-IN6RD
5	6.389-263.0	Cutting ring d.4
6	7.303-045.0	Screw M5X 55-ST-A2R (IN6RD)
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
7	6.630-169.0	Switch triple-pole
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
8	6.686-173.0	Thermostat
8	4.654-218.0	Cover pressure boiler
9	5.365-152.0	Profile gasket
9	6.303-258.0	Self-tapping screw
10	6.651-316.0	Lens housing red
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	7.306-056.0	Screw M4x8 -8.8-R2R (In6Rd)
11	2.638-974.0	Conversion kit ignition electrode
12	4.651-026.0	Pilot lamp only for replacement
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
13	5.044-412.0	Holder (CONDOR-SCHAER)
13	6.343-165.0	Serrated ring
14	7.303-125.0	Countersunk screw 4x16 -10.9-R2R (In6Rd
14	6.278-018.0	Glass pane
15	6.630-201.0	Motor protecting switch
15	5.667-055.0	Nozzle holder
16	6.630-368.0	Switch
16	6.415-775.0	Burner nozzle
17	5.654-066.0	Cover pressure boiler
18	5.654-059.0	Cover pressure boiler
19	5.394-470.0	Protecting cap
20	4.652-123.0	Outer covering
21	2.638-976.0	Conversion kit ignition cable
