Karcher (Керхер) Крышка горелки (0.131-435.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

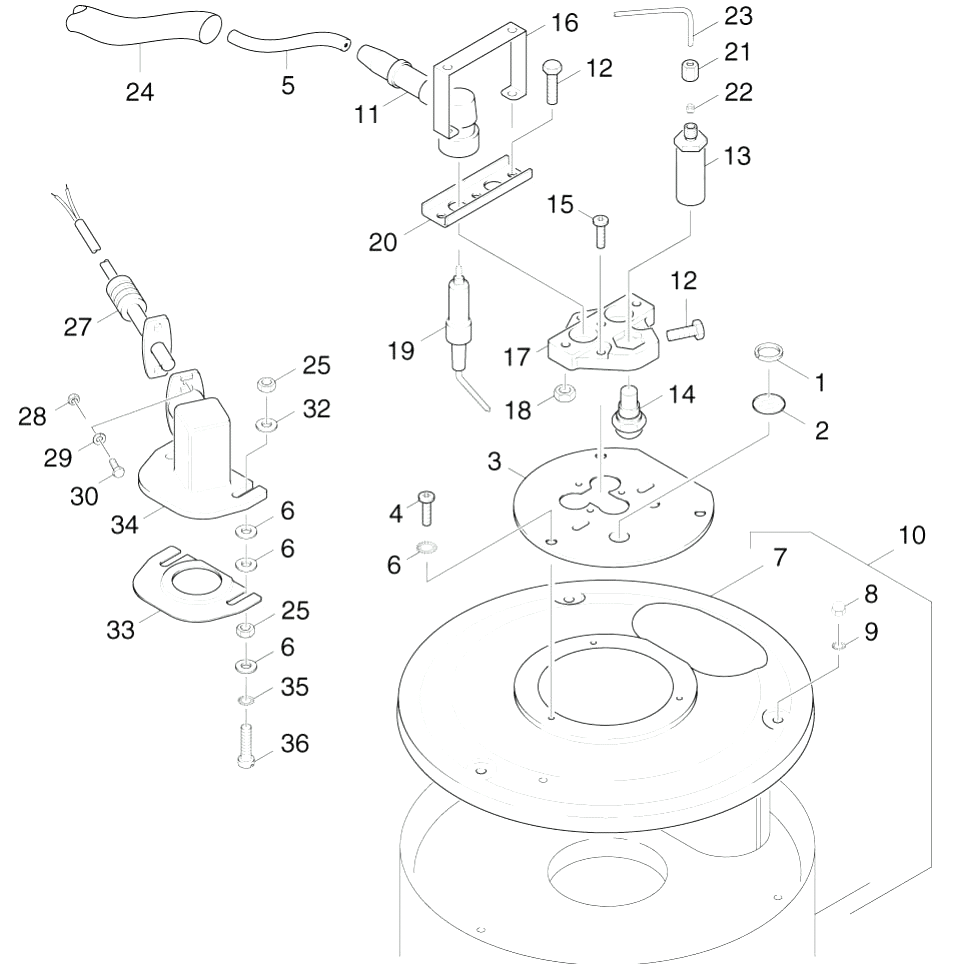

| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
3.593-060.0 |
Float valve |
|
| 1 |
7.343-230.0 |
Locking ring 25x1,2-FST-RF DIN 472 |
|
| 1 |
4.553-283.0 |
Piston complete only for replacement |
|
| 1 |
7.316-432.0 |
Cotter 4x50 -St-A2E ISO 1234 |
|
| 2 |
6.278-018.0 |
Glass pane |
|
| 2 |
6.343-142.0 |
Snap ring WR 22 |
|
| 2 |
5.070-076.0 |
Tank |
|
| 3 |
5.654-041.0 |
Cover D.K. |
|
| 3 |
7.306-092.0 |
Screw M6x20-ST- 8.8-R3R (IN6RD) |
|
| 4 |
7.303-078.0 |
Sheet metal screw ST4,8X19-ST-A2R (KOMBI |
|
| 4 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 5 |
6.641-180.0 |
Ignition cable |
|
| 5 |
6.310-028.0 |
Snap nut 4,8 |
|
| 6 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 6 |
6.388-155.0 |
Hose DN19 |
|
| 7 |
5.115-522.0 |
Washer |
|
| 7 |
5.654-038.0 |
Cover D.K. |
|
| 7 |
5.443-285.0 |
Hose stem |
|
| 8 |
5.332-281.0 |
Helical spring |
|
| 8 |
7.311-380.0 |
Cap nut M6 -6-A2E DIN 1587 |
|
| 8 |
5.394-066.0 |
Protection part |
|
| 9 |
6.362-796.0 |
O-Ring seal 107,62X 2,62 |
|
| 9 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 9 |
7.316-004.0 |
Bolt A 3x25 -CuZn ISO 2340 |
|
| 10 |
5.060-397.0 |
Housing |
|
| 10 |
4.652-060.0 |
Outer covering |
|
| 10 |
5.584-026.0 |
Valve pin |
|
| 11 |
7.306-196.0 |
Screw M 6x30-A2-70 (IN6RD) |
|
| 11 |
6.618-076.0 |
Spark plug connector |
|
| 11 |
5.364-095.0 |
Flat gasket |
|
| 12 |
6.365-059.0 |
Grooved ring 22X30X6/8 |
|
| 12 |
7.309-019.0 |
Hexagonal head screw M 5x14-8.8-A2E TORX |
|
| 12 |
5.587-103.0 |
Valve housing |
|
| 13 |
5.115-520.0 |
Washer |
|
| 13 |
5.667-026.0 |
Nozzle holder |
|
| 13 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 14 |
6.365-056.0 |
Compact seal 22X32X6 |
|
| 14 |
6.415-595.0 |
Nozzle 1,35GPH 60GR |
|
| 14 |
6.389-408.0 |
"""Elbow screw connector G 3/4"""" """ |
|
| 15 |
5.112-414.0 |
Bush |
|
| 15 |
7.303-039.0 |
Screw M5x16 -St-A2R (In6Rd) |
|
| 15 |
5.310-062.0 |
Nut |
|
| 16 |
5.115-521.0 |
Washer |
|
| 16 |
5.044-383.0 |
Holder burner HDS 890 ST |
|
| 16 |
6.388-547.0 |
Hose clip |
|
| 17 |
6.362-092.0 |
O-Ring seal 36,0 X 2,0-NBR 70 |
|
| 17 |
5.668-001.0 |
Spark holder |
|
| 17 |
6.388-924.0 |
Water hose DN16 |
|
| 18 |
6.365-055.0 |
Grooved ring 22x30x5 |
|
| 18 |
7.311-037.0 |
Hexagon nut M 5-CU2 ISO 4032 |
|
| 18 |
5.481-029.0 |
Lever |
|
| 19 |
5.550-172.0 |
Cylinder head |
|
| 19 |
2.883-083.0 |
Spare part set |
|
| 19 |
7.311-422.0 |
Hexagon nut M 6-1.4305 ISO 10511 |
|
| 20 |
7.306-155.0 |
Cylinder head screw M12x100 -8.8-A3E IS |
|
| 20 |
5.004-228.0 |
Strap |
|
| 20 |
7.312-279.0 |
Washer 6-CuZn ISO 7093-1 |
|
| 21 |
6.288-016.0 |
Gear oil 1L |
|
| 21 |
6.386-346.0 |
Union nut A 6-L |
|
| 21 |
5.585-004.0 |
Float |
|
| 22 |
6.386-160.0 |
Cutting ring D 6-L/S |
|
| 22 |
5.115-158.0 |
Washer |
|
| 23 |
5.423-034.0 |
Conduit |
|
| 23 |
7.306-194.0 |
Screw M6x20 -A2-70 (In6Rd) |
|
| 24 |
6.642-014.0 |
Insulating hose 13 |
|
| 24 |
5.042-890.0 |
Держатель емкость |
|
| 25 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 25 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 26 |
7.303-077.0 |
Sheet metal screw ST4,8X16-ST-A2R (IN6R |
|
| 27 |
6.664-030.0 |
Probe |
|
| 28 |
7.311-430.0 |
Hexagon nut M4 -04-A2E ISO 10511 |
|
| 29 |
7.312-281.0 |
Washer 4 -200HV-A2E ISO7093-1 |
|
| 30 |
7.306-098.0 |
Cylinder head screw M 4X16-8.8-A2E DIN |
|
| 33 |
5.001-090.0 |
Plate |
|
| 34 |
5.669-009.0 |
Holder photocell |
|
| 35 |
7.312-231.0 |
Serrated lock washer A5,3 -FSt-A3E DIN6 |
|
| 36 |
7.306-079.0 |
Screw M5x25 -8.8-R2R (In6Rd) |
|
