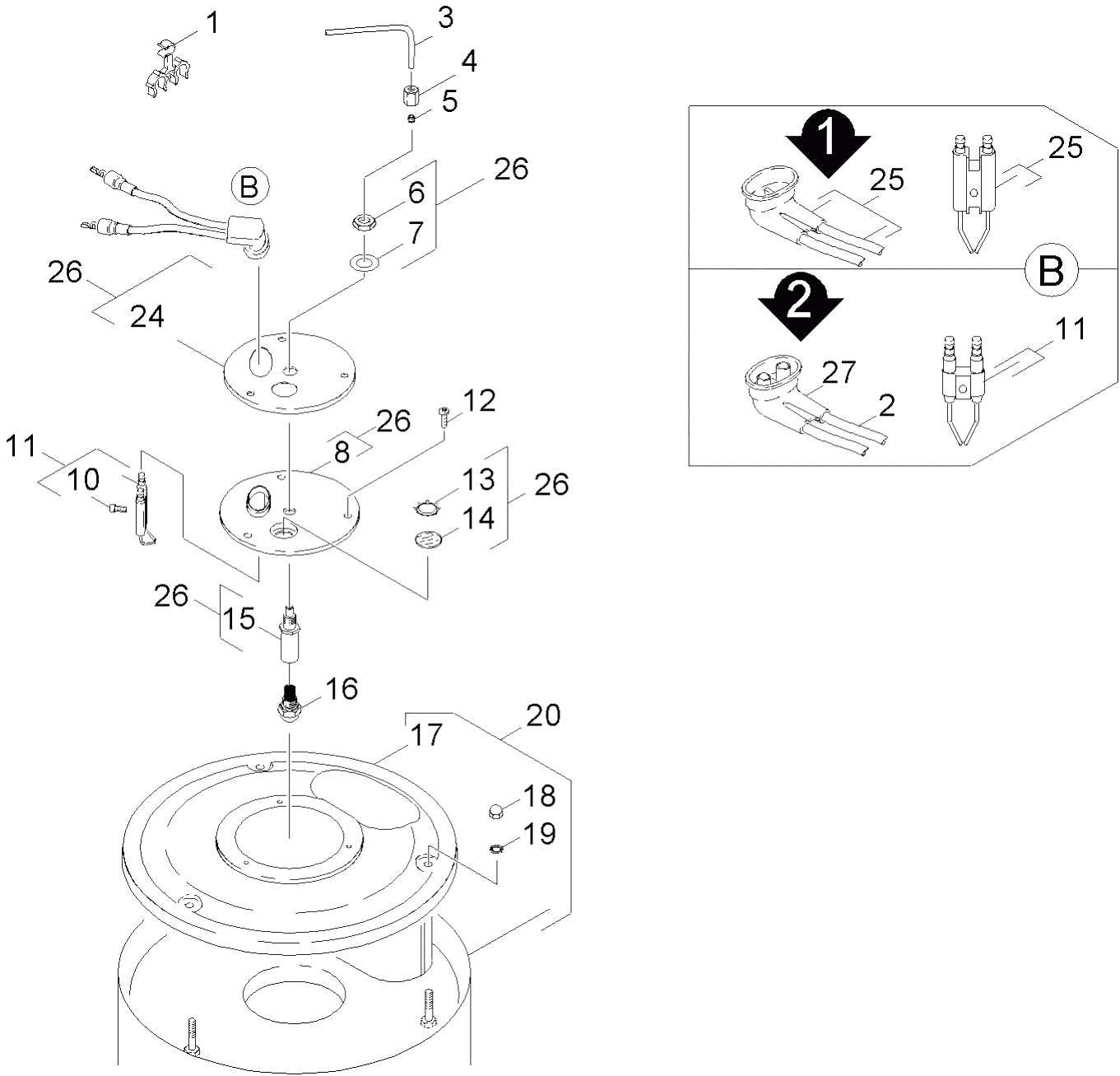

Karcher (Керхер) Крышка горелки (0.131-395.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.647-527.0	Holder
1	4.066-385.0	Cover Ersatz alte HDS-M klasse mit VA-B
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
2	5.030-834.0	Flap
3	5.423-187.0	Conduit fuel
3	5.305-204.0	Shaped screw
4	6.368-057.0	Cap rubber
4	6.389-262.0	Union nut A 4-LL
4	5.071-048.0	Tank fuel
5	6.634-106.0	Push button
5	6.389-263.0	Cutting ring d.4
6	7.303-045.0	Screw M5X 55-ST-A2R (IN6RD)
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	6.303-172.0	Oval head screw M 6X 34
7	6.631-167.0	Switch
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	5.731-039.0	Filter
8	6.685-949.0	Thermostat
8	5.662-022.0	Burner cover
8	5.363-290.0	Joint ring
9	5.115-375.0	Washer
9	5.673-060.0	Insulating
9	5.063-957.0	Cover
10	6.685-941.0	Safety thermostat exhaust gas
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	7.306-056.0	Screw M4x8 -8.8-R2R (In6Rd)
11	2.638-974.0	Conversion kit ignition electrode
12	4.651-026.0	Pilot lamp only for replacement
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
13	6.273-070.0	Seal string cellular rubber 4
13	6.343-165.0	Serrated ring
14	6.651-316.0	Lens housing red
14	6.278-018.0	Glass pane
15	5.365-152.0	Profile gasket
15	5.667-055.0	Nozzle holder
16	6.415-651.0	Nozzle -2,0GPH 60G. P
17	5.654-046.0	Cover pressure boiler
18	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
19	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
20	4.652-079.0	Outer covering
24	5.654-059.0	Cover pressure boiler
25	2.638-976.0	Conversion kit ignition cable
26	2.882-392.0	Conversion kit burner cover
27	5.394-470.0	Protecting cap
