Karcher (Керхер) Крышка горелки (0.131-378.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

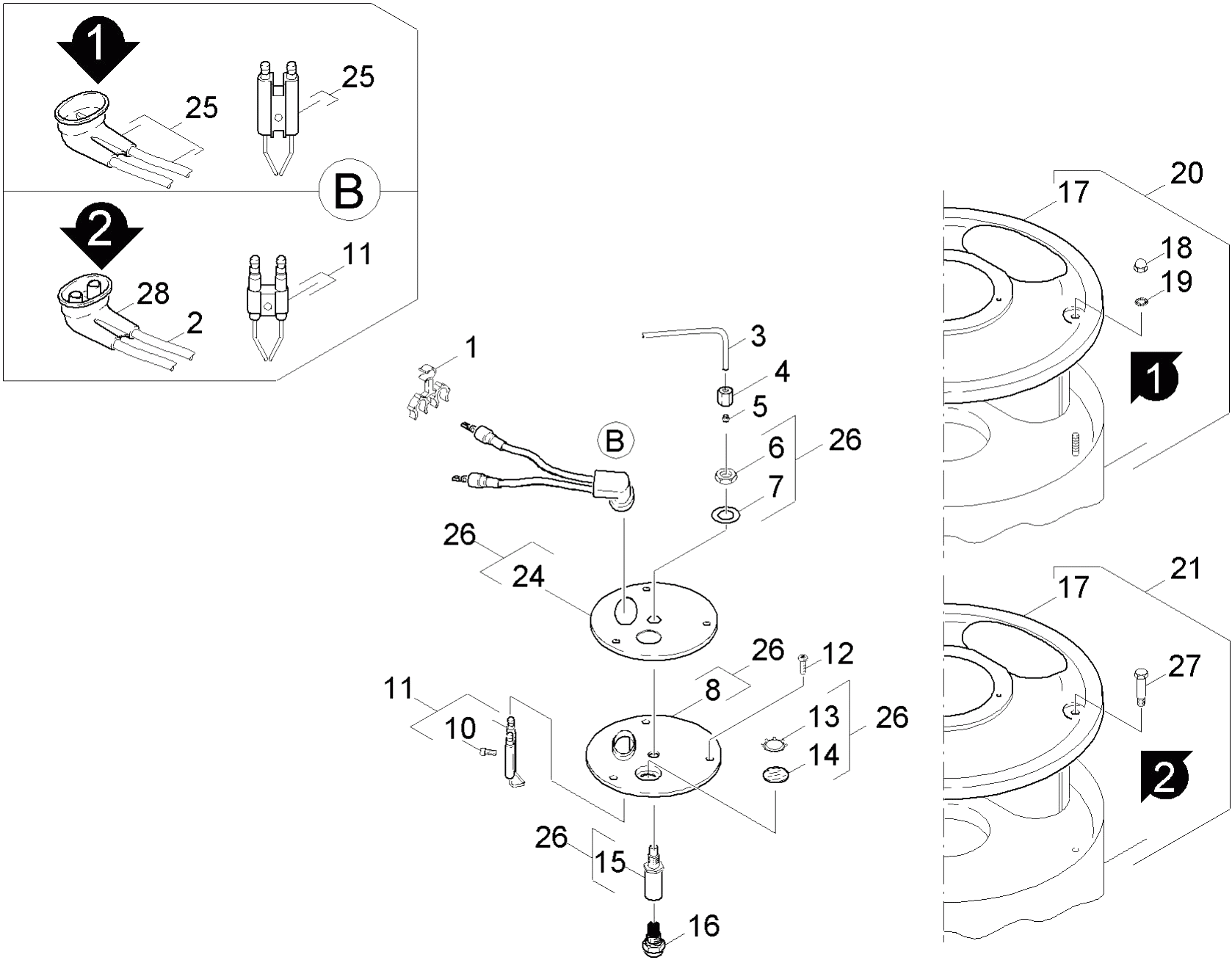

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.647-527.0	Holder
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
3	5.423-180.0	Conduit fuel
4	6.389-262.0	Union nut A 4-LL
5	6.389-263.0	Cutting ring d.4
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
8	5.662-022.0	Burner cover
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	2.638-974.0	Conversion kit ignition electrode
12	4.427-131.0	Manifold
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
13	6.362-496.0	O-Ring seal 17,12X 2,62-NBR 70
13	6.343-165.0	Serrated ring
14	6.303-025.0	Oval head screw 4,2x16-St-vz
14	6.278-018.0	Glass pane
15	6.363-115.0	O-Ring seal complete 1ST.-R.
15	5.667-055.0	Nozzle holder
16	6.389-853.0	Hose assembly standard DN6 25MPa 10m
16	6.415-682.0	Nozzle 1,35GPH
17	5.654-066.0	Cover pressure boiler
18	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
19	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
21	4.652-123.0	Outer covering
24	5.654-059.0	Cover pressure boiler
25	2.638-976.0	Conversion kit ignition cable
26	2.882-392.0	Conversion kit burner cover
27	6.303-258.0	Self-tapping screw
28	5.394-470.0	Protecting cap
