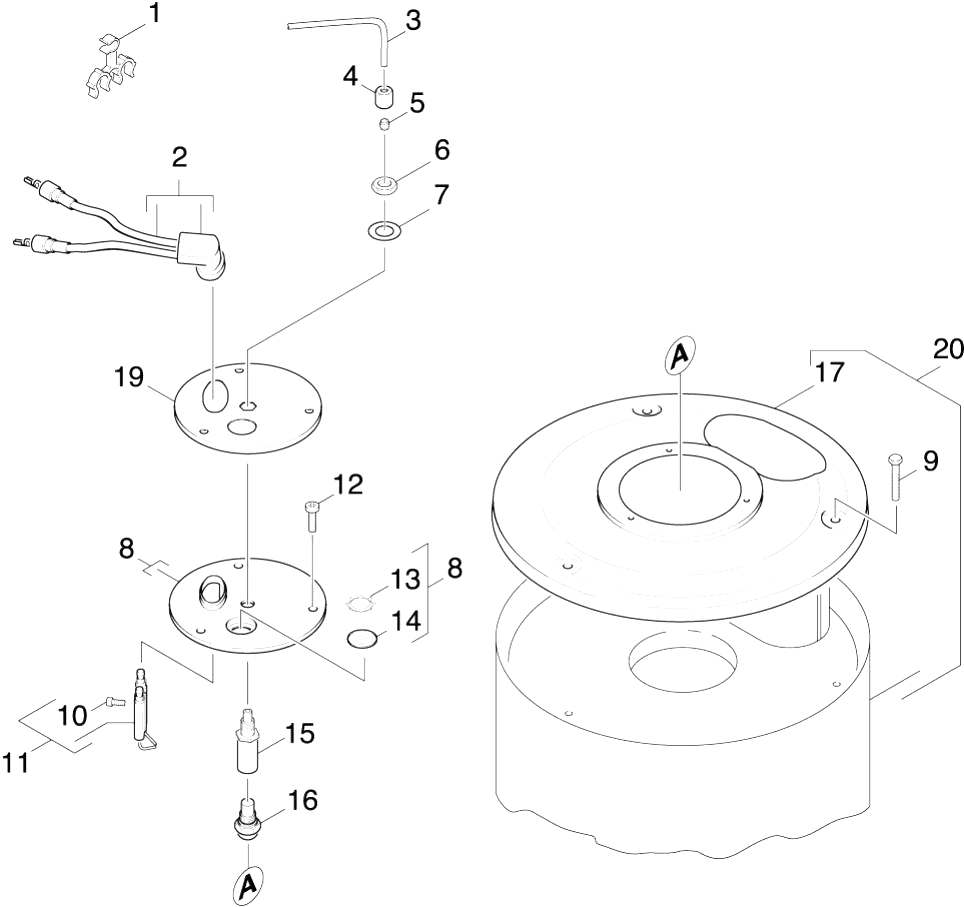

Karcher (Керхер) Крышка горелки (0.131-051.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.647-527.0	Holder
1	4.066-384.0	Cover Ersatz-alte HDS-M nieder o. Blech
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
3	6.389-262.0	Union nut A 4-LL
3	5.423-187.0	Conduit fuel
4	6.389-263.0	Cutting ring d.4
4	6.389-262.0	Union nut A 4-LL
5	6.389-261.0	Screw union
5	6.389-263.0	Cutting ring d.4
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
7	6.362-855.0	O-Ring seal 56,0 X 4,0
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
8	4.421-631.0	Pipelines BR.ST.
8	4.654-218.0	Cover pressure boiler
9	6.303-258.0	Self-tapping screw
10	6.472-927.0	Hose stem only for replacement
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	2.638-974.0	Conversion kit ignition electrode
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
13	6.343-165.0	Serrated ring
14	6.278-018.0	Glass pane
15	5.667-055.0	Nozzle holder
16	6.415-697.0	Burner nozzle 2,0GPH
16	6.415-682.0	Nozzle 1,35GPH
16	6.415-641.0	Nozzle
17	5.654-066.0	Cover pressure boiler
19	5.654-059.0	Cover pressure boiler
20	4.652-131.0	Outer covering
