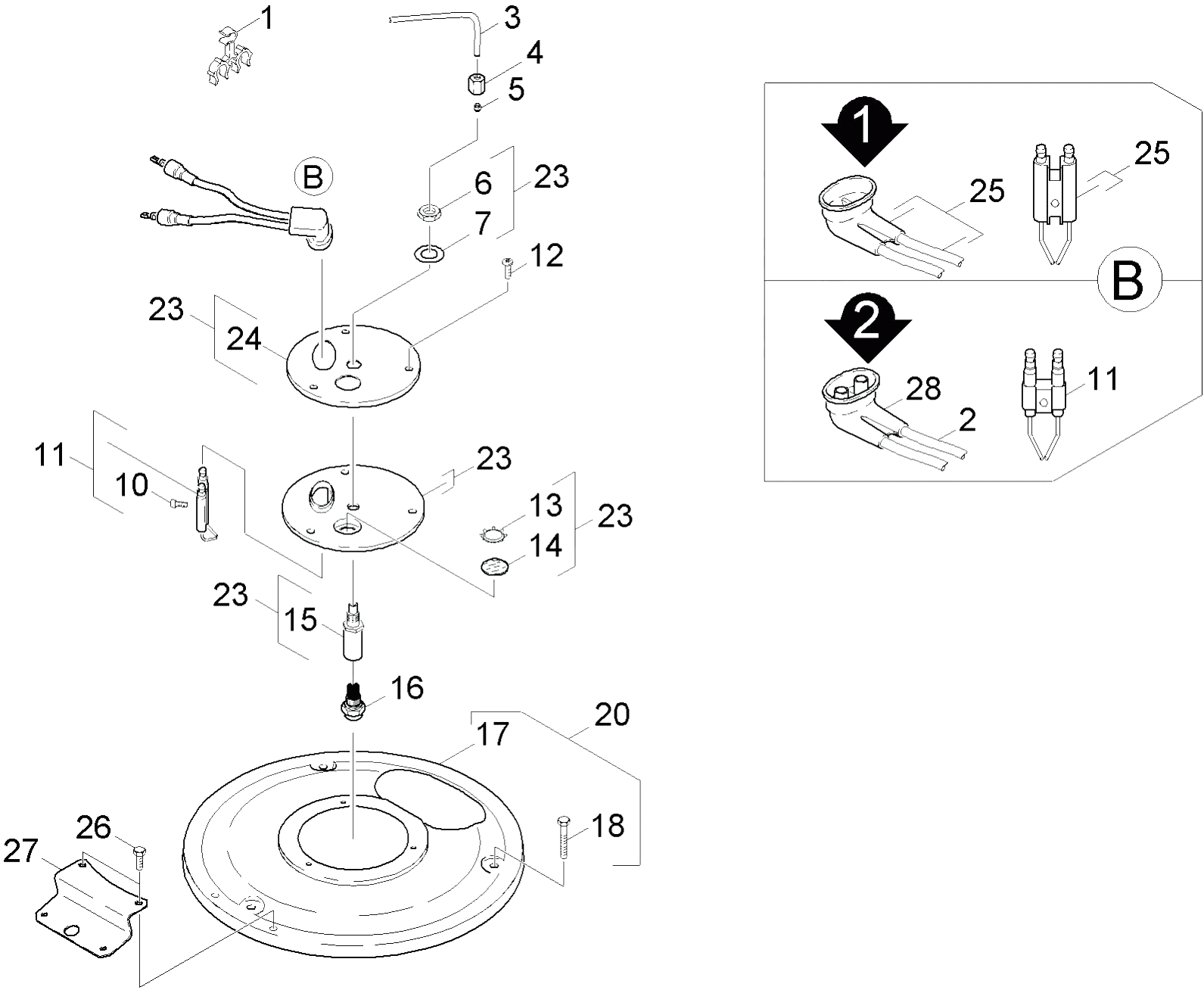

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 3.593-096.0 | Float tank | |
| 1 | 6.647-527.0 | Holder | |
| 1 | 5.587-134.0 | Valve housing | |
| 1 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 4.821-071.0 | IGNITION LEAD (HDS 557CI) | |
| 2 | 5.364-095.0 | Flat gasket | |
| 2 | 5.321-230.0 | Handhold few | |
| 3 | 5.423-140.0 | Conduit | |
| 3 | 5.584-026.0 | Valve pin | |
| 3 | 4.481-050.0 | Lever | |
| 4 | 6.389-262.0 | Union nut A 4-LL | |
| 4 | 5.394-066.0 | Protection part | |
| 4 | 5.481-052.0 | Lever | |
| 5 | 6.389-263.0 | Cutting ring d.4 | |
| 5 | 7.316-004.0 | Bolt A 3x25 -CuZn ISO 2340 | |
| 5 | 5.411-067.0 | Screw plug | |
| 6 | 7.311-101.0 | Hexagon nut M10x1 -04-A2E ISO 8675 | |
| 6 | 5.481-029.0 | Lever | |
| 6 | 5.332-157.0 | Helical spring | |
| 7 | 7.312-302.0 | Spring washer B10-FST-A2E DIN 137 | |
| 7 | 7.306-194.0 | Screw M6x20 -A2-70 (In6Rd) | |
| 7 | 5.582-117.0 | Valve disc | |
| 8 | 5.115-158.0 | Washer | |
| 8 | 6.362-584.0 | O-Ring seal 12,42X 1,78 | |
| 9 | 7.312-279.0 | Washer 6-CuZn ISO 7093-1 | |
| 9 | 7.307-417.0 | Threaded pin M8x16 -45H-A2E ISO 4026 | |
| 10 | 6.472-108.0 | Pin | |
| 10 | 7.306-217.0 | Screw M5x14 -8.8-R2R (In6Rd) | |
| 10 | 7.311-422.0 | Hexagon nut M 6-1.4305 ISO 10511 | |
| 11 | 2.638-974.0 | Conversion kit ignition electrode | |
| 11 | 5.585-014.0 | Float | |
| 12 | 6.472-128.0 | Diaphragm | |
| 12 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 12 | 7.303-078.0 | Sheet metal screw ST4,8X19-ST-A2R (KOMBI | |
| 13 | 6.343-165.0 | Serrated ring | |
| 13 | 7.312-278.0 | Washer 5-200HV-A2E ISO7093-1 | |
| 14 | 6.472-340.0 | Knurled nut | |
| 14 | 6.278-018.0 | Glass pane | |
| 14 | 6.310-028.0 | Snap nut 4,8 | |
| 15 | 5.667-055.0 | Nozzle holder | |
| 15 | 5.070-099.0 | Tank | |
| 16 | 6.415-758.0 | Nozzle 1,1GPH 60G ES | |
| 16 | 7.316-432.0 | Cotter 4x50 -St-A2E ISO 1234 | |
| 17 | 6.472-125.0 | O-Ring seal 12,0 X 1,5 | |
| 17 | 4.654-196.0 | Cover pressure boiler | |
| 17 | 5.112-193.0 | Bush | |
| 18 | 6.472-411.0 | Solenoid valve | |
| 18 | 6.303-258.0 | Self-tapping screw | |
| 18 | 6.641-474.0 | Cable tape 8-210 | |
| 19 | 6.472-120.0 | O-Ring seal 28,5 X 1,6 | |
| 19 | 6.388-775.0 | Hose 19x4x0,2m | |
| 20 | 4.652-112.0 | Outer covering | |
| 20 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 21 | 5.443-211.0 | Hose stem | |
| 22 | 6.472-105.0 | Seal axle | |
| 22 | 5.310-062.0 | Nut | |
| 23 | 4.654-218.0 | Cover pressure boiler | |
| 23 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 24 | 5.654-059.0 | Cover pressure boiler | |
| 24 | 6.388-547.0 | Hose clip | |
| 25 | 2.638-976.0 | Conversion kit ignition cable | |
| 25 | 5.310-061.0 | """Nut R 3/4"""" """ | |
| 26 | 7.306-090.0 | Screw M6x16 -8.8-R3R (In6Rd) | |
| 26 | 5.443-224.0 | Hose stem | |
| 27 | 5.030-985.0 | Moulded part | |
| 28 | 5.394-470.0 | Protecting cap | |
| 28 | 5.427-178.0 | Manifold | |
| 29 | 6.303-174.0 | Screw 6,0X20-ST-A2R | |
| 30 | 6.414-282.0 | Strainer |
