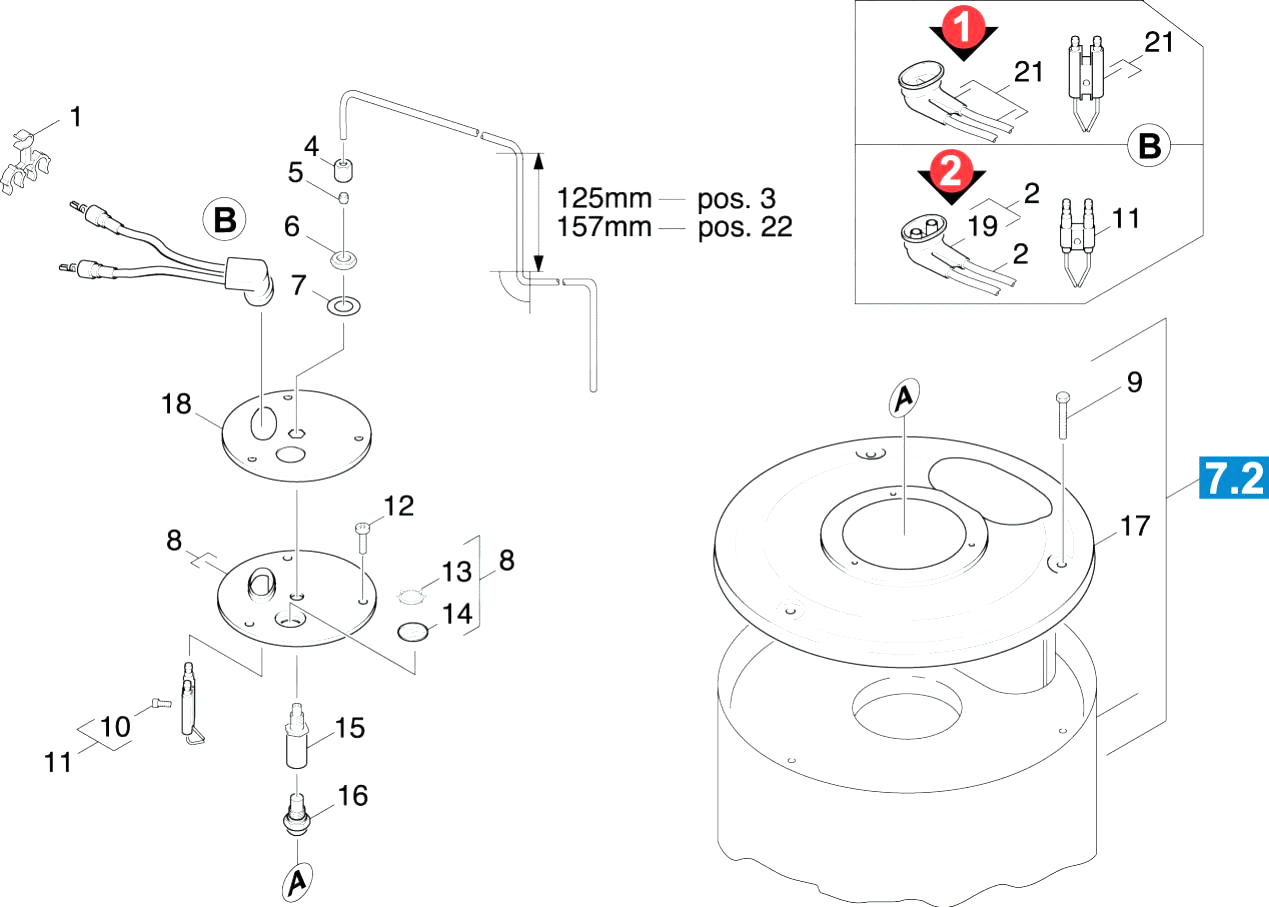

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.647-527.0 | Holder | |
| 1 | 5.305-162.0 | Shaped screw | |
| 1 | 4.066-384.0 | Cover Ersatz-alte HDS-M nieder o. Blech | |
| 2 | 4.821-071.0 | IGNITION LEAD (HDS 557CI) | |
| 2 | 6.362-482.0 | O-Ring seal 10 x 1,5-NBR 70 | |
| 2 | 5.030-834.0 | Flap | |
| 3 | 5.423-186.0 | Conduit fuel | |
| 3 | 5.332-057.0 | Helical spring | |
| 3 | 5.305-204.0 | Shaped screw | |
| 4 | 6.362-642.0 | O-Ring d. 7,65x1,78 -NBR 80 | |
| 4 | 6.389-262.0 | Union nut A 4-LL | |
| 4 | 4.553-022.0 | Piston | |
| 4 | 5.071-048.0 | Tank fuel | |
| 5 | 5.481-178.0 | Lever | |
| 5 | 6.389-263.0 | Cutting ring d.4 | |
| 5 | 5.041-076.0 | Clamp | |
| 5 | 4.066-385.0 | Cover Ersatz alte HDS-M klasse mit VA-B | |
| 6 | 5.404-080.0 | Hollow screw | |
| 6 | 7.311-101.0 | Hexagon nut M10x1 -04-A2E ISO 8675 | |
| 6 | 2.883-338.0 | Reed switch replacement | |
| 6 | 6.303-172.0 | Oval head screw M 6X 34 | |
| 7 | 5.553-348.0 | Piston | |
| 7 | 7.312-302.0 | Spring washer B10-FST-A2E DIN 137 | |
| 7 | 4.427-202.0 | Соединительный элемент | |
| 7 | 5.731-039.0 | Filter | |
| 8 | 5.581-243.0 | Valve seat | |
| 8 | 4.654-218.0 | Cover pressure boiler | |
| 8 | 6.414-566.0 | Strainer WMS | |
| 8 | 5.363-290.0 | Joint ring | |
| 9 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 9 | 6.303-258.0 | Self-tapping screw | |
| 9 | 6.647-235.0 | Sealing cable | |
| 9 | 5.063-957.0 | Cover | |
| 10 | 5.332-413.0 | Helical spring | |
| 10 | 7.306-217.0 | Screw M5x14 -8.8-R2R (In6Rd) | |
| 10 | 6.647-234.0 | Contact | |
| 10 | 5.332-236.0 | Helical spring | |
| 11 | 2.638-974.0 | Conversion kit ignition electrode | |
| 11 | 6.303-122.0 | M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO | |
| 11 | 5.316-318.0 | Bolt | |
| 12 | 5.427-214.0 | Manifold | |
| 12 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 12 | 5.013-075.0 | Funnel | |
| 13 | 6.362-964.0 | O-Ring seal complete | |
| 13 | 6.343-165.0 | Serrated ring | |
| 14 | 5.316-400.0 | Bolt | |
| 14 | 6.278-018.0 | Glass pane | |
| 15 | 5.110-596.0 | Sleeve | |
| 15 | 5.667-055.0 | Nozzle holder | |
| 16 | 4.037-013.0 | Hook | |
| 16 | 6.415-641.0 | Nozzle | |
| 17 | 6.362-503.0 | O-Ring seal 8,0 X 1,0 | |
| 17 | 5.654-066.0 | Cover pressure boiler | |
| 18 | 6.362-992.0 | O-Ring seal complete 2,6X1,9 | |
| 18 | 5.654-059.0 | Cover pressure boiler | |
| 19 | 5.394-470.0 | Protecting cap | |
| 21 | 2.638-976.0 | Conversion kit ignition cable | |
| 22 | 5.423-187.0 | Conduit fuel | |
| 100 | 2.883-917.0 | Spare part set |
