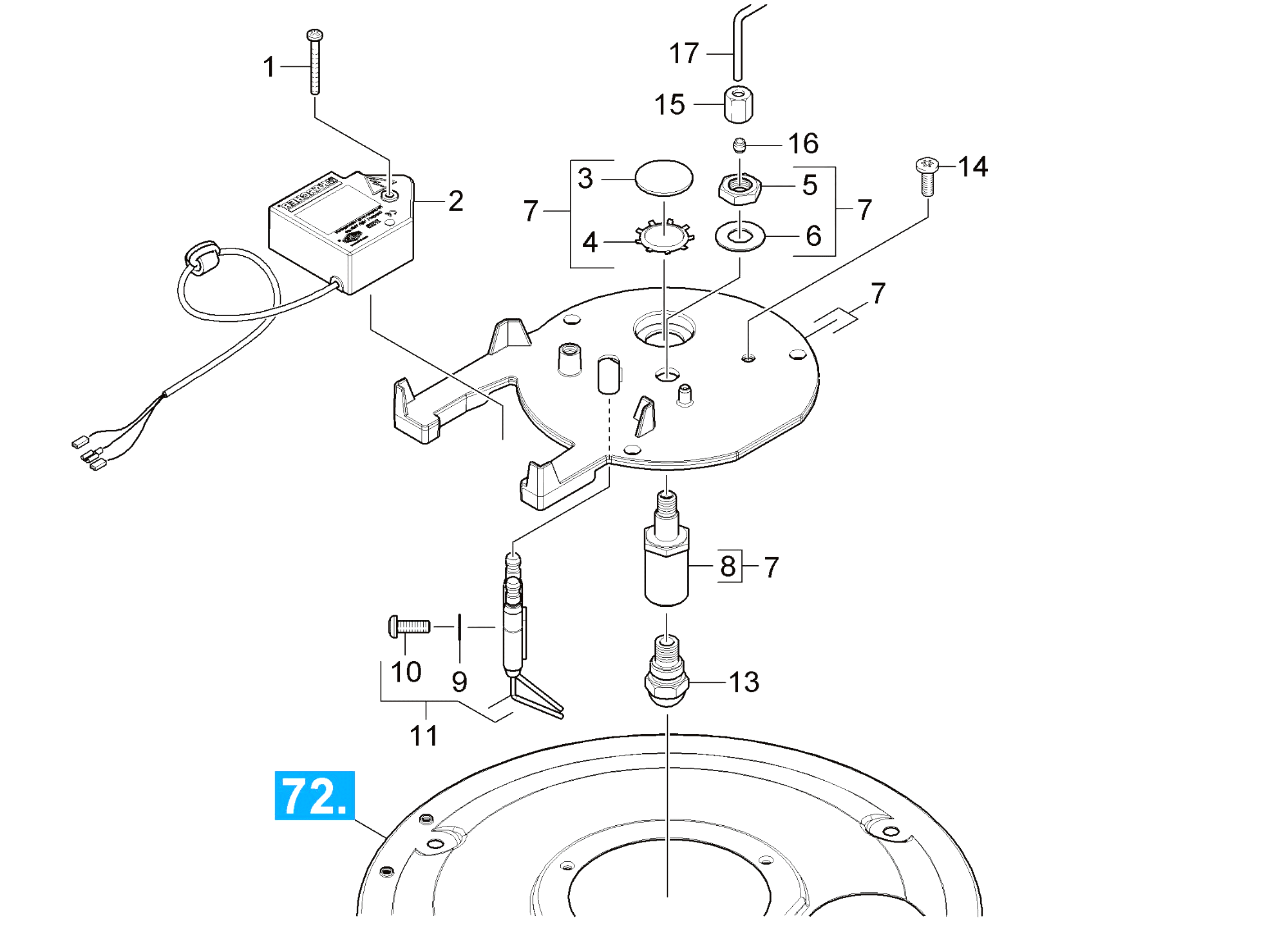

Karcher (Керхер) Крышка горелки (0.116-344.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-240.0	Screw M5x40-ST-A2E (IN6RD)
1	5.321-996.0	Sliding handle
2	4.622-025.0	Ignition transformer only for replacemen
2	5.332-236.0	Helical spring
3	5.317-765.0	Bolt closure cover
3	6.278-018.0	Glass pane
4	5.069-386.0	Device cover Grau HDS-C Neu
4	6.343-165.0	Serrated ring
5	5.424-162.0	Fixing jet pipe
5	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	5.314-143.0	Pin fixing jet pipe
6	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	2.885-272.0	Spare part set hinge cover
7	4.654-288.0	Cover pressure boiler only for replaceme
8	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
8	5.667-055.0	Nozzle holder
9	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
9	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
10	7.303-047.0	Screw M6x16 -St-R3R (In6Rd)
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	5.107-295.0	Bar handhold
11	2.638-974.0	Conversion kit ignition electrode
12	5.051-363.0	Moulded part rear panel
13	5.033-725.0	Tool bag
13	6.415-775.0	Burner nozzle
14	5.762-420.0	Bracket plate
14	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
15	6.389-262.0	Union nut A 4-LL
16	6.389-263.0	Cutting ring d.4
17	5.423-400.0	Conduit fuel
