Karcher (Керхер) Крышка горелки (0.115-979.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

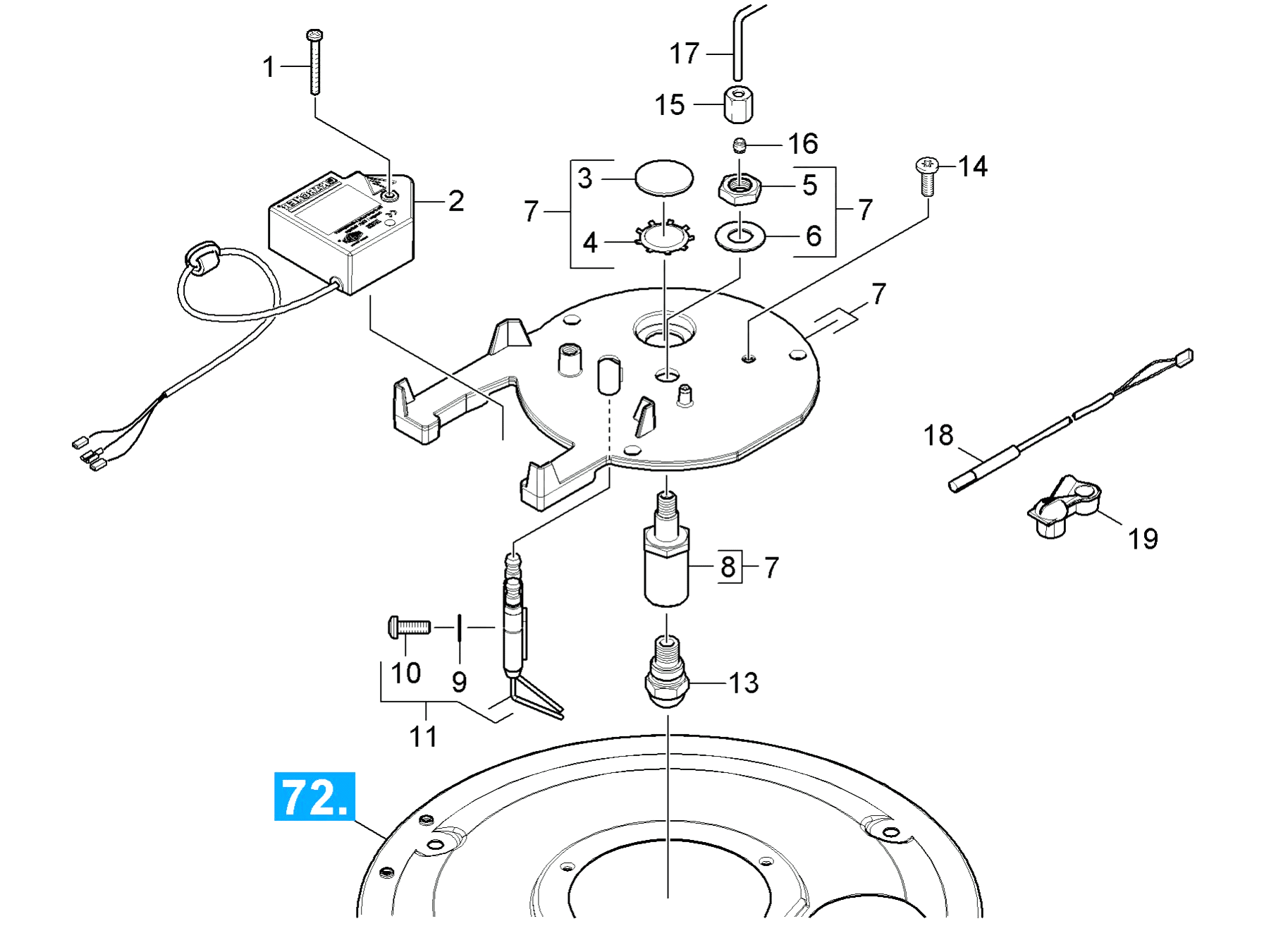

| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
7.303-240.0 |
Screw M5x40-ST-A2E (IN6RD) |
|
| 1 |
5.322-103.0 |
Handle |
|
| 1 |
7.303-069.0 |
Screw M 8x25-ST-R3R (IN6RD) |
|
| 1 |
4.775-466.0 |
Hand trigger gun |
|
| 2 |
4.622-038.0 |
Ignition transformer only for replacemen |
|
| 2 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 2 |
5.321-830.0 |
Sliding handle left |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 3 |
6.278-018.0 |
Glass pane |
|
| 3 |
7.307-017.0 |
Threaded pin M5x40 -St-45H-A2E ISO 4026 |
|
| 3 |
5.321-831.0 |
Sliding handle right |
|
| 3 |
5.481-331.0 |
Slider |
|
| 4 |
6.343-165.0 |
Serrated ring |
|
| 4 |
5.304-070.0 |
Hexagonal head screw |
|
| 4 |
7.303-209.0 |
Screw 6x50 -10.9-R2R (K-In6Rd) |
|
| 5 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 5 |
7.401-931.0 |
Sphere 5 Kl3 -1.4401 DIN 5401 |
|
| 5 |
5.501-083.0 |
Hinge cover black |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 6 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 6 |
5.582-121.0 |
Valve disc |
|
| 6 |
5.317-779.0 |
Bolt hinge black |
|
| 7 |
4.654-288.0 |
Cover pressure boiler only for replaceme |
|
| 7 |
5.404-082.0 |
Hollow screw |
|
| 7 |
5.317-291.0 |
Bolt |
|
| 7 |
4.037-013.0 |
Hook |
|
| 8 |
5.667-055.0 |
Nozzle holder |
|
| 8 |
4.440-796.0 |
Hose SDS |
|
| 8 |
4.066-426.0 |
Device cover complete only for replaceme |
|
| 8 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 9 |
7.312-304.0 |
Spring washer B 5-FST-A2E DIN 137 |
|
| 9 |
5.332-444.0 |
Helical spring |
|
| 9 |
7.303-086.0 |
Screw 5x30 -10.9-R2R (K-In6Rd) |
|
| 9 |
4.421-739.0 |
Adapter pipelines AVS-M22x1,5 |
|
| 10 |
7.306-217.0 |
Screw M5x14 -8.8-R2R (In6Rd) |
|
| 10 |
5.584-114.0 |
Valve pin |
|
| 10 |
5.033-381.0 |
Profile |
|
| 11 |
2.884-085.0 |
Набор запасных частей нейтральный поджиг |
|
| 11 |
5.311-204.0 |
Hexagon nut M22x1,5 |
|
| 11 |
7.303-106.0 |
Screw 4x12 -10.9-R2R (IN6RD) |
|
| 12 |
4.553-287.0 |
Piston complete |
|
| 13 |
6.415-564.0 |
Burner nozzle |
|
| 13 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 13 |
5.033-929.0 |
Covering cap DGT |
|
| 14 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 14 |
5.402-746.0 |
Connection piece |
|
| 14 |
5.332-236.0 |
Helical spring |
|
| 15 |
6.389-262.0 |
Union nut A 4-LL |
|
| 15 |
5.317-765.0 |
Bolt closure cover |
|
| 16 |
6.389-263.0 |
Cutting ring d.4 |
|
| 16 |
4.580-611.0 |
Valve complete |
|
| 16 |
5.424-162.0 |
Fixing jet pipe |
|
| 17 |
5.423-347.0 |
Conduit fuel |
|
| 17 |
5.314-143.0 |
Pin fixing jet pipe |
|
| 18 |
6.664-055.0 |
Probe |
|
| 18 |
5.583-146.0 |
Valve screw |
|
| 18 |
6.303-497.0 |
Screw M8x35-8.8-A2E (IN6RD) |
|
| 19 |
5.034-982.0 |
Holder photocell |
|
| 19 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 19 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 20 |
2.884-512.0 |
Valve (3 Stueck) |
|
| 20 |
6.362-377.0 |
O-Ring seal 38,0 X 2,0-NBR 70 |
|
| 21 |
6.363-003.0 |
O-Ring seal 13,0 X 2,0-NBR 90 |
|
| 21 |
5.425-495.0 |
CONNECTION PIECE DGT |
|
| 22 |
4.550-887.0 |
Cylinder head complete |
|
| 22 |
2.885-055.0 |
Circuit board |
|
| 23 |
6.363-536.0 |
O-Ring seal 21x1,5 |
|
| 23 |
5.044-889.0 |
Holder circuit board |
|
| 24 |
5.427-418.0 |
Manifold water intake |
|
| 25 |
7.306-043.0 |
Cylinder head screw M8x30 -8.8-A2E ISO |
|
| 25 |
5.033-113.0 |
Flap |
|
| 26 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 26 |
5.190-249.0 |
Strip front |
|
| 27 |
6.362-703.0 |
O-Ring seal 6,0x1,5-NBR 70 |
|
| 27 |
5.190-250.0 |
Strip rear |
|
| 28 |
5.110-867.0 |
Sleeve |
|
| 28 |
5.317-220.0 |
Bolt |
|
| 29 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
| 29 |
5.033-112.0 |
Storage compartment |
|
| 30 |
4.580-581.0 |
Valve complete |
|
| 30 |
2.882-692.0 |
Conversion kit holder large Kessel |
|
| 31 |
6.362-853.0 |
O-Ring seal 4,47x1,78 |
|
| 31 |
6.431-274.0 |
Tackle cover |
|
| 32 |
5.402-705.0 |
Joining piece |
|
| 33 |
6.363-037.0 |
O-Ring seal complete 1ST.-R. |
|
| 34 |
4.553-197.0 |
Piston complete only for replacement |
|
| 35 |
5.115-796.0 |
Washer |
|
| 36 |
5.332-268.0 |
Helical spring |
|
| 37 |
5.411-148.0 |
Screw plug |
|
| 38 |
5.367-030.0 |
Diaphragm |
|
| 39 |
5.034-494.0 |
Retaining bracket |
|
| 40 |
4.580-594.0 |
Valve complete |
|
| 41 |
4.744-225.0 |
Switch complete |
|
| 42 |
4.744-224.0 |
Switch complete |
|
| 43 |
5.411-504.0 |
Screw plug |
|
| 44 |
6.362-176.0 |
O-Ring seal 6,07x1,78 |
|
| 45 |
6.362-079.0 |
O-Ring seal 18,0 X 2,5 |
|
| 53 |
5.581-239.0 |
Valve seat |
|
| 54 |
6.362-386.0 |
O-Ring seal 5,0 x 1,5-NBR 80 |
|
