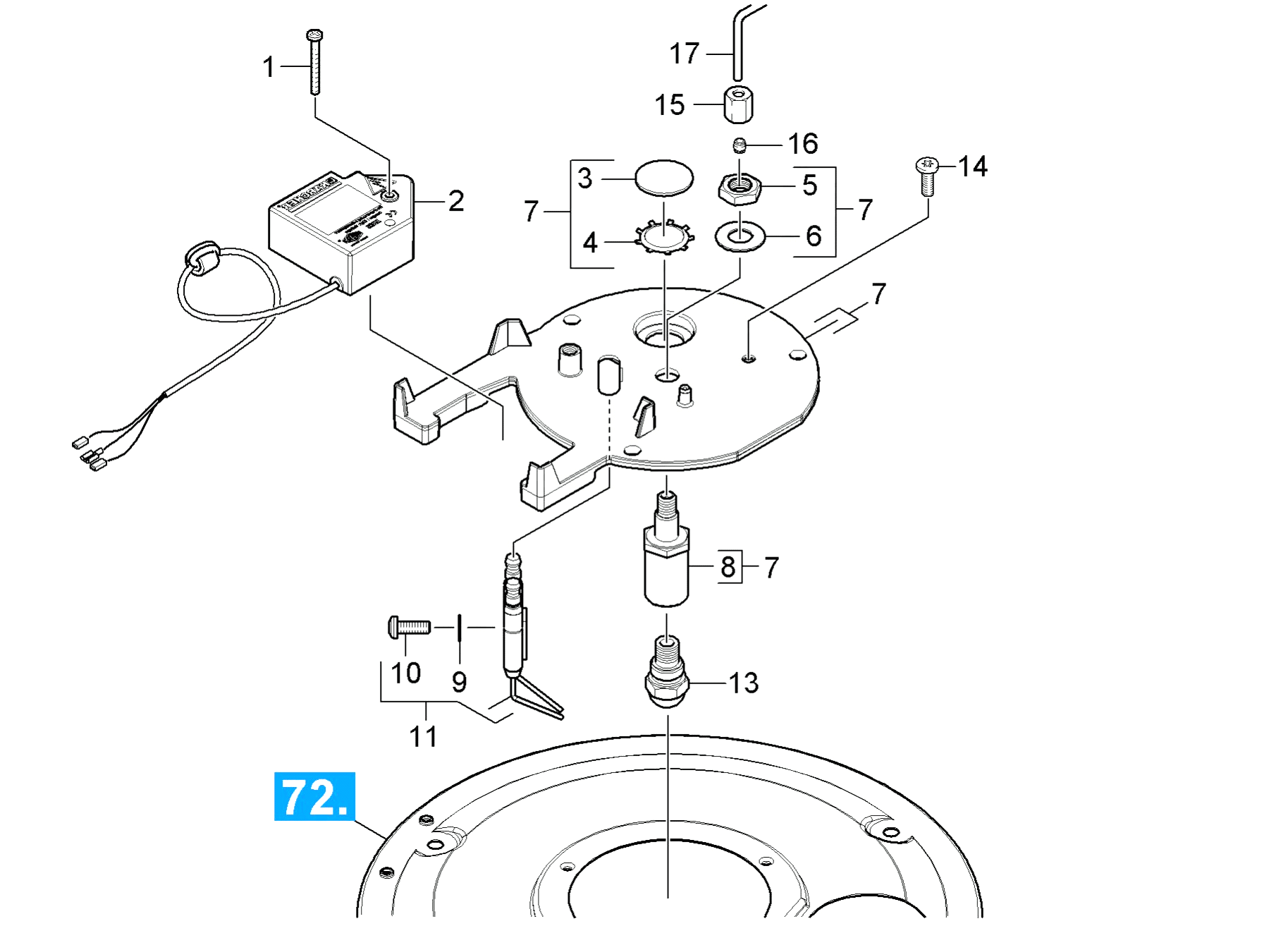

Karcher (Керхер) Крышка горелки (0.115-614.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-240.0	Screw M5x40-ST-A2E (IN6RD)
2	4.622-039.0	Ignition transformer only for replacemen
3	6.278-018.0	Glass pane
4	6.343-165.0	Serrated ring
5	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	4.654-288.0	Cover pressure boiler only for replaceme
8	5.667-055.0	Nozzle holder
9	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	2.638-974.0	Conversion kit ignition electrode
13	6.415-641.0	Nozzle
14	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
15	6.389-262.0	Union nut A 4-LL
16	6.389-263.0	Cutting ring d.4
17	5.423-347.0	Conduit fuel
34	4.553-197.0	Piston complete only for replacement
35	5.115-796.0	Washer
36	5.332-268.0	Helical spring
37	5.411-148.0	Screw plug
38	5.367-030.0	Diaphragm
39	5.034-494.0	Retaining bracket
40	4.580-594.0	Valve complete
41	4.744-225.0	Switch complete
42	4.744-224.0	Switch complete
43	5.411-504.0	Screw plug
44	6.362-176.0	O-Ring seal 6,07x1,78
45	5.581-239.0	Valve seat
46	6.362-386.0	O-Ring seal 5,0 x 1,5-NBR 80
