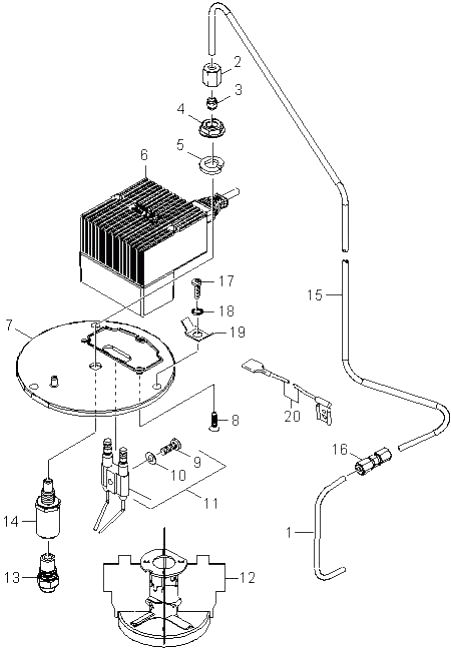

Karcher (Керхер) Крышка горелки (0.115-590.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-239.0 |
Электродвигатель в сборе |
|
| 1 |
5.423-413.0 |
Conduit fuel |
|
| 1 |
5.063-548.0 |
Cover motor |
|
| 2 |
6.389-262.0 |
Union nut A 4-LL |
|
| 2 |
5.379-015.0 |
Rubber ring |
|
| 3 |
6.389-263.0 |
Cutting ring d.4 |
|
| 3 |
6.303-125.0 |
Screw 5x20-Sonder In6Rd+Spitze |
|
| 4 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 4 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 5 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 5 |
7.312-166.0 |
Toothed lock washer A8,4-FSt-A3E DIN 67 |
|
| 6 |
4.622-021.0 |
Ignition transformer only for replacemen |
|
| 6 |
7.312-172.0 |
Toothed lock washer A5,3-FSt-A3E DIN 67 |
|
| 7 |
5.662-023.0 |
Burner cover |
|
| 7 |
7.303-039.0 |
Screw M5x16 -St-A2R (In6Rd) |
|
| 8 |
7.303-125.0 |
Countersunk screw 4x16 -10.9-R2R (In6Rd |
|
| 8 |
5.051-016.0 |
Base plate |
|
| 9 |
7.306-217.0 |
Screw M5x14 -8.8-R2R (In6Rd) |
|
| 9 |
6.339-095.0 |
Rubber buffer |
|
| 10 |
7.312-304.0 |
Spring washer B 5-FST-A2E DIN 137 |
|
| 10 |
6.288-050.0 |
Engine oil 1L |
|
| 11 |
2.638-974.0 |
Conversion kit ignition electrode |
|
| 11 |
5.063-237.0 |
Cover |
|
| 12 |
4.663-141.0 |
Burner cage |
|
| 12 |
5.070-089.0 |
Tank oil |
|
| 13 |
6.415-920.0 |
Burner nozzle |
|
| 13 |
6.362-079.0 |
O-Ring seal 18,0 X 2,5 |
|
| 14 |
5.667-055.0 |
Nozzle holder |
|
| 15 |
5.423-414.0 |
Conduit fuel |
|
| 16 |
6.392-208.0 |
Screw connector |
|
| 17 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 18 |
7.312-172.0 |
Toothed lock washer A5,3-FSt-A3E DIN 67 |
|
| 19 |
6.641-269.0 |
Tab |
|
| 20 |
4.821-125.0 |
Cable 1,5x1400-GG |
|
| 25 |
5.003-062.0 |
Plate |
|
| 26 |
5.332-258.0 |
Helical spring |
|
| 27 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 28 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 29 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 30 |
5.443-624.0 |
Nipple |
|
| 31 |
4.862-225.0 |
Filter chemistry regulation |
|
| 32 |
6.388-216.0 |
Hose DN 5 |
|
