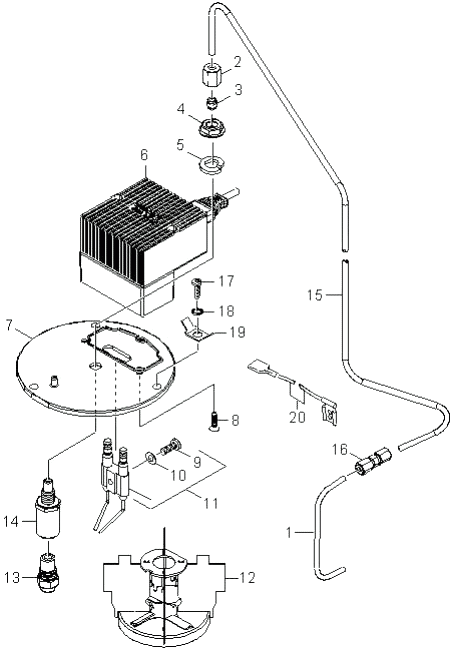

Karcher (Керхер) Крышка горелки (0.115-558.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
5.423-413.0 |
Conduit fuel |
|
| 1 |
5.322-111.0 |
Handle |
|
| 1 |
4.403-002.0 |
Coupler |
|
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
4.069-013.0 |
Cover neutrally only for replacement |
|
| 1 |
5.321-978.0 |
Handle HDS upright |
|
| 2 |
6.389-262.0 |
Union nut A 4-LL |
|
| 2 |
5.321-206.0 |
Handhold few |
|
| 2 |
5.110-714.0 |
Sleeve |
|
| 2 |
5.064-353.0 |
Cover electric box HDS upright |
|
| 2 |
5.321-751.0 |
Handhold |
|
| 3 |
6.389-263.0 |
Cutting ring d.4 |
|
| 3 |
4.481-050.0 |
Lever |
|
| 3 |
5.332-258.0 |
Helical spring |
|
| 3 |
5.064-394.0 |
Bottom electric box |
|
| 3 |
5.107-292.0 |
Bar shearing shackle HDS Upright UX |
|
| 3 |
5.107-291.0 |
Bar shearing shackle HDS upright U |
|
| 3 |
2.885-208.0 |
Conversion kit electric box HDS 5/11 |
|
| 4 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 4 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 4 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 4 |
6.630-471.0 |
Поворотный переключатель HDS 5/11 |
|
| 4 |
5.044-987.0 |
Holder jet pipe |
|
| 4 |
5.044-216.0 |
Holder |
|
| 5 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 5 |
7.303-129.0 |
Screw 4x16 -10.9-R2R (K-In6Rd) |
|
| 5 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 5 |
7.305-019.0 |
Countersunk screw M4x16 -8.8-R2R (In6Rd |
|
| 5 |
5.065-732.0 |
Rear panel HDS upright |
|
| 6 |
2.885-209.0 |
Conversion kit ignition transformer HDS |
|
| 6 |
5.411-067.0 |
Screw plug |
|
| 6 |
6.362-451.0 |
O-Ring seal 8,0 x 1,0 |
|
| 6 |
6.641-270.0 |
Plug |
|
| 6 |
5.033-556.0 |
Chassis HDS upright |
|
| 7 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 7 |
5.662-023.0 |
Burner cover |
|
| 7 |
4.132-007.0 |
Drain plug only for replacement |
|
| 7 |
6.646-748.0 |
Binder for cable 0,08-2,5mm? |
|
| 7 |
5.105-649.0 |
Wheel axle HDS upright |
|
| 8 |
5.332-157.0 |
Helical spring |
|
| 8 |
7.303-125.0 |
Countersunk screw 4x16 -10.9-R2R (In6Rd |
|
| 8 |
6.362-458.0 |
O-Ring seal 11,0x2,0-NBR 70 |
|
| 8 |
4.515-255.0 |
Колесо |
|
| 9 |
7.306-217.0 |
Screw M5x14 -8.8-R2R (In6Rd) |
|
| 9 |
5.582-058.0 |
Valve disc |
|
| 9 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 9 |
5.392-035.0 |
Wheel cap |
|
| 10 |
7.312-304.0 |
Spring washer B 5-FST-A2E DIN 137 |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
6.365-574.0 |
Grooved ring |
|
| 10 |
5.057-062.0 |
Support |
|
| 11 |
2.638-974.0 |
Conversion kit ignition electrode |
|
| 11 |
4.880-069.0 |
Spare part O-ring kit |
|
| 11 |
4.580-308.0 |
Suction valve complete |
|
| 11 |
5.515-351.0 |
Roller hose guide |
|
| 12 |
4.663-141.0 |
Burner cage |
|
| 12 |
4.030-125.0 |
Joining piece only for replacement |
|
| 12 |
5.071-215.0 |
Tank fuel HDS upright |
|
| 13 |
6.415-920.0 |
Burner nozzle |
|
| 13 |
4.769-034.0 |
Nozzle insert only for replacement |
|
| 13 |
4.645-315.0 |
Cover tank only for replacement |
|
| 13 |
6.415-916.0 |
Burner nozzle |
|
| 14 |
5.322-083.0 |
Handhold few extended Low End |
|
| 14 |
5.667-055.0 |
Nozzle holder |
|
| 14 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 14 |
7.303-047.0 |
Screw M6x16 -St-R3R (In6Rd) |
|
| 15 |
5.031-259.0 |
Moulded part |
|
| 15 |
5.423-414.0 |
Conduit fuel |
|
| 15 |
4.584-022.0 |
Valve pin complete |
|
| 15 |
4.649-055.0 |
Cable with plug nur fuer Ersatz |
|
| 15 |
4.649-044.0 |
Cable with plug nur f?r Ersatz |
|
| 16 |
5.481-052.0 |
Lever |
|
| 16 |
6.392-208.0 |
Screw connector |
|
| 16 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 16 |
5.767-016.0 |
Rubber buffer |
|
| 17 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 17 |
5.003-062.0 |
Plate |
|
| 17 |
6.363-565.0 |
O-Ring seal 60x4 |
|
| 17 |
6.391-417.0 |
Hose assembly standard DN6 25MPa 15m |
|
| 18 |
7.312-172.0 |
Toothed lock washer A5,3-FSt-A3E DIN 67 |
|
| 18 |
7.304-098.0 |
Hexagonal head screw M8x80-8.8-A2E ISO |
|
| 18 |
5.731-039.0 |
Filter |
|
| 18 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 19 |
6.641-269.0 |
Tab |
|
| 19 |
5.550-304.0 |
Cylinder head |
|
| 19 |
6.343-162.0 |
Lock washer -25 |
|
| 19 |
6.391-238.0 |
High pressure hose DN6-10m |
|
| 20 |
4.821-131.0 |
Cable 1,5x1240-GG |
|
| 20 |
6.388-216.0 |
Hose DN 5 |
|
| 20 |
5.044-646.0 |
Holder roller front |
|
| 20 |
4.821-125.0 |
Cable 1,5x1400-GG |
|
| 21 |
4.862-225.0 |
Filter chemistry regulation |
|
| 21 |
4.862-032.0 |
Filter chemistry regulation |
|
| 21 |
5.515-191.0 |
Roller |
|
| 22 |
5.128-511.0 |
Axle |
|
| 23 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 24 |
7.303-171.0 |
Screw 5x80 -10.9-R2R (K-In6Rd) |
|
