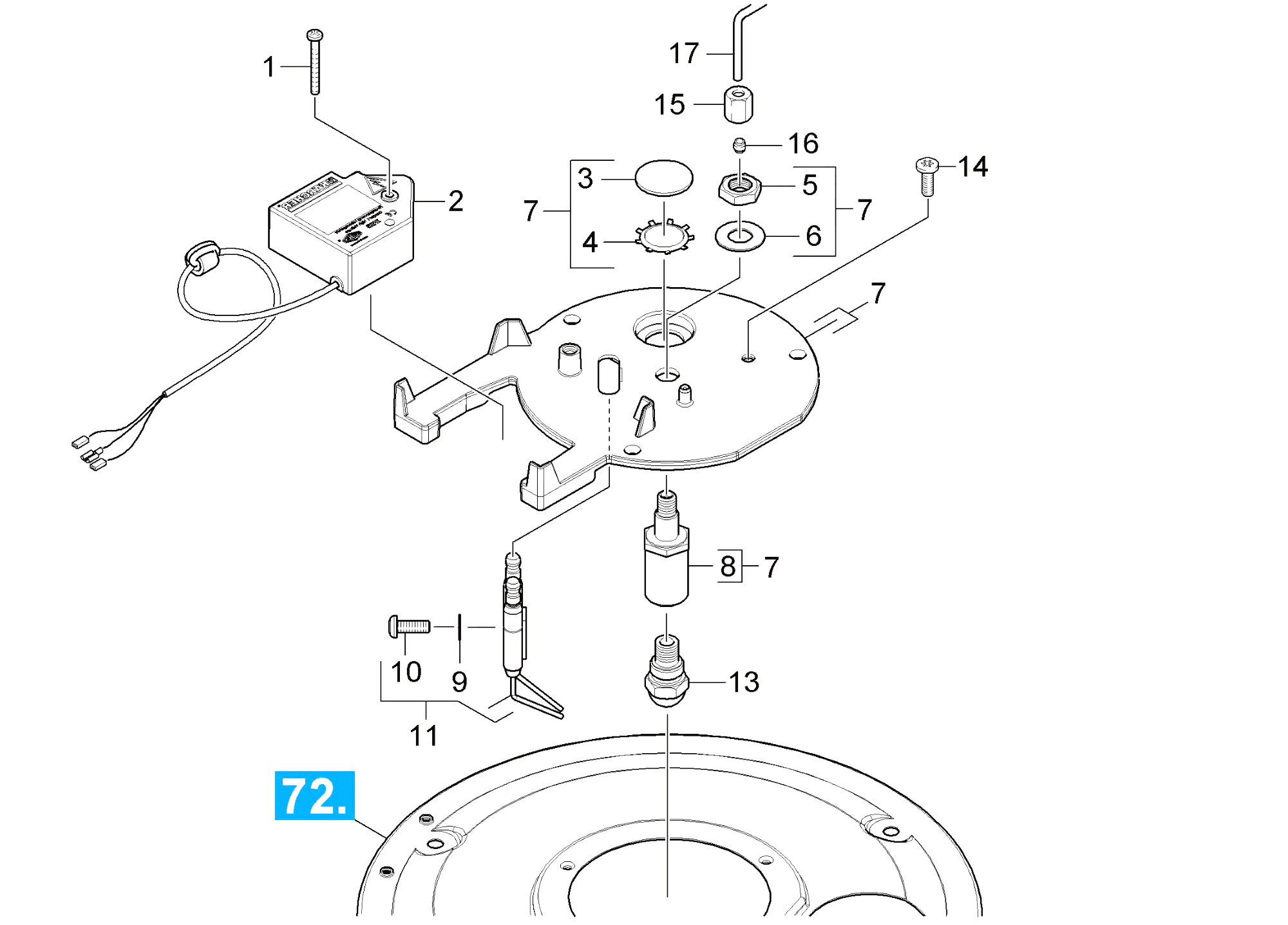

Karcher (Керхер) Крышка горелки (0.114-754.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-240.0	Screw M5x40-ST-A2E (IN6RD)
1	5.322-103.0	Handle
1	4.775-463.0	HAND TRIGGER GUN EASY PRESS
2	4.622-036.0	Ignition transformer only for replacemen
2	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
2	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
3	6.278-018.0	Glass pane
3	7.307-017.0	Threaded pin M5x40 -St-45H-A2E ISO 4026
3	5.481-331.0	Slider
4	6.343-165.0	Serrated ring
4	5.304-070.0	Hexagonal head screw
5	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
5	7.401-931.0	Sphere 5 Kl3 -1.4401 DIN 5401
5	5.321-669.0	Handhold few
6	5.314-143.0	Pin fixing jet pipe
6	7.312-302.0	Spring washer B10-FST-A2E DIN 137
6	5.582-121.0	Valve disc
7	2.885-272.0	Spare part set hinge cover
7	4.654-288.0	Cover pressure boiler only for replaceme
7	5.404-082.0	Hollow screw
7	4.037-013.0	Hook
8	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
8	5.667-055.0	Nozzle holder
8	6.362-079.0	O-Ring seal 18,0 X 2,5
8	5.110-596.0	Sleeve
9	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
9	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
9	5.332-444.0	Helical spring
10	7.303-047.0	Screw M6x16 -St-R3R (In6Rd)
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
10	5.584-114.0	Valve pin
11	5.107-295.0	Bar handhold
11	2.638-974.0	Conversion kit ignition electrode
11	7.311-204.0	Hexagon nut M10-A4-70 ISO 4035
12	5.051-363.0	Moulded part rear panel
12	4.553-198.0	Piston complete only for replacement
13	5.033-725.0	Tool bag
13	6.415-775.0	Burner nozzle
13	6.362-468.0	O-Ring seal complete 1ST.-R.
14	5.762-420.0	Bracket plate
14	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
14	4.550-996.0	Cylinder head complete only for replacem
15	6.389-262.0	Union nut A 4-LL
16	6.389-263.0	Cutting ring d.4
16	4.422-991.0	Pressure gauge complete only for replace
17	5.423-400.0	Conduit fuel
17	4.132-007.0	Drain plug only for replacement
18	6.362-458.0	O-Ring seal 11,0x2,0-NBR 70
20	2.884-916.0	Valve (3 St?ck)
21	6.363-536.0	O-Ring seal 21x1,5
22	5.427-438.0	Manifold water intake
23	7.306-105.0	Screw M6x30 -8.8-R3R (In6Rd)
24	5.100-640.0	Sleeve
25	6.362-381.0	O-Ring seal 13x2 - NBR 70
26	4.580-581.0	Valve complete
27	6.362-427.0	O-Ring seal 15,0x2,0
28	4.580-594.0	Valve complete
29	4.440-895.0	Hose SDS
30	6.362-853.0	O-Ring seal 4,47x1,78
31	5.402-705.0	Joining piece
32	4.553-197.0	Piston complete only for replacement
33	6.363-037.0	O-Ring seal complete 1ST.-R.
34	5.115-796.0	Washer
35	5.332-268.0	Helical spring
36	5.411-148.0	Screw plug
37	5.367-030.0	Diaphragm
38	5.034-494.0	Retaining bracket
