Karcher (Керхер) Крышка горелки (0.114-491.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

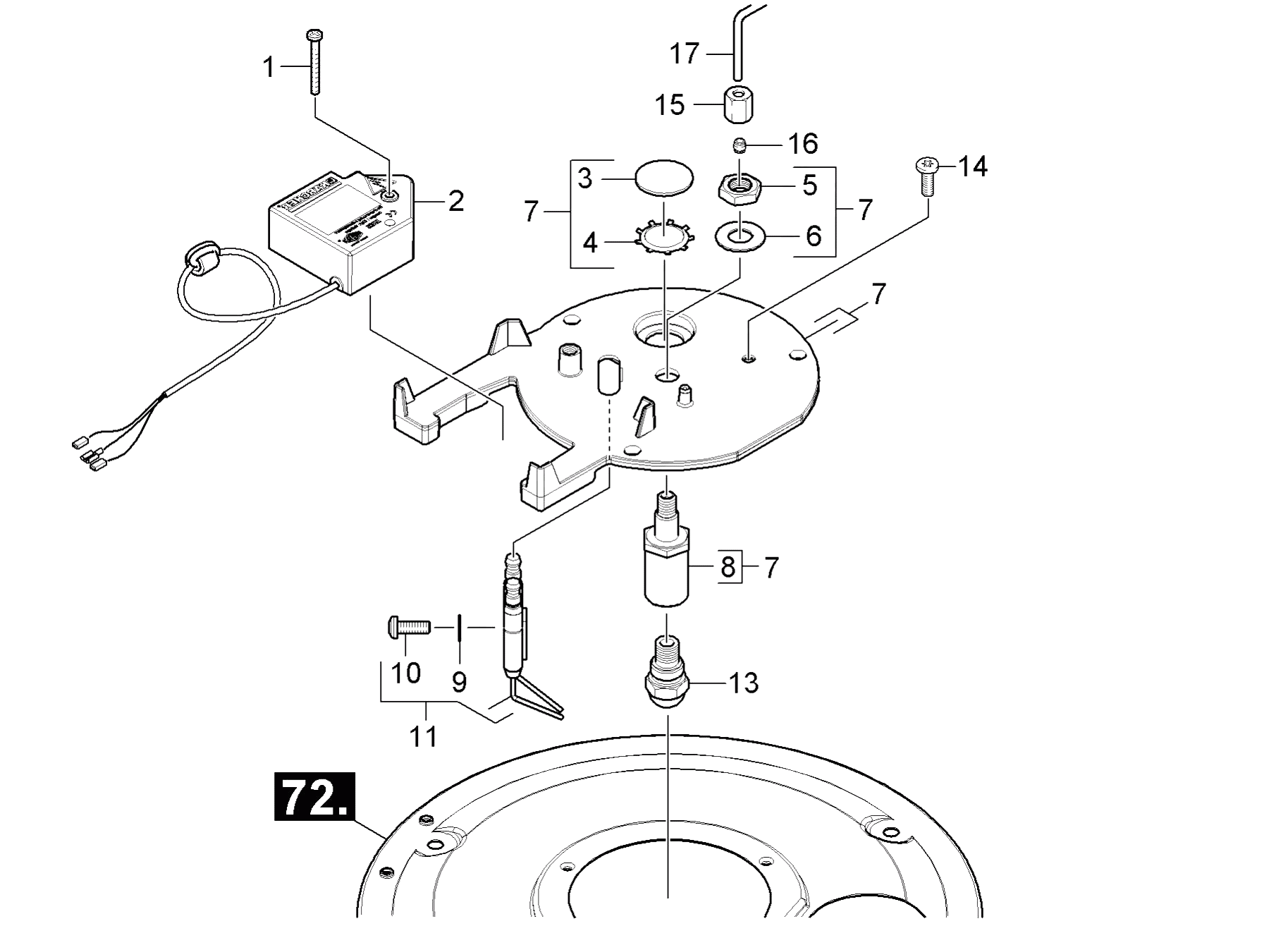

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-240.0	Screw M5x40-ST-A2E (IN6RD)
1	5.305-162.0	Shaped screw
2	4.622-036.0	Ignition transformer only for replacemen
2	6.362-482.0	O-Ring seal 10 x 1,5-NBR 70
3	6.278-018.0	Glass pane
3	5.332-057.0	Helical spring
4	6.343-165.0	Serrated ring
4	4.553-022.0	Piston
5	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
5	5.041-076.0	Clamp
6	5.044-196.0	Holder
6	7.312-302.0	Spring washer B10-FST-A2E DIN 137
6	2.883-384.0	Reed switch replacement
7	5.317-291.0	Bolt
7	4.654-288.0	Cover pressure boiler only for replaceme
7	4.427-198.0	Узловая деталь
8	5.667-055.0	Nozzle holder
8	6.414-566.0	Strainer WMS
9	5.841-379.0	Control panel
9	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
9	6.303-122.0	M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
10	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	2.638-974.0	Conversion kit ignition electrode
13	6.415-664.0	Burner nozzle
14	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
15	6.389-262.0	Union nut A 4-LL
16	6.389-263.0	Cutting ring d.4
17	5.423-417.0	Conduit fuel
27	6.362-427.0	O-Ring seal 15,0x2,0
28	4.580-594.0	Valve complete
29	4.440-895.0	Hose SDS
30	6.362-853.0	O-Ring seal 4,47x1,78
31	5.402-705.0	Joining piece
32	4.553-197.0	Piston complete only for replacement
33	6.363-037.0	O-Ring seal complete 1ST.-R.
34	5.115-796.0	Washer
35	5.332-268.0	Helical spring
36	5.411-148.0	Screw plug
37	5.367-030.0	Diaphragm
38	5.034-494.0	Retaining bracket
39	4.744-225.0	Switch complete
40	4.744-224.0	Switch complete
41	5.003-062.0	Plate
42	6.362-533.0	O-Ring seal 14,0 X 1,5-NBR 70
