Karcher (Керхер) Крышка горелки (0.114-041.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

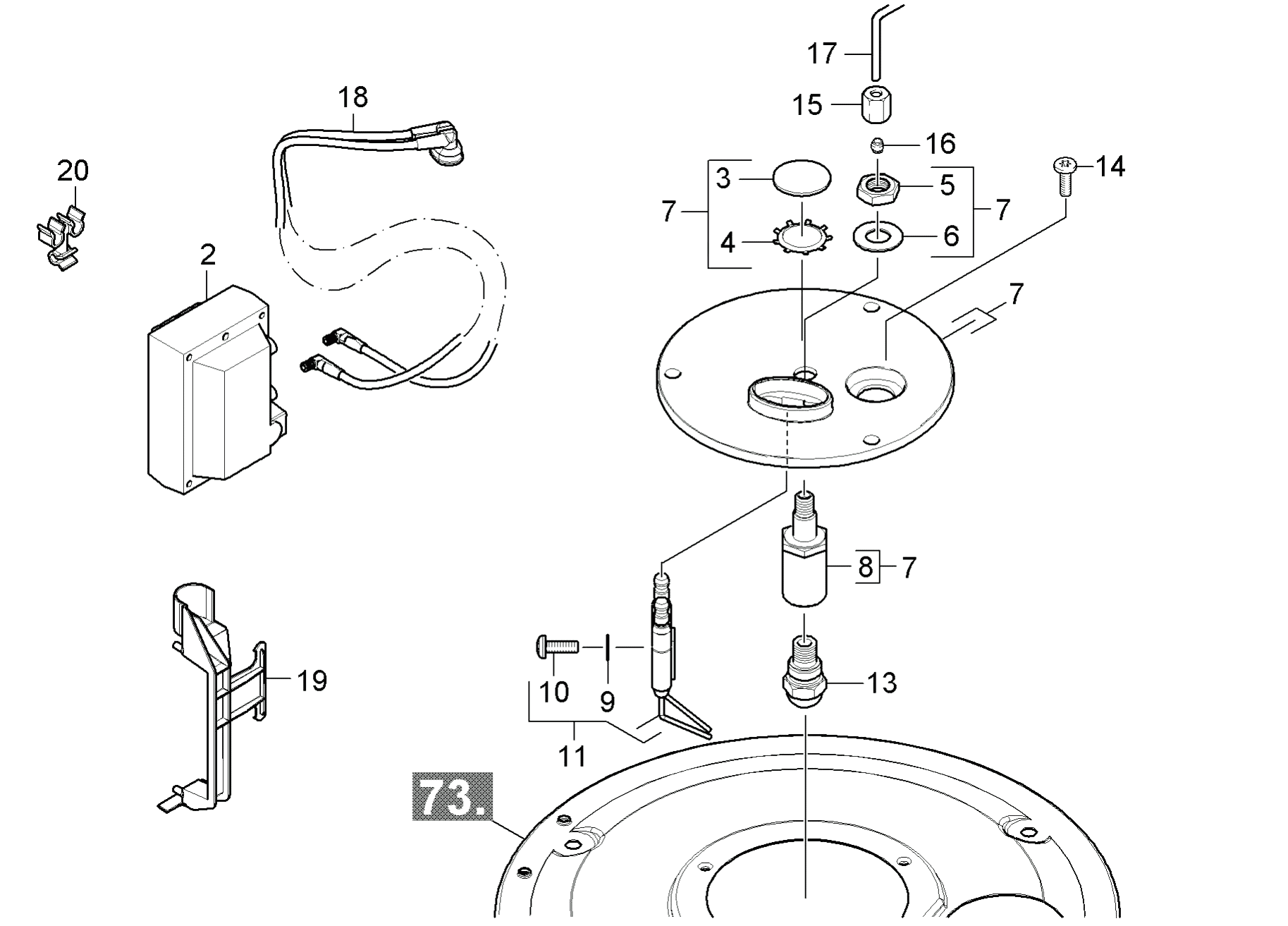

REF.	АРТИКУЛ	ОПИСАНИЕ
2	6.622-342.0	Ignition transformer -400V , 50 Hz
3	6.278-018.0	Glass pane
4	6.343-165.0	Serrated ring
5	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	5.582-121.0	Valve disc
6	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	5.404-082.0	Hollow screw
7	4.654-218.0	Cover pressure boiler
8	6.362-079.0	O-Ring seal 18,0 X 2,5
8	5.667-055.0	Nozzle holder
9	5.332-444.0	Helical spring
9	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
10	5.584-114.0	Valve pin
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	5.311-204.0	Hexagon nut M22x1,5
11	2.638-974.0	Conversion kit ignition electrode
12	4.553-198.0	Piston complete only for replacement
13	6.362-468.0	O-Ring seal complete 1ST.-R.
13	6.415-761.0	Nozzle 1,25 GPH 45 G ES
14	4.551-036.0	Cylinder head complete only for replacem
14	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
15	6.389-262.0	Union nut A 4-LL
16	6.362-703.0	O-Ring seal 6,0x1,5-NBR 70
16	6.389-263.0	Cutting ring d.4
17	5.583-146.0	Valve screw
17	5.423-400.0	Conduit fuel
18	6.362-481.0	O-Ring seal 14,0 x 2,0 NBR 80
18	4.821-124.0	Ignition cable complete
19	6.363-003.0	O-Ring seal 13,0 X 2,0-NBR 90
19	5.424-155.0	Fixing ignition transformer
20	2.884-512.0	Valve (3 Stueck)
20	6.647-527.0	Holder
21	6.363-536.0	O-Ring seal 21x1,5
22	5.427-439.0	Manifold water intake
23	7.306-043.0	Cylinder head screw M8x30 -8.8-A2E ISO
