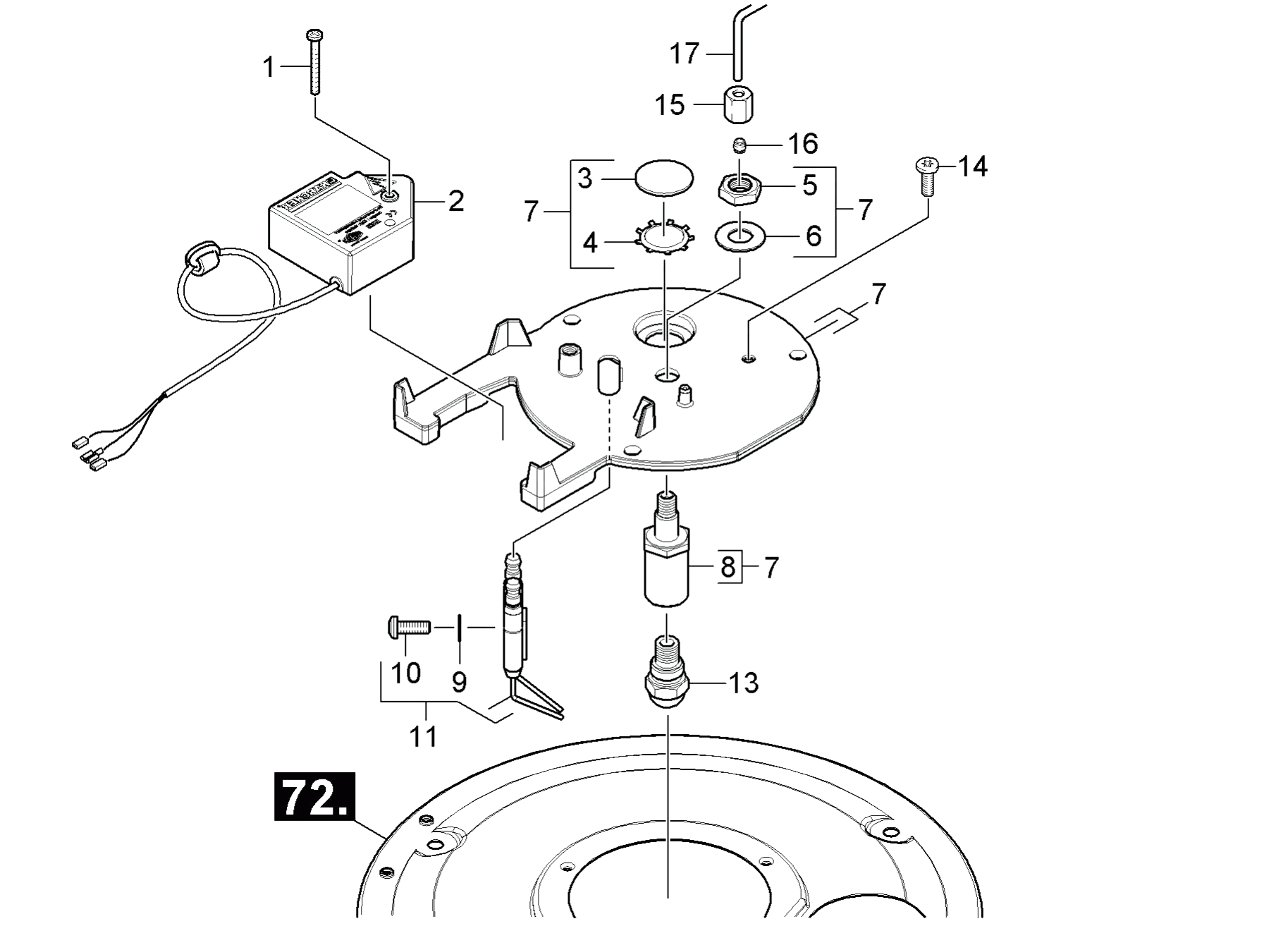

Karcher (Керхер) Крышка горелки (0.113-388.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
7.303-240.0 |
Screw M5x40-ST-A2E (IN6RD) |
|
| 1 |
5.322-103.0 |
Handle |
|
| 1 |
4.775-466.0 |
Hand trigger gun |
|
| 1 |
5.321-996.0 |
Sliding handle |
|
| 1 |
5.321-579.0 |
Handle |
|
| 1 |
4.403-002.0 |
Coupler |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 2 |
4.622-031.0 |
Ignition transformer only for replacemen |
|
| 2 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
5.332-236.0 |
Helical spring |
|
| 2 |
4.622-036.0 |
Ignition transformer only for replacemen |
|
| 2 |
7.343-069.0 |
Locking ring 25x1,2-1.4122 DIN 471 |
|
| 3 |
6.278-018.0 |
Glass pane |
|
| 3 |
7.307-017.0 |
Threaded pin M5x40 -St-45H-A2E ISO 4026 |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
5.316-318.0 |
Bolt |
|
| 3 |
5.321-668.0 |
Handle |
|
| 3 |
5.317-765.0 |
Bolt closure cover |
|
| 4 |
6.343-165.0 |
Serrated ring |
|
| 4 |
5.304-070.0 |
Hexagonal head screw |
|
| 4 |
5.069-290.0 |
Крышка neue C-Klasse |
|
| 4 |
4.775-526.0 |
Rotary controller 270 l |
|
| 4 |
5.069-386.0 |
Device cover Grau HDS-C Neu |
|
| 5 |
5.424-162.0 |
Fixing jet pipe |
|
| 5 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 5 |
7.401-931.0 |
Sphere 5 Kl3 -1.4401 DIN 5401 |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
5.424-139.0 |
Fixing jet pipe |
|
| 5 |
6.390-025.0 |
High pressure hose DN 8 |
|
| 6 |
5.314-143.0 |
Pin fixing jet pipe |
|
| 6 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 6 |
5.582-121.0 |
Valve disc |
|
| 6 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 7 |
2.885-272.0 |
Spare part set hinge cover |
|
| 7 |
4.654-288.0 |
Cover pressure boiler only for replaceme |
|
| 7 |
5.404-082.0 |
Hollow screw |
|
| 7 |
4.037-013.0 |
Hook |
|
| 8 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 8 |
5.667-055.0 |
Nozzle holder |
|
| 8 |
6.362-079.0 |
O-Ring seal 18,0 X 2,5 |
|
| 8 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 9 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 9 |
7.312-304.0 |
Spring washer B 5-FST-A2E DIN 137 |
|
| 9 |
5.332-444.0 |
Helical spring |
|
| 9 |
4.421-739.0 |
Adapter pipelines AVS-M22x1,5 |
|
| 9 |
4.037-013.0 |
Hook |
|
| 10 |
7.303-047.0 |
Screw M6x16 -St-R3R (In6Rd) |
|
| 10 |
7.306-217.0 |
Screw M5x14 -8.8-R2R (In6Rd) |
|
| 10 |
5.584-114.0 |
Valve pin |
|
| 10 |
5.321-669.0 |
Handhold few |
|
| 11 |
5.107-295.0 |
Bar handhold |
|
| 11 |
2.638-974.0 |
Conversion kit ignition electrode |
|
| 11 |
5.311-204.0 |
Hexagon nut M22x1,5 |
|
| 11 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 12 |
5.051-363.0 |
Moulded part rear panel |
|
| 12 |
4.553-198.0 |
Piston complete only for replacement |
|
| 12 |
5.050-912.0 |
Фасонная деталь задняя стенка |
|
| 12 |
5.481-331.0 |
Slider |
|
| 13 |
6.415-664.0 |
Burner nozzle |
|
| 13 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 13 |
5.033-725.0 |
Tool bag |
|
| 14 |
5.762-420.0 |
Bracket plate |
|
| 14 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 14 |
4.550-997.0 |
Cylinder head complete only for replacem |
|
| 14 |
5.110-596.0 |
Sleeve |
|
| 15 |
6.389-262.0 |
Union nut A 4-LL |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 16 |
6.389-263.0 |
Cutting ring d.4 |
|
| 16 |
4.422-991.0 |
Pressure gauge complete only for replace |
|
| 17 |
5.423-417.0 |
Conduit fuel |
|
| 17 |
4.132-007.0 |
Drain plug only for replacement |
|
| 18 |
6.362-458.0 |
O-Ring seal 11,0x2,0-NBR 70 |
|
| 20 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 21 |
6.363-536.0 |
O-Ring seal 21x1,5 |
|
| 22 |
5.427-438.0 |
Manifold water intake |
|
| 23 |
7.306-105.0 |
Screw M6x30 -8.8-R3R (In6Rd) |
|
| 24 |
5.110-815.0 |
Sleeve |
|
| 25 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 26 |
4.580-581.0 |
Valve complete |
|
| 27 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
| 28 |
4.580-594.0 |
Valve complete |
|
| 29 |
4.440-895.0 |
Hose SDS |
|
| 30 |
6.362-853.0 |
O-Ring seal 4,47x1,78 |
|
| 31 |
5.402-705.0 |
Joining piece |
|
| 32 |
4.553-197.0 |
Piston complete only for replacement |
|
| 33 |
6.363-037.0 |
O-Ring seal complete 1ST.-R. |
|
| 34 |
5.115-796.0 |
Washer |
|
| 35 |
5.332-268.0 |
Helical spring |
|
| 36 |
5.411-148.0 |
Screw plug |
|
| 37 |
5.367-030.0 |
Diaphragm |
|
| 38 |
5.034-494.0 |
Retaining bracket |
|
| 39 |
4.744-225.0 |
Switch complete |
|
| 40 |
4.744-224.0 |
Switch complete |
|
| 41 |
5.003-062.0 |
Plate |
|
| 42 |
6.362-533.0 |
O-Ring seal 14,0 X 1,5-NBR 70 |
|
