Karcher (Керхер) Крышка горелки (0.113-101.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

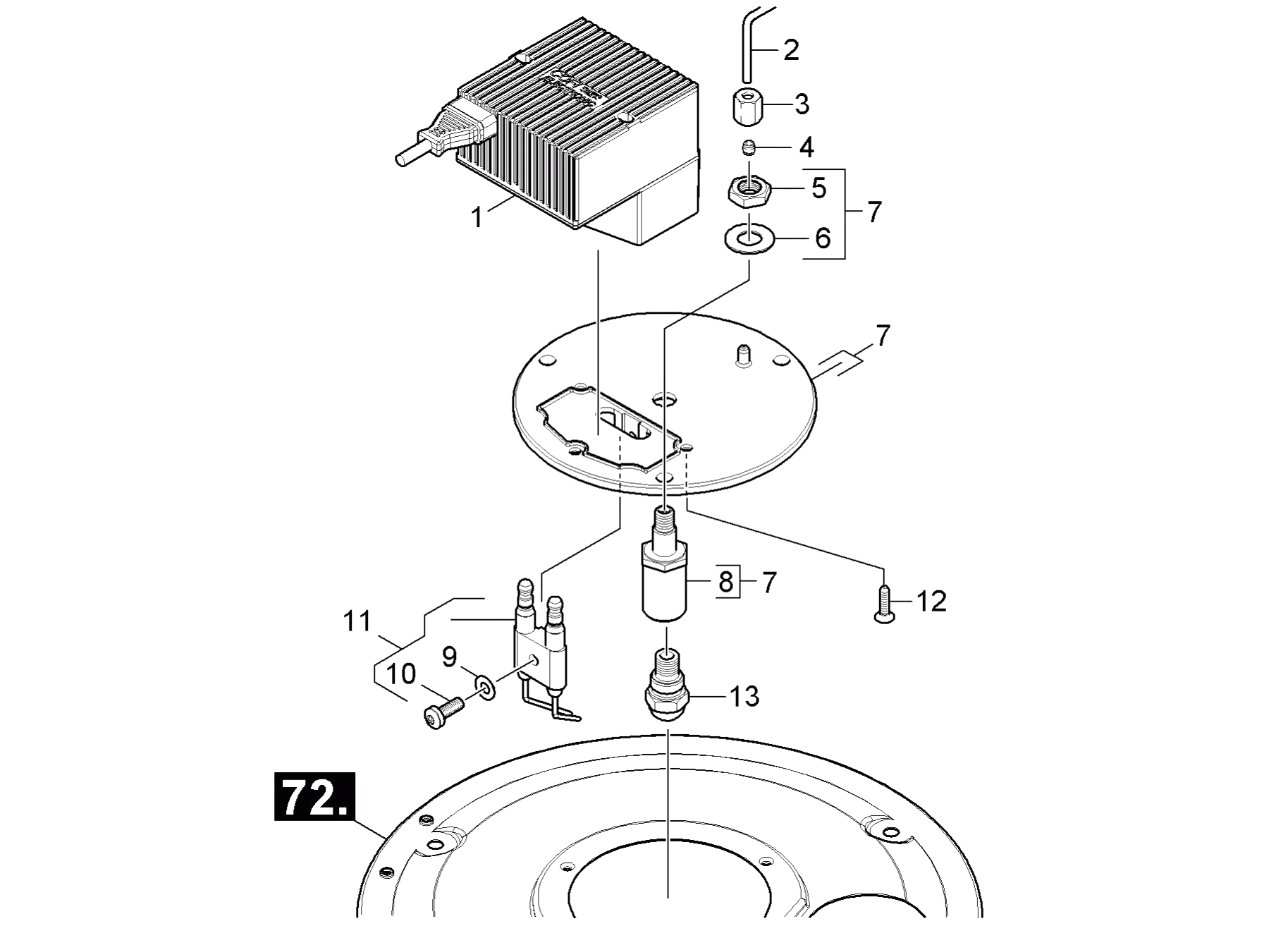

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.622-027.0	Ignition transformer only for replacemen
2	5.423-417.0	Conduit fuel
3	6.389-262.0	Union nut A 4-LL
4	6.389-263.0	Cutting ring d.4
5	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	4.654-296.0	Cover pressure boiler only for replaceme
8	5.667-055.0	Nozzle holder
9	7.312-304.0	Spring washer B 5-FST-A2E DIN 137
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	2.638-974.0	Conversion kit ignition electrode
12	7.303-125.0	Countersunk screw 4x16 -10.9-R2R (In6Rd
13	6.415-933.0	Burner nozzle
17	6.362-169.0	O-Ring seal 12,0 X 2,0
18	5.583-096.0	Valve screw
19	5.034-494.0	Retaining bracket
21	4.553-204.0	Piston complete only for replacement
22	6.363-074.0	O-Ring seal complete
23	6.362-528.0	O-Ring seal 9,5 X 2,0
26	5.365-284.0	Profile gasket
27	7.306-106.0	Cylinder head screw M8x70 -8.8-A2E ISO4
28	5.064-230.0	Suction cover
29	5.005-314.0	Plate suction cover
30	7.306-129.0	Screw M6x40 -8.8-R3R (In6Rd)
31	6.362-481.0	O-Ring seal 14,0 x 2,0 NBR 80
32	5.402-727.0	Suction nipple
33	7.303-108.0	Screw 5x20 -10.9-R2R (In6Rd)
34	4.550-999.0	Cylinder head complete only for replacem
35	4.584-022.0	Valve pin complete
36	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
37	4.769-032.0	Nozzle insert
38	5.363-545.0	Seal
39	5.363-336.0	Seal
40	4.730-162.0	Filter complete
41	6.362-078.0	O-Ring seal 13,3x2,4
42	5.443-285.0	Hose stem
43	5.310-167.0	"""Nut G 3/4"""" """
