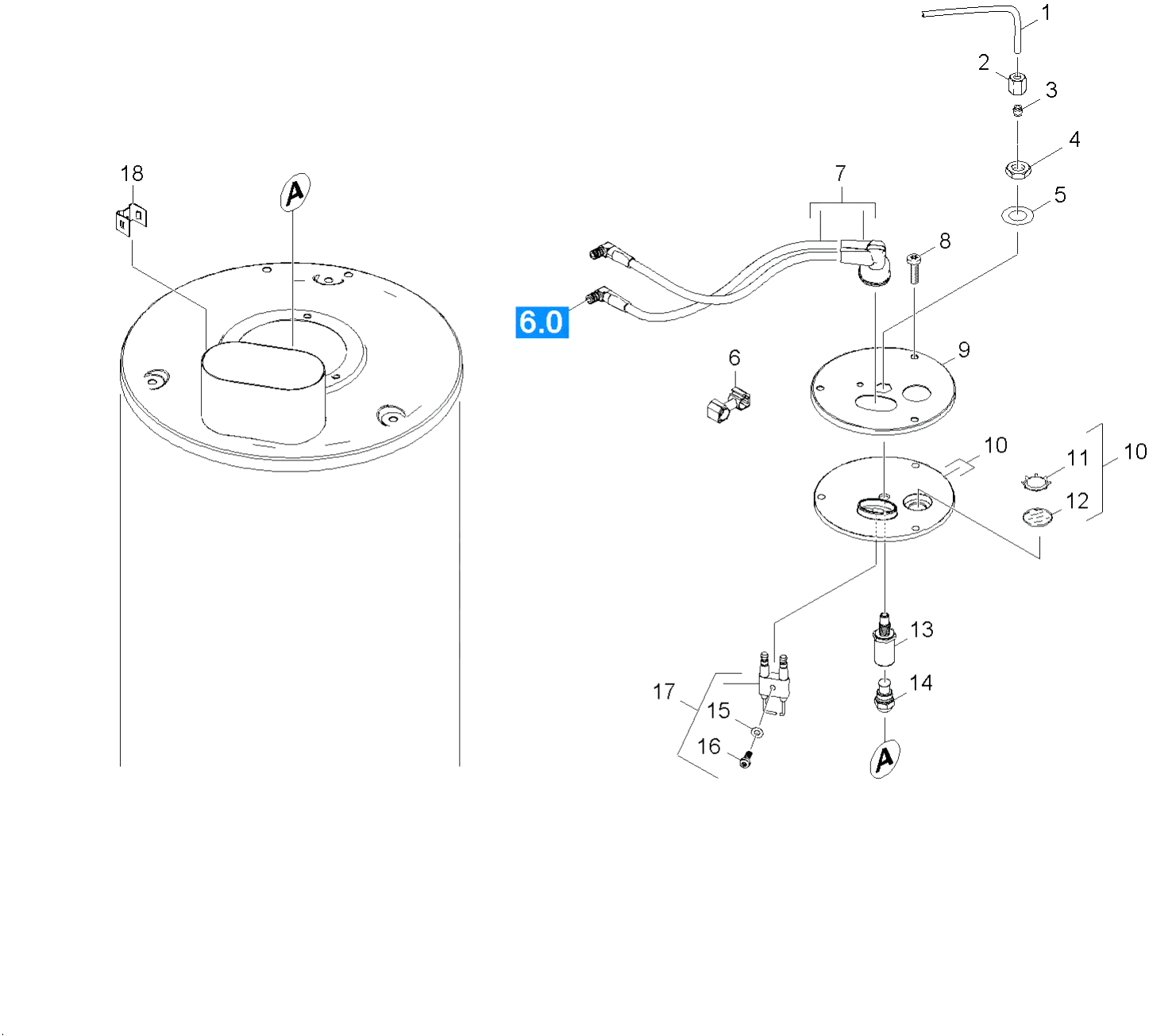

Karcher (Керхер) Крышка горелки (0.105-765.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
5.423-347.0 |
Conduit fuel |
|
| 1 |
7.303-069.0 |
Screw M 8x25-ST-R3R (IN6RD) |
|
| 1 |
5.321-579.0 |
Handle |
|
| 1 |
5.587-214.0 |
Valve housing |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
4.403-002.0 |
Coupler |
|
| 2 |
6.389-262.0 |
Union nut A 4-LL |
|
| 2 |
5.321-830.0 |
Sliding handle left |
|
| 2 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 2 |
5.364-095.0 |
Flat gasket |
|
| 2 |
7.343-069.0 |
Locking ring 25x1,2-1.4122 DIN 471 |
|
| 3 |
6.389-263.0 |
Cutting ring d.4 |
|
| 3 |
5.321-831.0 |
Sliding handle right |
|
| 3 |
7.307-017.0 |
Threaded pin M5x40 -St-45H-A2E ISO 4026 |
|
| 3 |
5.584-085.0 |
Valve pin |
|
| 3 |
5.321-668.0 |
Handle |
|
| 4 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 4 |
7.303-209.0 |
Screw 6x50 -10.9-R2R (K-In6Rd) |
|
| 4 |
5.304-070.0 |
Hexagonal head screw |
|
| 4 |
5.481-256.0 |
Lever |
|
| 4 |
4.775-471.0 |
Rotary controller 700L |
|
| 5 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 5 |
5.501-070.0 |
Hinge cover |
|
| 5 |
5.585-030.0 |
Float |
|
| 5 |
7.401-931.0 |
Sphere 5 Kl3 -1.4401 DIN 5401 |
|
| 5 |
6.391-351.0 |
Hose assembly only for replacement DN8 4 |
|
| 6 |
6.647-527.0 |
Holder |
|
| 6 |
5.317-228.0 |
Bolt hinge |
|
| 6 |
4.070-658.0 |
Tank complete |
|
| 6 |
5.582-121.0 |
Valve disc |
|
| 6 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 7 |
4.821-100.0 |
Ignition cable complete |
|
| 7 |
5.317-291.0 |
Bolt |
|
| 7 |
4.747-097.0 |
Level probe -nur f?r Ersatz- |
|
| 7 |
5.404-082.0 |
Hollow screw |
|
| 8 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 8 |
4.066-379.0 |
Крышка в сборе HDS 1218 |
|
| 8 |
5.310-062.0 |
Nut |
|
| 8 |
4.440-796.0 |
Hose SDS |
|
| 9 |
5.654-059.0 |
Cover pressure boiler |
|
| 9 |
7.303-086.0 |
Screw 5x30 -10.9-R2R (K-In6Rd) |
|
| 9 |
5.332-444.0 |
Helical spring |
|
| 9 |
4.037-013.0 |
Hook |
|
| 10 |
4.654-218.0 |
Cover pressure boiler |
|
| 10 |
5.033-381.0 |
Profile |
|
| 10 |
5.443-312.0 |
Hose stem |
|
| 10 |
5.584-114.0 |
Valve pin |
|
| 10 |
5.321-669.0 |
Handhold few |
|
| 11 |
6.343-165.0 |
Serrated ring |
|
| 11 |
7.303-106.0 |
Screw 4x12 -10.9-R2R (IN6RD) |
|
| 11 |
6.391-612.0 |
Piece of tube only for replacement |
|
| 11 |
5.311-204.0 |
Hexagon nut M22x1,5 |
|
| 11 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 12 |
6.278-018.0 |
Glass pane |
|
| 12 |
5.112-843.0 |
Bush |
|
| 12 |
4.553-287.0 |
Piston complete |
|
| 12 |
5.481-331.0 |
Slider |
|
| 13 |
5.667-055.0 |
Nozzle holder |
|
| 13 |
5.033-344.0 |
Крышка DGT HDS 13/20 |
|
| 13 |
5.443-553.0 |
Connection piece |
|
| 13 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 14 |
6.415-530.0 |
Nozzle 60GRAD H |
|
| 14 |
5.332-236.0 |
Helical spring |
|
| 14 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 14 |
5.402-746.0 |
Connection piece |
|
| 14 |
5.110-596.0 |
Sleeve |
|
| 15 |
7.312-304.0 |
Spring washer B 5-FST-A2E DIN 137 |
|
| 15 |
5.316-318.0 |
Bolt |
|
| 15 |
4.730-124.0 |
Filter complete |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 16 |
7.306-217.0 |
Screw M5x14 -8.8-R2R (In6Rd) |
|
| 16 |
5.424-139.0 |
Fixing jet pipe |
|
| 16 |
6.414-681.0 |
Filter cartridge |
|
| 16 |
4.580-611.0 |
Valve complete |
|
| 17 |
2.638-974.0 |
Conversion kit ignition electrode |
|
| 17 |
5.314-143.0 |
Pin fixing jet pipe |
|
| 17 |
5.363-613.0 |
Seal |
|
| 18 |
5.034-834.0 |
Holder probe |
|
| 18 |
6.303-497.0 |
Screw M8x35-8.8-A2E (IN6RD) |
|
| 18 |
5.583-146.0 |
Valve screw |
|
| 18 |
5.064-107.0 |
Cover |
|
| 19 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 19 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 19 |
7.373-022.0 |
Hose clip A-16-27x9 -W2-2 DIN3017 |
|
| 20 |
6.362-377.0 |
O-Ring seal 38,0 X 2,0-NBR 70 |
|
| 20 |
2.884-512.0 |
Valve (3 Stueck) |
|
| 20 |
6.388-719.0 |
FLEX HOSE(CUT TO REQD LENGTH-M'S) |
|
| 21 |
5.425-495.0 |
CONNECTION PIECE DGT |
|
| 21 |
6.363-003.0 |
O-Ring seal 13,0 X 2,0-NBR 90 |
|
| 21 |
5.310-061.0 |
"""Nut R 3/4"""" """ |
|
| 22 |
2.885-055.0 |
Circuit board |
|
| 22 |
4.550-937.0 |
Cylinder head complete only for replacem |
|
| 22 |
5.443-224.0 |
Hose stem |
|
| 22 |
4.550-887.0 |
Cylinder head complete |
|
| 23 |
5.044-889.0 |
Holder circuit board |
|
| 23 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 23 |
6.363-536.0 |
O-Ring seal 21x1,5 |
|
| 24 |
5.033-155.0 |
Flap |
|
| 24 |
5.365-289.0 |
Rubber bushing transmitter feeder |
|
| 24 |
5.427-418.0 |
Manifold water intake |
|
| 25 |
5.033-113.0 |
Flap |
|
| 25 |
4.686-030.0 |
Solenoid valve only for replacement |
|
| 25 |
7.306-043.0 |
Cylinder head screw M8x30 -8.8-A2E ISO |
|
| 26 |
5.190-249.0 |
Strip front |
|
| 26 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 27 |
5.190-250.0 |
Strip rear |
|
| 27 |
6.641-474.0 |
Cable tape 8-210 |
|
| 27 |
6.362-703.0 |
O-Ring seal 6,0x1,5-NBR 70 |
|
| 28 |
5.317-220.0 |
Bolt |
|
| 28 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 28 |
5.110-867.0 |
Sleeve |
|
| 29 |
5.033-112.0 |
Storage compartment |
|
| 29 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
| 30 |
5.412-015.0 |
Closure cover |
|
| 30 |
2.882-692.0 |
Conversion kit holder large Kessel |
|
| 30 |
4.580-581.0 |
Valve complete |
|
| 31 |
6.431-274.0 |
Tackle cover |
|
| 31 |
6.362-853.0 |
O-Ring seal 4,47x1,78 |
|
| 32 |
4.064-014.0 |
Cover complete RM 110 |
|
| 32 |
5.402-705.0 |
Joining piece |
|
| 33 |
5.033-118.0 |
Covering cap box DGT |
|
| 33 |
6.363-037.0 |
O-Ring seal complete 1ST.-R. |
|
| 34 |
5.363-300.0 |
Joint ring |
|
| 34 |
4.553-197.0 |
Piston complete only for replacement |
|
| 35 |
5.115-796.0 |
Washer |
|
| 36 |
5.332-268.0 |
Helical spring |
|
| 37 |
5.411-148.0 |
Screw plug |
|
| 38 |
5.367-030.0 |
Diaphragm |
|
| 39 |
5.034-494.0 |
Retaining bracket |
|
| 40 |
4.580-594.0 |
Valve complete |
|
| 41 |
4.744-225.0 |
Switch complete |
|
| 42 |
4.744-224.0 |
Switch complete |
|
| 43 |
5.411-504.0 |
Screw plug |
|
| 45 |
6.362-079.0 |
O-Ring seal 18,0 X 2,5 |
|
| 46 |
6.362-176.0 |
O-Ring seal 6,07x1,78 |
|
| 47 |
5.424-148.0 |
Sealing cone |
|
| 48 |
6.362-151.0 |
O-Ring d. 10 x 2 NBR 70 |
|
| 49 |
7.383-004.0 |
Union nut B1 LL15 -Ms DIN3870 |
|
| 50 |
4.580-750.0 |
Valve pressure discharge only for replac |
|
| 51 |
6.391-341.0 |
Hose chemistry DN 6 |
|
| 52 |
2.885-145.0 |
Spare part set valve |
|
| 53 |
5.581-239.0 |
Valve seat |
|
| 54 |
6.362-386.0 |
O-Ring seal 5,0 x 1,5-NBR 80 |
|
| 55 |
6.389-768.0 |
Hose clip |
|
| 56 |
6.388-409.0 |
T-Hose nozzle |
|
| 57 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 58 |
5.443-596.0 |
Nipple |
|
