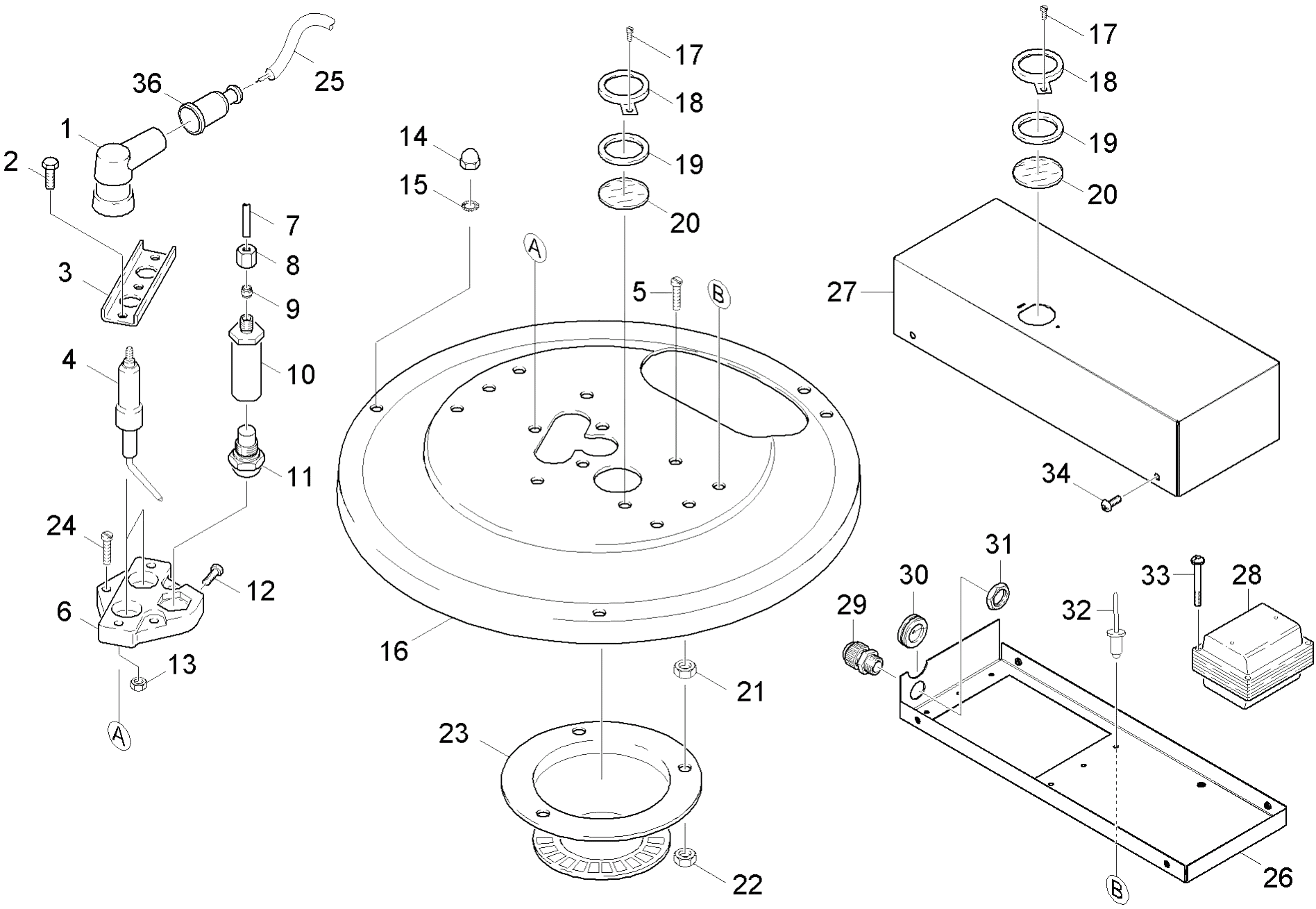

Karcher (Керхер) Крышка горелки (0.105-740.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
6.472-925.0 |
Pump oil burner only for replacement |
|
| 1 |
6.618-109.0 |
Spark plug connector with resistor |
|
| 1 |
6.472-107.0 |
Screw ventilation |
|
| 1 |
5.063-274.0 |
Cover |
|
| 2 |
7.309-019.0 |
Hexagonal head screw M 5x14-8.8-A2E TORX |
|
| 2 |
6.472-106.0 |
O-Ring seal 5,0 X 1,8 |
|
| 2 |
7.303-084.0 |
Screw 4x25 -10.9-R2R (K-In6Rd) |
|
| 3 |
5.004-228.0 |
Strap |
|
| 3 |
6.472-111.0 |
O-Ring seal 32,0 X 1,6 |
|
| 3 |
5.600-021.0 |
Impeller |
|
| 4 |
2.883-083.0 |
Spare part set |
|
| 4 |
6.472-112.0 |
O-Ring seal 10,0 x 2,4 NBR 70 |
|
| 4 |
6.343-166.0 |
Tolerance ring D14X8 |
|
| 5 |
6.472-113.0 |
Filter cartridge |
|
| 5 |
5.100-096.0 |
Shaft |
|
| 6 |
5.668-001.0 |
Spark holder |
|
| 6 |
6.472-123.0 |
Filter housing complete |
|
| 6 |
7.401-115.0 |
Ball bearing 6002-2RS -WAELZLAGST DIN 62 |
|
| 7 |
5.423-228.0 |
Conduit |
|
| 7 |
6.472-122.0 |
Protecting cap |
|
| 7 |
6.343-031.0 |
Tolerance ring 15X12 |
|
| 8 |
6.386-506.0 |
Union nut M8X1 |
|
| 8 |
6.472-109.0 |
Housing spring |
|
| 8 |
5.625-225.0 |
Belt pulley |
|
| 9 |
6.386-505.0 |
Clamping ring D4 |
|
| 9 |
6.388-608.0 |
Tightening strap |
|
| 10 |
5.667-048.0 |
Nozzle holder |
|
| 10 |
6.472-108.0 |
Pin |
|
| 10 |
5.178-025.0 |
Cloth collar |
|
| 11 |
6.415-040.0 |
Nozzle 1,5 60G A |
|
| 11 |
6.303-320.0 |
Screw M 5x 20-St-R2R |
|
| 12 |
7.306-443.0 |
Винт с цилиндрической головкой М4х12 |
|
| 12 |
6.472-128.0 |
Diaphragm |
|
| 12 |
7.312-264.0 |
Washer 5-100HV-A3E ISO 7094 |
|
| 13 |
7.311-037.0 |
Hexagon nut M 5-CU2 ISO 4032 |
|
| 13 |
5.110-306.0 |
Sleeve |
|
| 14 |
7.311-380.0 |
Cap nut M6 -6-A2E DIN 1587 |
|
| 14 |
6.472-340.0 |
Knurled nut |
|
| 14 |
5.379-011.0 |
Rubber ring |
|
| 15 |
7.312-167.0 |
Toothed lock washer A6,4-FSt-A3E DIN 67 |
|
| 15 |
6.472-363.0 |
Coupler |
|
| 16 |
4.654-276.0 |
Крышка напорный резервуар только для зам |
|
| 16 |
6.472-377.0 |
Coupling element |
|
| 17 |
7.303-136.0 |
Sheet metal screw ST3,5X 6,5-ST-R2R (IN |
|
| 17 |
6.472-125.0 |
O-Ring seal 12,0 X 1,5 |
|
| 17 |
7.303-077.0 |
Sheet metal screw ST4,8X16-ST-A2R (IN6R |
|
| 18 |
5.000-590.0 |
Plate |
|
| 18 |
6.472-928.0 |
Solenoid valve complete only for replace |
|
| 18 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 19 |
5.364-100.0 |
Flat gasket |
|
| 19 |
6.472-120.0 |
O-Ring seal 28,5 X 1,6 |
|
| 19 |
5.606-002.0 |
Air flap |
|
| 20 |
6.278-014.0 |
Glass pane |
|
| 20 |
5.605-143.0 |
Housing |
|
| 21 |
7.311-003.0 |
Hexagon nut M6 -8-A2E ISO 4032 |
|
| 22 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 22 |
6.472-105.0 |
Seal axle |
|
| 23 |
4.663-082.0 |
Burner cage |
|
| 24 |
7.306-077.0 |
Screw M5x16 -8.8-R2R (In6Rd) |
|
| 25 |
6.641-180.0 |
Ignition cable |
|
| 26 |
5.051-000.0 |
Mounting plate ignition transformer |
|
| 27 |
5.051-119.0 |
Cover ignition transformer |
|
| 28 |
2.883-872.0 |
Spare part set ignition transformer |
|
| 29 |
6.641-355.0 |
Cable gland PG9 |
|
| 30 |
5.365-109.0 |
Profile gasket |
|
| 31 |
6.641-366.0 |
Locknut PG 9 |
|
| 32 |
7.315-005.0 |
Blind rivet 4,0x 6-A2/A2 ISO15983 |
|
| 33 |
7.303-045.0 |
Screw M5X 55-ST-A2R (IN6RD) |
|
| 34 |
7.303-030.0 |
Screw M4x8 -St-P2R (In6Rd) |
|
| 35 |
4.821-107.0 |
Cable complete ignition transformer |
|
| 36 |
6.641-754.0 |
RUBBER CAP |
|
