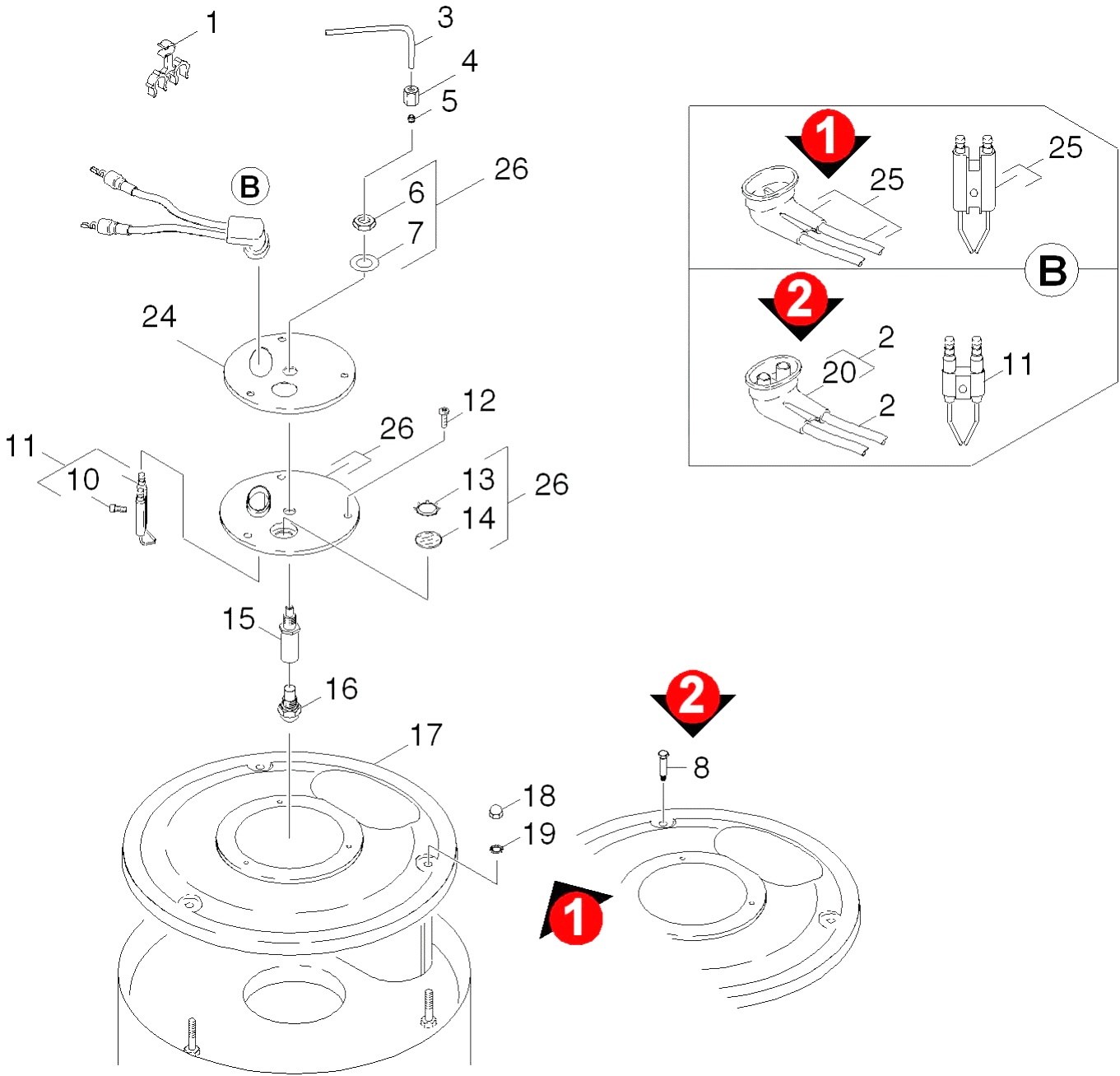

Karcher (Керхер) Крышка горелки (0.103-607.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.647-527.0	Holder
1	7.303-069.0	Screw M 8x25-ST-R3R (IN6RD)
1	4.775-463.0	HAND TRIGGER GUN EASY PRESS
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
2	5.321-830.0	Sliding handle left
2	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
3	5.031-914.0	Flap
3	5.423-187.0	Conduit fuel
3	5.321-831.0	Sliding handle right
3	5.481-331.0	Slider
4	5.100-335.0	Shaft switch CONDOR
4	6.389-262.0	Union nut A 4-LL
4	7.303-209.0	Screw 6x50 -10.9-R2R (K-In6Rd)
5	5.044-412.0	Holder (CONDOR-SCHAER)
5	6.389-263.0	Cutting ring d.4
5	5.501-083.0	Hinge cover black
5	5.321-669.0	Handhold few
6	7.303-045.0	Screw M5X 55-ST-A2R (IN6RD)
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
6	5.317-779.0	Bolt hinge black
7	6.631-428.0	Motor protecting switch -22-27A
7	6.631-196.0	Motor protecting switch
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
7	5.317-291.0	Bolt
7	4.037-013.0	Hook
8	6.686-173.0	Thermostat
8	6.303-258.0	Self-tapping screw
8	4.066-426.0	Device cover complete only for replaceme
8	5.110-596.0	Sleeve
9	6.651-421.0	Lens housing green
9	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
10	7.303-125.0	Countersunk screw 4x16 -10.9-R2R (In6Rd
10	5.033-381.0	Profile
11	2.638-974.0	Conversion kit ignition electrode
11	7.306-056.0	Screw M4x8 -8.8-R2R (In6Rd)
11	7.303-106.0	Screw 4x12 -10.9-R2R (IN6RD)
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
12	4.651-026.0	Pilot lamp only for replacement
13	6.343-165.0	Serrated ring
13	6.368-076.0	Ornamental hub cap D10/D12
13	5.033-929.0	Covering cap DGT
14	6.278-018.0	Glass pane
14	6.651-316.0	Lens housing red
14	5.332-236.0	Helical spring
15	5.667-055.0	Nozzle holder
15	6.630-368.0	Switch
15	5.317-765.0	Bolt closure cover
16	6.415-530.0	Nozzle 60GRAD H
16	5.424-162.0	Fixing jet pipe
17	5.654-046.0	Cover pressure boiler
17	5.314-143.0	Pin fixing jet pipe
18	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
18	6.303-497.0	Screw M8x35-8.8-A2E (IN6RD)
19	7.312-167.0	Toothed lock washer A6,4-FSt-A3E DIN 67
19	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
20	5.394-470.0	Protecting cap
20	6.362-377.0	O-Ring seal 38,0 X 2,0-NBR 70
21	5.425-495.0	CONNECTION PIECE DGT
22	2.885-055.0	Circuit board
23	5.044-889.0	Holder circuit board
24	5.654-059.0	Cover pressure boiler
24	5.033-155.0	Flap
25	2.638-976.0	Conversion kit ignition cable
25	5.033-113.0	Flap
26	4.654-218.0	Cover pressure boiler
26	5.190-249.0	Strip front
27	5.190-250.0	Strip rear
28	5.317-220.0	Bolt
29	5.033-112.0	Storage compartment
30	2.882-691.0	Conversion kit holder small Kessel
31	6.431-274.0	Tackle cover
