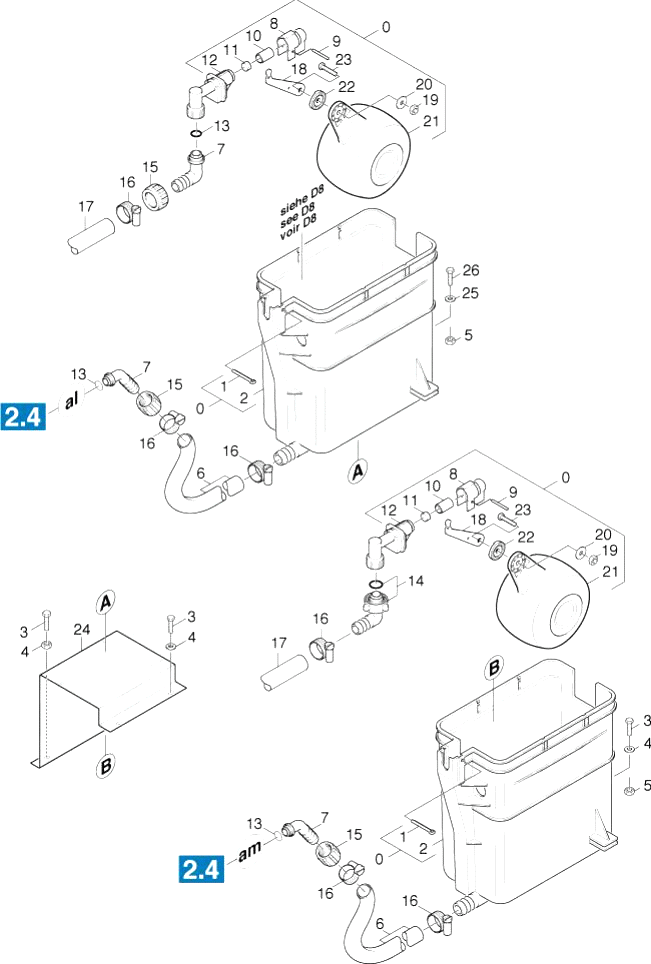

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 3.593-060.0 | Float valve | |
| 1 | 7.316-432.0 | Cotter 4x50 -St-A2E ISO 1234 | |
| 2 | 5.070-076.0 | Tank | |
| 3 | 7.306-092.0 | Screw M6x20-ST- 8.8-R3R (IN6RD) | |
| 4 | 7.312-003.0 | Washer 6 -200HV-A3E ISO 7090 | |
| 5 | 6.310-028.0 | Snap nut 4,8 | |
| 6 | 6.388-155.0 | Hose DN19 | |
| 7 | 5.443-285.0 | Hose stem | |
| 8 | 5.394-066.0 | Protection part | |
| 9 | 7.316-004.0 | Bolt A 3x25 -CuZn ISO 2340 | |
| 10 | 5.584-026.0 | Valve pin | |
| 11 | 5.364-095.0 | Flat gasket | |
| 12 | 5.587-103.0 | Valve housing | |
| 13 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 14 | 6.389-408.0 | """Elbow screw connector G 3/4"""" """ | |
| 15 | 5.310-062.0 | Nut | |
| 16 | 6.388-547.0 | Hose clip | |
| 17 | 6.388-924.0 | Water hose DN16 | |
| 18 | 5.481-029.0 | Lever | |
| 19 | 7.311-422.0 | Hexagon nut M 6-1.4305 ISO 10511 | |
| 20 | 7.312-279.0 | Washer 6-CuZn ISO 7093-1 | |
| 21 | 5.585-004.0 | Float | |
| 22 | 5.115-158.0 | Washer | |
| 23 | 7.306-194.0 | Screw M6x20 -A2-70 (In6Rd) | |
| 24 | 5.042-890.0 | Держатель емкость | |
| 25 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 26 | 7.303-077.0 | Sheet metal screw ST4,8X16-ST-A2R (IN6R |
