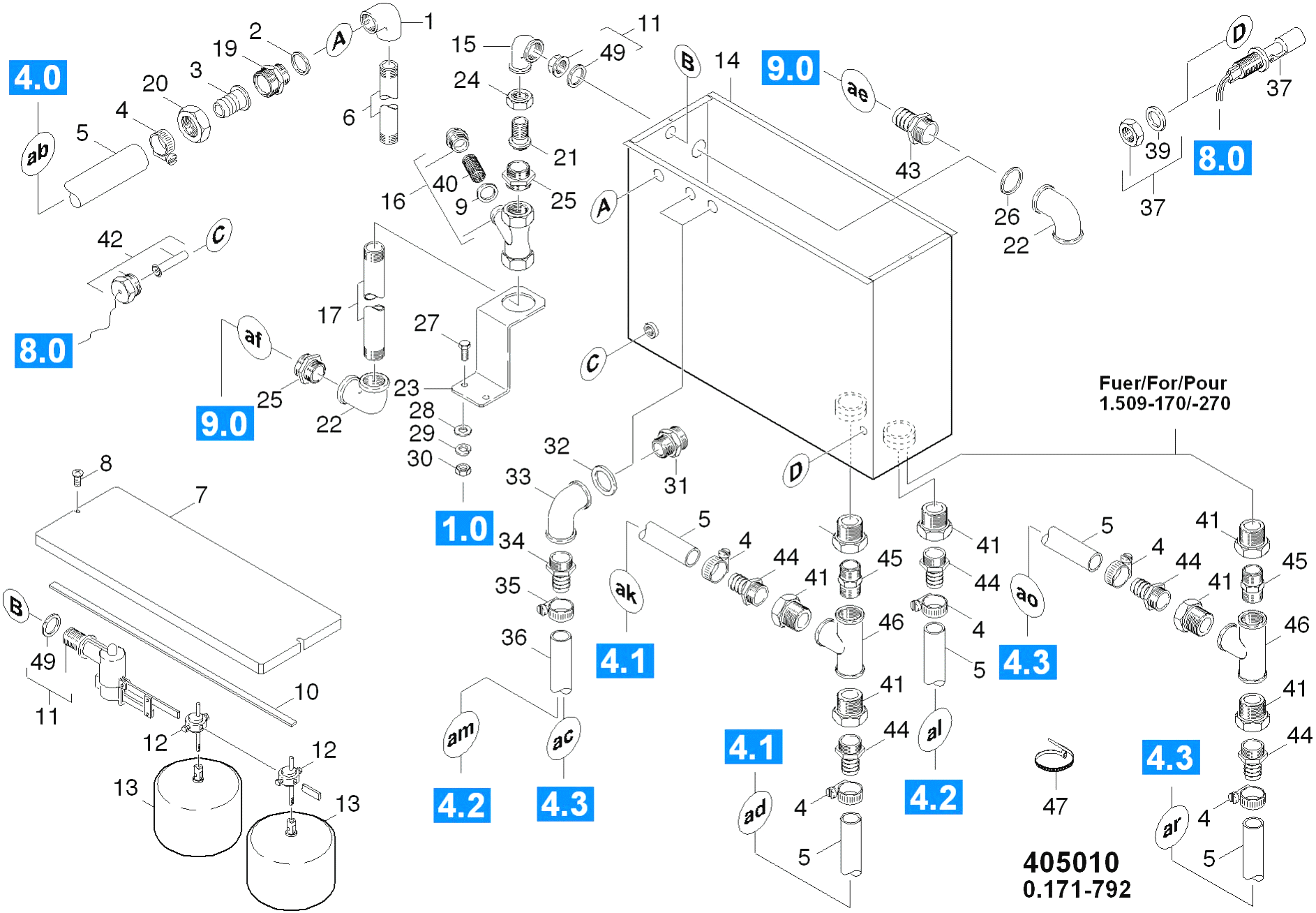

Karcher (Керхер) Поплавковый ящик (0.171-792.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.387-512.0	"""Angle 1""""-1.4571 DIN 2987 """
2	6.362-130.0	Seal 32x44x2-IT 200
3	6.388-403.0	"""Hose nozzle 1"""" """
4	6.388-521.0	Hose clip
5	6.388-153.0	Hose DN25
7	5.063-525.0	Cover
8	7.306-193.0	Screw M6x16 -A2-70 (In6Rd)
9	6.414-219.0	Seal
10	6.273-123.0	Sealing tape 16X6
11	6.413-192.0	Float valve
12	6.412-964.0	Adjusting bar
13	6.412-736.0	Float
14	4.070-176.0	Tank
15	6.395-078.0	"""Angle reduced 1 1/2"""" - 1 1/4"""" """
15	7.387-097.0	"""Angle A1-1 1/4""""-RG5 EN 10242 """
16	6.414-332.0	Dirt trap
17	6.387-648.0	"""Double nipple 1 1/2""""x165-1.4541 Aehn.DIN"""
19	6.386-011.0	"""Screw-in part R 1"""" - R 1 1/4"""" """
20	6.386-232.0	Union nut 1 1/4Z
21	5.401-140.0	Screw connector part
22	6.387-930.0	"""Angle A1-1 1/2""""-2.1096 """
23	5.042-439.0	Holder
24	6.386-411.0	Union nut 1 3/4Z
25	6.386-006.0	"""Screw-in part R 1 1/2""""-1 3/4"""" """
26	6.412-668.0	Seal
27	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
28	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
29	7.313-004.0	Spring washer B 8-FSt-A3E DIN 127
30	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
31	6.386-009.0	Screw-in part 1/2X3/4
32	6.362-015.0	Joint ring 21X30X2
33	6.387-916.0	"""Angle A1-1/2""""-BRONCE """
34	5.443-303.0	Hose stem
35	6.389-510.0	Hose clip 32
36	6.389-031.0	Hose
37	6.635-113.0	Float regulator
39	6.635-114.0	Seal
40	6.414-334.0	Strainer insert
41	6.387-945.0	"""Reducing nipple N4-1 1/2""""x1""""-RG5 """
42	6.685-728.0	Thermostat fixed adjusted
42	6.685-729.0	Thermostat
43	6.389-212.0	"""Hose stem 1 1/2"""" """
44	6.388-694.0	"""Hose stem 1"""" """
45	6.387-400.0	"""Double nipple N8-1 1/2""""-RG5 """
46	6.387-944.0	"""T-Piece B1-1 1/2""""-BRONCE """
47	6.641-465.0	Cable tape
48	6.412-960.0	Seal
49	6.413-233.0	Valve disc float valve
