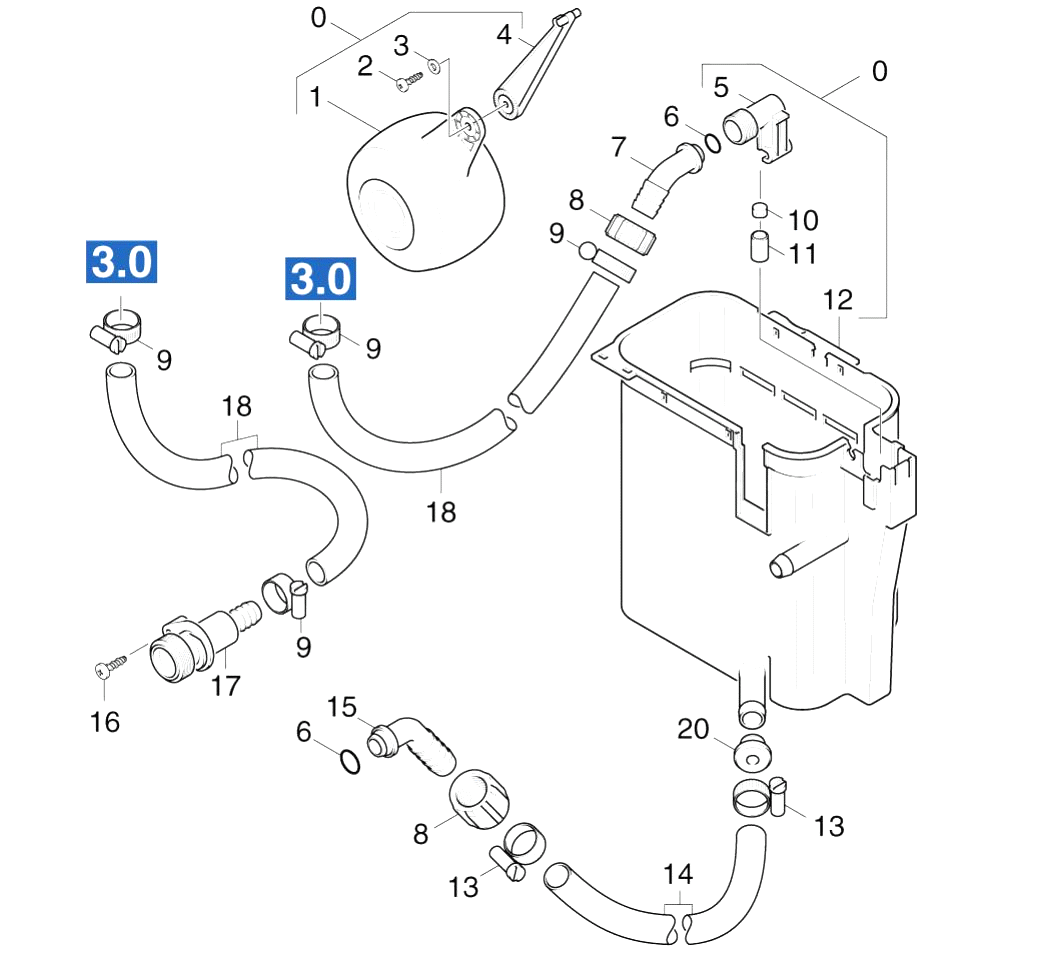

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 3.593-082.0 | Float valve | |
| 0 | 4.775-026.0 | Hand trigger gun | |
| 1 | 5.585-004.0 | Float | |
| 1 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 7.303-104.0 | Screw 5x16 -A2-70 (IN6RD) | |
| 2 | 5.321-174.0 | Handhold few | |
| 3 | 7.312-282.0 | Washer 5 -A2 ISO 7093-1 | |
| 3 | 6.362-176.0 | O-Ring seal 6,07x1,78 | |
| 4 | 5.481-118.0 | Lever | |
| 4 | 5.322-006.0 | Hand wheel | |
| 5 | 5.587-147.0 | Valve housing | |
| 5 | 5.030-283.0 | Moulded part | |
| 6 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 6 | 5.553-118.0 | Piston | |
| 7 | 5.443-285.0 | Hose stem | |
| 7 | 6.362-477.0 | O-Ring seal complete 1ST.-R. | |
| 8 | 5.310-062.0 | Nut | |
| 8 | 5.107-062.0 | Bar | |
| 9 | 6.388-547.0 | Hose clip | |
| 9 | 5.115-227.0 | Washer | |
| 10 | 5.364-095.0 | Flat gasket | |
| 10 | 5.481-039.0 | Lever | |
| 11 | 5.584-085.0 | Valve pin | |
| 11 | 5.305-110.0 | Shaped screw | |
| 12 | 5.070-140.0 | Tank | |
| 12 | 6.362-468.0 | O-Ring seal complete 1ST.-R. | |
| 13 | 6.388-548.0 | Hose clip | |
| 13 | 5.115-260.0 | Washer | |
| 14 | 6.392-256.0 | Piece of tube 19x4x430 | |
| 14 | 6.362-478.0 | O-Ring seal 12,42X 1,78 | |
| 15 | 5.443-211.0 | Hose stem | |
| 15 | 5.332-140.0 | Helical spring | |
| 16 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 16 | 4.581-049.0 | Valve seat | |
| 17 | 5.427-154.0 | Manifold | |
| 17 | 5.110-348.0 | Sleeve | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 18 | 6.362-479.0 | O-Ring seal 7,59X 2,62 | |
| 19 | 5.427-079.0 | Manifold | |
| 20 | 5.112-189.0 | Bush | |
| 20 | 6.362-496.0 | O-Ring seal 17,12X 2,62-NBR 70 | |
| 21 | 6.303-025.0 | Oval head screw 4,2x16-St-vz |
