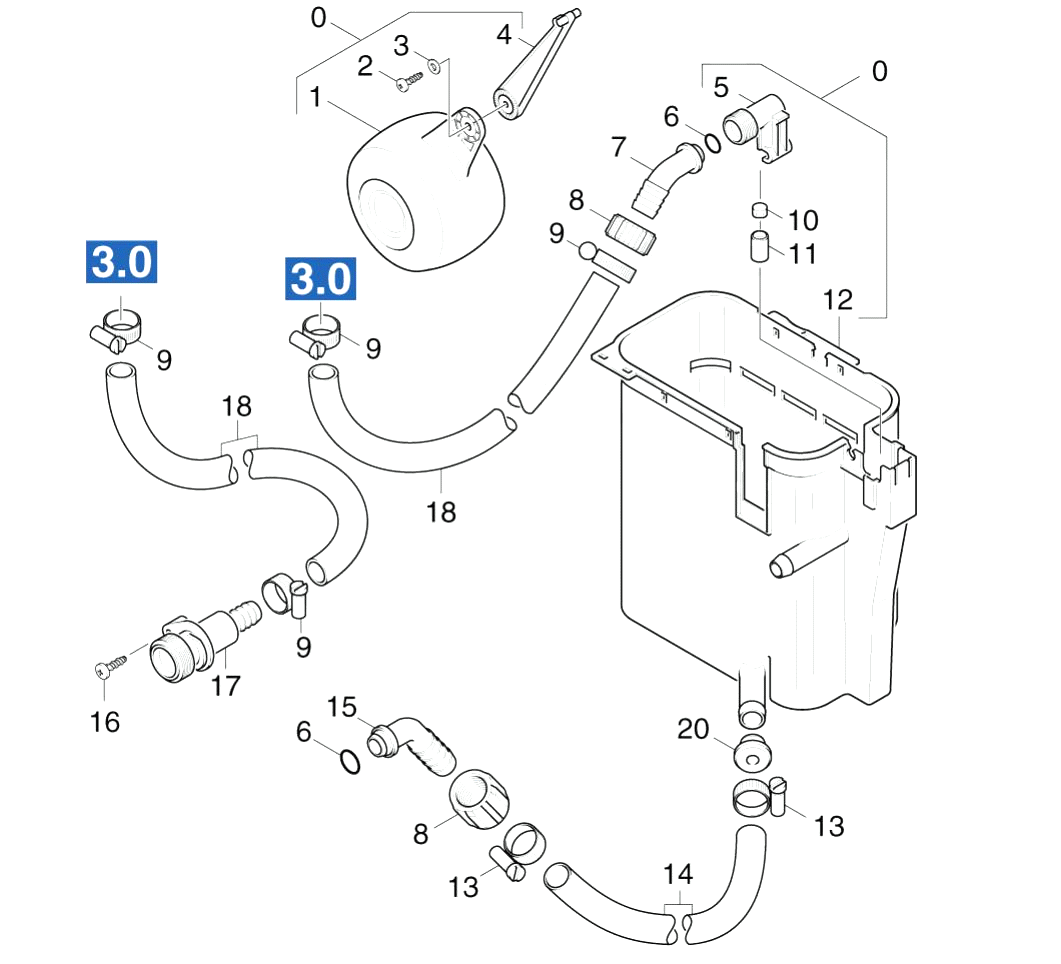

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 3.593-082.0 | Float valve | |
| 1 | 5.585-004.0 | Float | |
| 1 | 5.321-534.0 | Handhold few | |
| 2 | 7.303-104.0 | Screw 5x16 -A2-70 (IN6RD) | |
| 2 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 3 | 7.312-282.0 | Washer 5 -A2 ISO 7093-1 | |
| 3 | 5.322-012.0 | Hand wheel | |
| 4 | 5.481-118.0 | Lever | |
| 4 | 6.362-642.0 | O-Ring d. 7,65x1,78 -NBR 80 | |
| 5 | 5.587-147.0 | Valve housing | |
| 5 | 5.481-178.0 | Lever | |
| 6 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 6 | 5.404-079.0 | Hollow screw | |
| 7 | 5.443-285.0 | Hose stem | |
| 7 | 5.553-348.0 | Piston | |
| 8 | 5.310-062.0 | Nut | |
| 8 | 5.581-243.0 | Valve seat | |
| 9 | 6.388-547.0 | Hose clip | |
| 9 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 10 | 5.364-095.0 | Flat gasket | |
| 10 | 5.332-413.0 | Helical spring | |
| 11 | 5.584-085.0 | Valve pin | |
| 12 | 5.070-140.0 | Tank | |
| 12 | 5.427-214.0 | Manifold | |
| 13 | 6.388-548.0 | Hose clip | |
| 13 | 6.362-964.0 | O-Ring seal complete | |
| 14 | 6.389-556.0 | Hose 19x4 | |
| 14 | 5.316-400.0 | Bolt | |
| 15 | 5.443-211.0 | Hose stem | |
| 15 | 5.110-596.0 | Sleeve | |
| 16 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 16 | 4.037-013.0 | Hook | |
| 17 | 5.427-154.0 | Manifold | |
| 17 | 6.362-503.0 | O-Ring seal 8,0 X 1,0 | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 18 | 6.362-992.0 | O-Ring seal complete 2,6X1,9 | |
| 20 | 5.112-286.0 | Bush | |
| 21 | 6.288-016.0 | Gear oil 1L |
