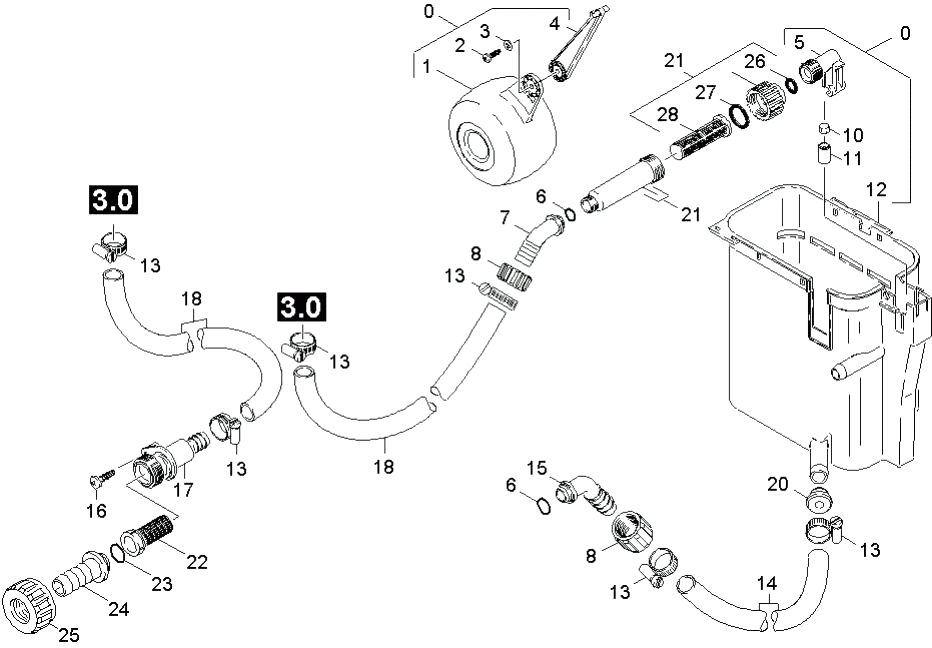

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 3.593-108.0 | Float valve only for replacement | |
| 0 | 3.593-082.0 | Float valve | |
| 1 | 5.585-004.0 | Float | |
| 1 | 6.389-768.0 | Hose clip | |
| 2 | 7.303-104.0 | Screw 5x16 -A2-70 (IN6RD) | |
| 2 | 6.389-534.0 | Hose | |
| 3 | 7.312-282.0 | Washer 5 -A2 ISO 7093-1 | |
| 3 | 6.389-262.0 | Union nut A 4-LL | |
| 4 | 5.481-118.0 | Lever | |
| 4 | 6.389-263.0 | Cutting ring d.4 | |
| 5 | 5.587-147.0 | Valve housing | |
| 5 | 6.389-261.0 | Screw union | |
| 6 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 7 | 5.443-285.0 | Hose stem | |
| 7 | 6.362-855.0 | O-Ring seal 56,0 X 4,0 | |
| 8 | 5.310-062.0 | Nut | |
| 8 | 4.421-631.0 | Pipelines BR.ST. | |
| 10 | 5.364-095.0 | Flat gasket | |
| 10 | 6.472-927.0 | Hose stem only for replacement | |
| 11 | 5.584-085.0 | Valve pin | |
| 12 | 5.070-140.0 | Tank | |
| 13 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 13 | 7.373-022.0 | Hose clip A-16-27x9 -W2-2 DIN3017 | |
| 14 | 6.365-053.0 | Compact seal 20X30X6 | |
| 14 | 4.775-470.0 | Rotary controller 416L | |
| 14 | 6.392-256.0 | Piece of tube 19x4x430 | |
| 15 | 5.112-420.0 | Bush | |
| 15 | 4.363-695.0 | Grooved ring only for replacement | |
| 15 | 5.443-211.0 | Hose stem | |
| 16 | 5.115-538.0 | Washer | |
| 16 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 17 | 6.362-092.0 | O-Ring seal 36,0 X 2,0-NBR 70 | |
| 17 | 5.427-154.0 | Manifold | |
| 18 | 6.365-330.0 | Grooved ring | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 19 | 4.550-607.0 | Cylinder head complete only for replacem | |
| 20 | 7.306-155.0 | Cylinder head screw M12x100 -8.8-A3E IS | |
| 20 | 5.112-189.0 | Bush | |
| 21 | 6.288-050.0 | Engine oil 1L | |
| 21 | 4.730-127.0 | Water filter | |
| 22 | 6.414-141.0 | Strainer | |
| 23 | 6.362-161.0 | O-Ring seal 19,3 X 2,4 | |
| 24 | 5.443-291.0 | Hose stem | |
| 25 | 5.310-076.0 | Nut | |
| 26 | 5.363-545.0 | Seal | |
| 27 | 5.363-336.0 | Seal | |
| 28 | 5.731-587.0 | Water filter |
