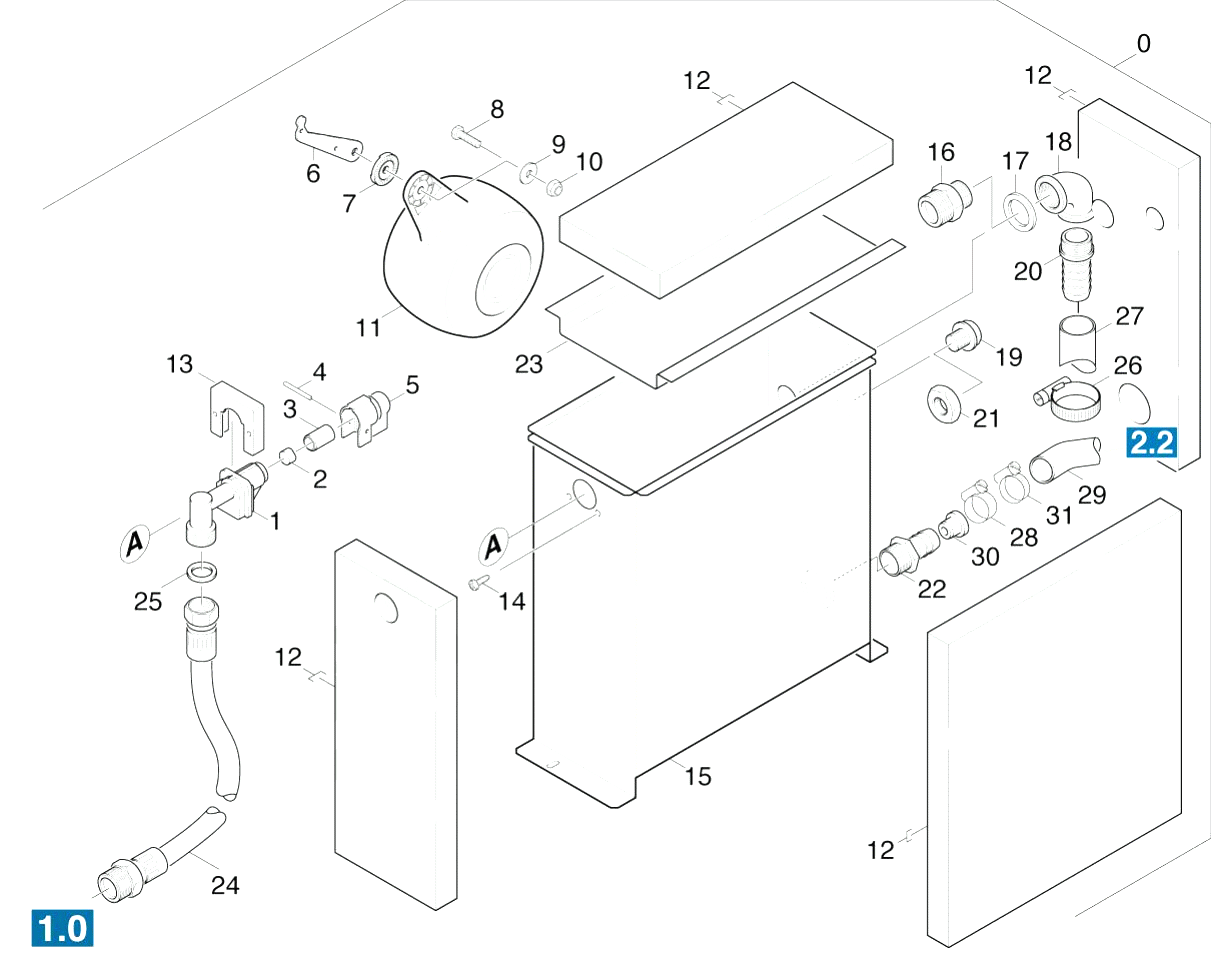

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.587-103.0 | Valve housing | |
| 2 | 5.364-095.0 | Flat gasket | |
| 3 | 5.584-026.0 | Valve pin | |
| 4 | 7.316-013.0 | Cotter 3,2x32-A ISO 1234 | |
| 5 | 5.394-066.0 | Protection part | |
| 6 | 5.481-029.0 | Lever | |
| 7 | 5.115-158.0 | Washer | |
| 8 | 7.306-194.0 | Screw M6x20 -A2-70 (In6Rd) | |
| 9 | 7.312-279.0 | Washer 6-CuZn ISO 7093-1 | |
| 10 | 7.311-422.0 | Hexagon nut M 6-1.4305 ISO 10511 | |
| 11 | 5.585-024.0 | Float | |
| 12 | 6.286-361.0 | Insulating set HD 600,1000,1400CH- | |
| 13 | 5.044-226.0 | Holder | |
| 14 | 7.306-206.0 | Screw M4x10 -A2-70 (In6Rd) | |
| 15 | 4.070-335.0 | Tank | |
| 16 | 6.386-010.0 | """Screw-in part R 3/4"""" - R 1"""" """ | |
| 17 | 6.362-033.0 | Joint ring 27X38X2 | |
| 18 | 7.387-096.0 | """Angle A1-3/4""""-Rotgu? EN10242 """ | |
| 19 | 7.382-145.0 | Screw plug G 1/4Ax8 DIN 910 | |
| 20 | 6.389-222.0 | """Hose stem 3/4"""" """ | |
| 21 | 5.311-104.0 | """Hexagon nut 1/4"""" """ | |
| 22 | 6.388-612.0 | """Hose stem R3/4"""" """ | |
| 23 | 5.048-655.0 | Sheet metal component filter HDR 777 | |
| 24 | 6.390-329.0 | Hose assembly DN13 | |
| 25 | 6.362-146.0 | Joint ring 17x24x2 | |
| 26 | 6.389-510.0 | Hose clip 32 | |
| 27 | 6.389-031.0 | Hose | |
| 28 | 6.388-508.0 | Hose clip 28/ 12 | |
| 29 | 6.390-330.0 | Elbow hose DN20 | |
| 30 | 5.112-189.0 | Bush | |
| 31 | 6.388-547.0 | Hose clip |
