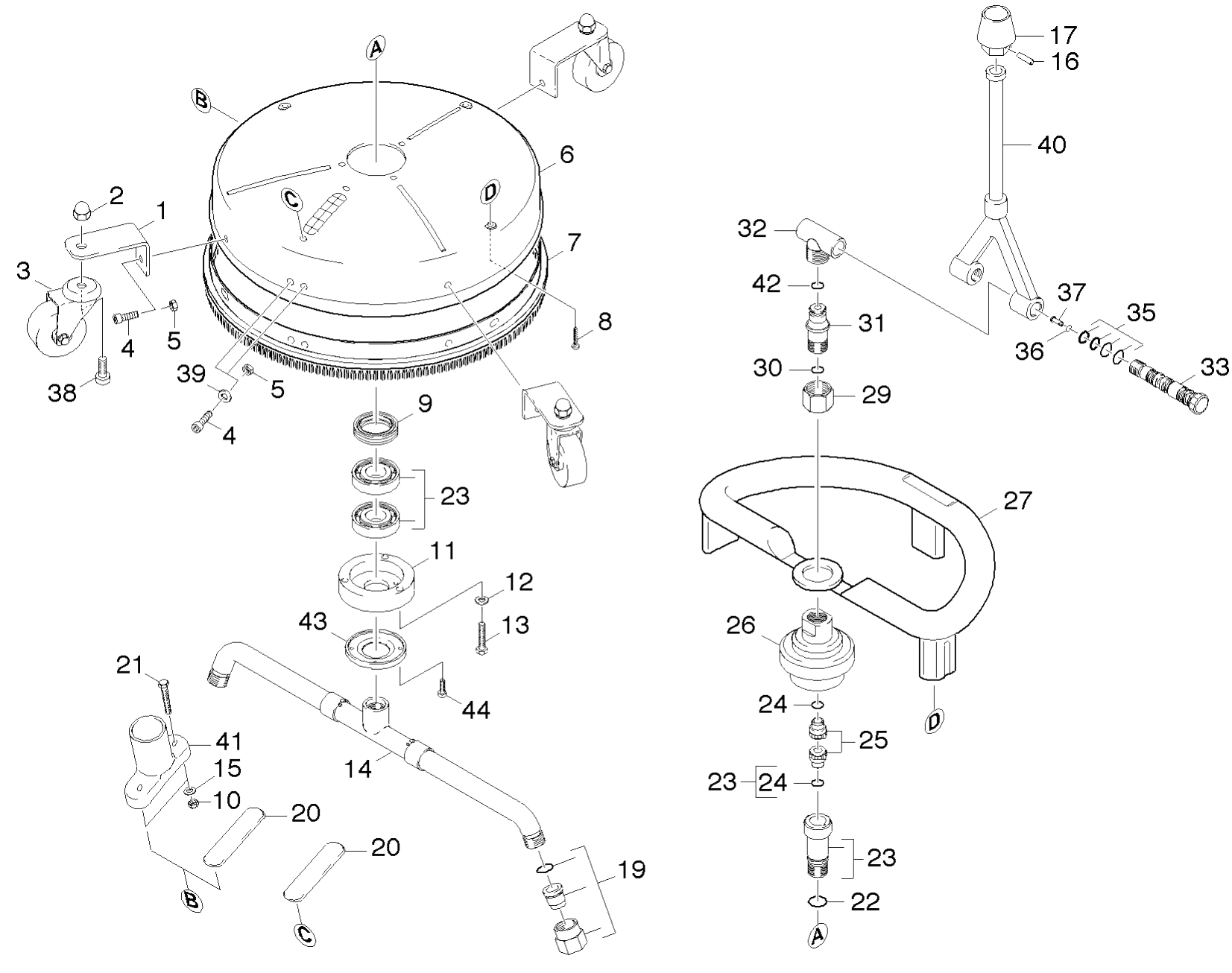

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.058-584.0 | Holder | |
| 2 | 7.311-402.0 | Cap nut M10-A1-50 DIN 1587 | |
| 3 | 6.435-694.0 | Castor | |
| 4 | 7.306-192.0 | Screw M 6x 12-A2-70 (In6Rd) | |
| 5 | 7.311-422.0 | Hexagon nut M 6-1.4305 ISO 10511 | |
| 6 | 5.058-555.0 | Cover | |
| 7 | 6.369-831.0 | Brush-corona FR 30 | |
| 8 | 7.303-117.0 | Screw 4x20 -A2-70 (In6Rd) | |
| 9 | 7.367-000.0 | Radial shaft seal ring A20x30x7-NBR DIN | |
| 10 | 7.311-028.0 | Hexagon nut M 4-04-A2E ISO 4035 | |
| 11 | 5.122-483.0 | Flange | |
| 12 | 7.312-052.0 | Washer 5 -A2 ISO 7089 | |
| 13 | 7.306-181.0 | Screw M 5x 12-A2-70 (In6Rd) | |
| 14 | 4.764-154.0 | Nozzle holder | |
| 15 | 7.312-067.0 | Washer 4-A2 ISO 7089 | |
| 16 | 6.343-150.0 | Pin 03 | |
| 17 | 5.394-530.0 | Protection part complete | |
| 19 | 6.362-176.0 | O-Ring seal 6,07x1,78 | |
| 19 | 2.639-188.0 | Nozzle pack 04-1100-1300 l/h | |
| 19 | 2.640-482.0 | Nozzle pack 018 | |
| 19 | 2.640-401.0 | Nozzle pack 020-500-650 l/h | |
| 19 | 2.640-442.0 | Nozzle pack 032 | |
| 19 | 2.639-187.0 | Nozzle pack 025 | |
| 20 | 6.412-993.0 | Safety valve | |
| 20 | 5.064-128.0 | Cover | |
| 21 | 6.412-267.0 | Gasket disc | |
| 21 | 7.306-209.0 | Screw M 4X 20-A2-70 (In6Rd) | |
| 22 | 6.414-111.0 | Strainer | |
| 22 | 6.362-388.0 | O-Ring seal 8,0x1,5 -EPDM 70 | |
| 23 | 6.362-160.0 | O-Ring seal 17,3 X 2,4 | |
| 23 | 4.250-078.0 | Bearing complete | |
| 24 | 5.402-466.0 | Screw union | |
| 24 | 6.362-658.0 | O-Ring seal 7 X 1,5-NBR 90 | |
| 25 | 5.581-135.0 | Valve seat | |
| 25 | 5.111-322.0 | Sleeve | |
| 26 | 5.108-267.0 | Turned part | |
| 27 | 5.321-716.0 | Handhold | |
| 27 | 5.321-752.0 | Handhold | |
| 29 | 7.383-004.0 | Union nut B1 LL15 -Ms DIN3870 | |
| 30 | 6.362-384.0 | O-Ring seal 9x1,5 - NBR 70 | |
| 31 | 5.424-130.0 | Sealing cone | |
| 32 | 5.427-314.0 | T-Piece | |
| 33 | 5.100-428.0 | Shaft | |
| 35 | 2.883-982.0 | Spare part set O-Ring seal | |
| 36 | 6.362-360.0 | O-Ring seal 4,0 X 1,0-EPDM 77 | |
| 37 | 5.317-098.0 | Bolt | |
| 38 | 7.306-234.0 | Cylinder head screw M10x20-A4-70 ISO 47 | |
| 39 | 7.312-026.0 | Washer 6 -A2 ISO 7090 | |
| 40 | 4.481-207.0 | Joint | |
| 41 | 5.032-474.0 | Suction connection | |
| 42 | 2.880-154.0 | O-Ring kit | |
| 43 | 5.122-478.0 | Flange | |
| 44 | 7.306-204.0 | Screw M 3X 10-A2-70 (IN6RD) |
