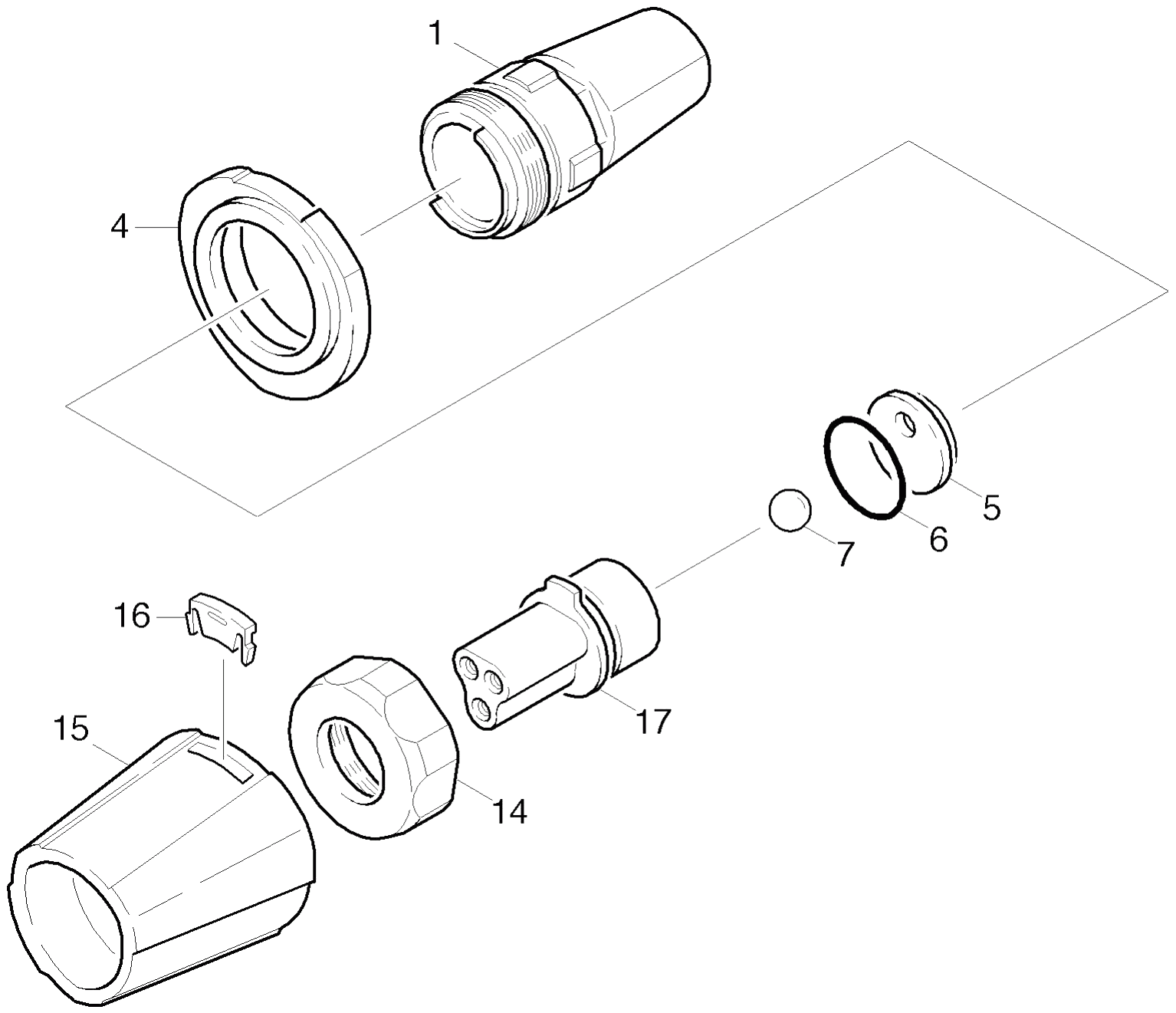

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.060-395.0 | Housing complete only for replacement | |
| 3 | 6.362-409.0 | O-Ring seal 32,0 X 1,5 | |
| 4 | 5.394-401.0 | Protection part | |
| 4 | 7.362-039.0 | O-Ring seal 15,5x1,5 -NBR70 DIN 3771 | |
| 5 | 5.031-370.0 | Moulded part | |
| 5 | 5.321-884.0 | Clamp | |
| 6 | 6.362-831.0 | O-Ring d. 22x2 NBR 90 | |
| 6 | 5.311-236.0 | Nut | |
| 7 | 7.401-917.0 | Sphere 10,0 G100-1.4301 DIN 5401 | |
| 7 | 6.362-480.0 | O-Ring seal 12,42x 1,78 | |
| 8 | 5.394-874.0 | Protection part | |
| 9 | 7.401-902.0 | Sphere 5 G20 -1.4034 DIN 5401 | |
| 14 | 5.311-192.0 | Union nut | |
| 15 | 5.394-402.0 | Protection part | |
| 16 | 5.031-709.0 | Moulded part | |
| 17 | 4.764-139.0 | Nozzle holder only for replacement 045 | |
| 17 | 4.764-148.0 | Nozzle holder only for replacement 065 | |
| 17 | 4.764-141.0 | Nozzle holder 05 | |
| 17 | 4.767-015.0 | Nozzle holder only for replacement 037 | |
| 17 | 4.767-148.0 | Triple jet nozzle replacement 036 | |
| 17 | 4.764-138.0 | Nozzle holder only for replacement 034 |
