Karcher (Керхер) Роторная форсунка (0.196-366.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

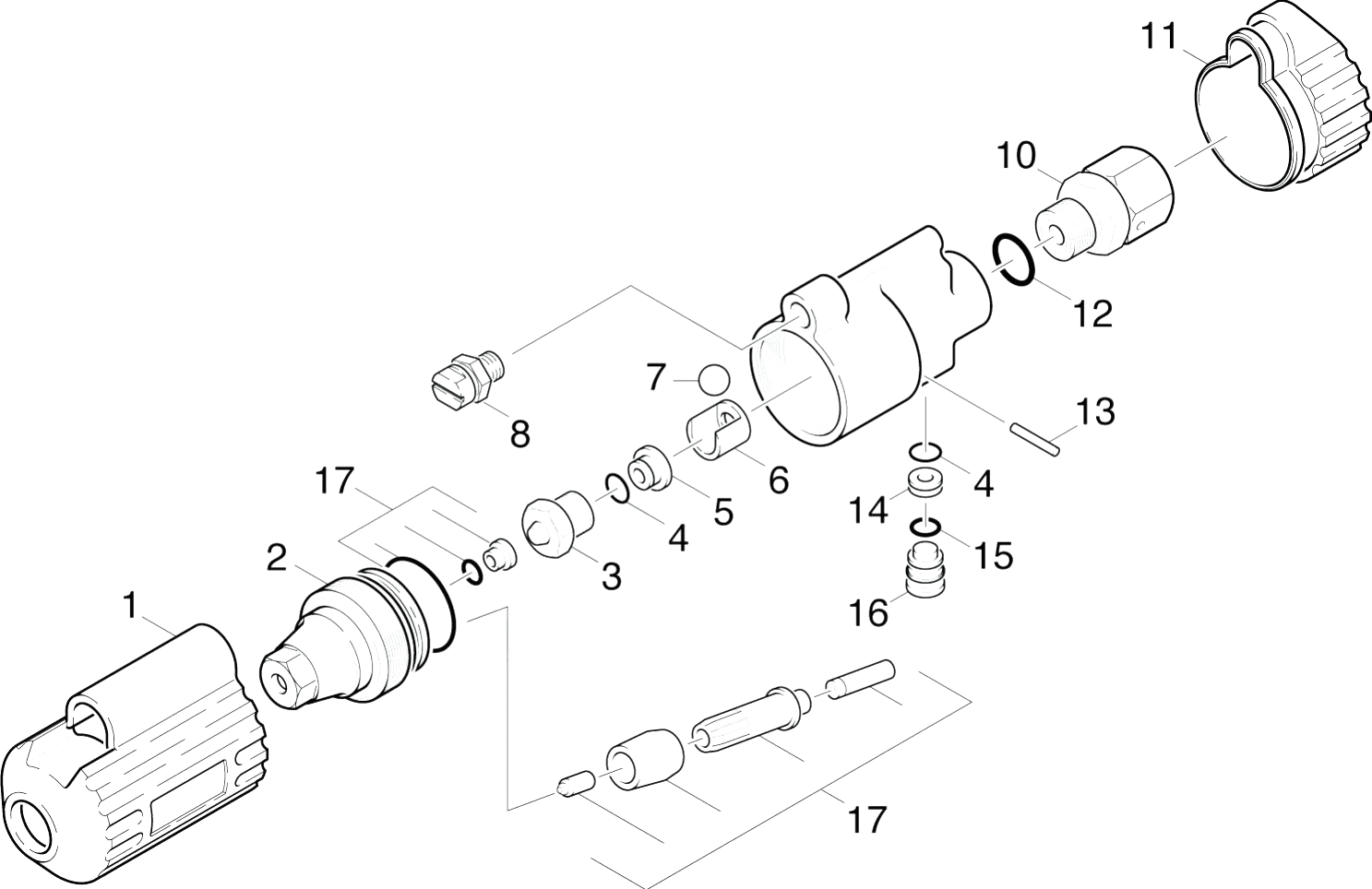

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.883-824.0	Spare part set dirt blaster neutrally 04
0	2.884-974.0	Spare parts set rotor nozzle neutrally 0
1	5.394-217.0	Protection part
1	4.767-119.0	Rotor nozzle 055/060
1	4.767-121.0	Rotor nozzle 100/120
1	4.767-120.0	Rotor nozzle 070/080
1	4.767-116.0	Rotor nozzle 035
1	4.767-118.0	Rotor nozzle 050
1	4.767-117.0	Rotor nozzle 040
2	5.063-737.0	Cover
3	5.402-588.0	Screw union
3	5.402-587.0	Screw union
3	5.402-589.0	Screw union
3	5.402-590.0	Screw union
4	6.362-451.0	O-Ring seal 8,0 x 1,0
5	5.581-217.0	Valve seat
6	5.110-360.0	Sleeve
7	7.401-917.0	Sphere 10,0 G100-1.4301 DIN 5401
8	6.415-504.0	Flat jet nozzle 2505
8	6.415-477.0	Flat jet nozzle 4030
8	6.415-503.0	Flat jet nozzle -25045
8	6.415-506.0	Flat jet nozzle -2508
8	6.415-505.0	Flat jet nozzle -25055
10	4.402-038.0	Screw union
11	5.394-446.0	Protection part
12	6.362-153.0	O-Ring seal 15,3 X 2,4-NBR 70
13	7.314-654.0	Straight grooved pin 3x20 -A1 ISO8740
14	5.581-118.0	Valve seat
15	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
16	5.132-055.0	Plug
17	2.883-812.0	Spare part set dirt blaster 05
17	2.883-810.0	Spare part set dirt blaster 055/06
17	2.883-813.0	Spare part set dirt blaster 07/08
17	2.883-811.0	Spare part set dirt blaster switchable 0
