Karcher (Керхер) Очиститель поверхностей (0.103-872.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

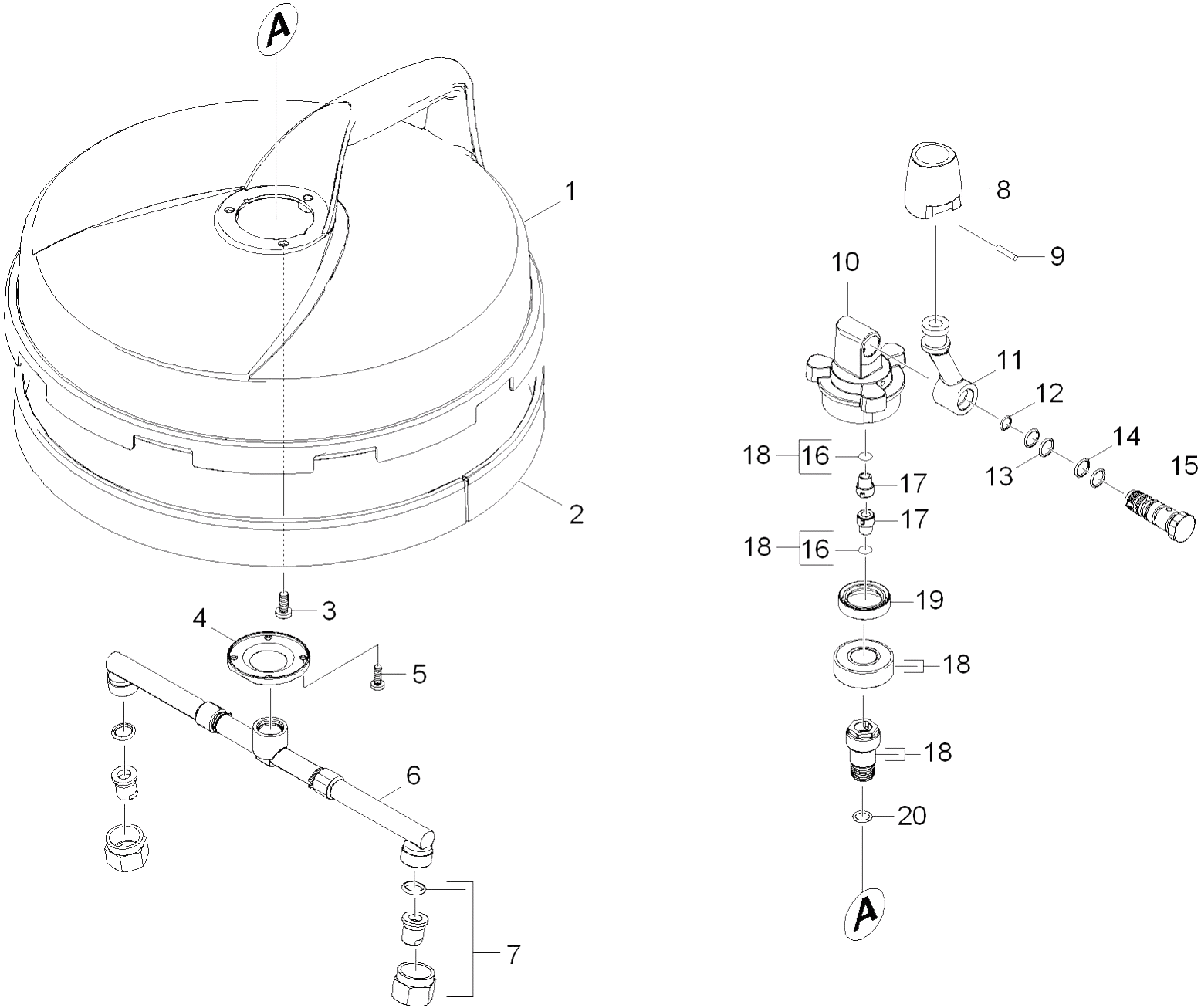

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-376.0	Крышка комплектный
2	6.371-051.0	Brush-corona FR 28
2	4.760-246.0	Струйная трубка
3	7.306-181.0	Screw M 5x 12-A2-70 (In6Rd)
3	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
4	5.122-478.0	Flange
5	7.306-204.0	Screw M 3X 10-A2-70 (IN6RD)
5	6.303-025.0	Oval head screw 4,2x16-St-vz
6	4.764-154.0	Nozzle holder
6	5.321-151.0	Handhold
7	2.639-187.0	Nozzle pack 025
7	2.640-482.0	Nozzle pack 018
7	2.640-401.0	Nozzle pack 020-500-650 l/h
7	6.362-365.0	O-Ring seal complete 1ST.-R.- 7,65X 1,7
8	5.394-530.0	Protection part complete
8	5.037-071.0	Hook
9	6.343-150.0	Pin 03
10	5.481-401.0	Base body
11	5.481-402.0	Hinge part
11	2.637-956.0	Nozzle pack
12	6.363-111.0	O-Ring seal 7,0 X 1 -NBR 70
13	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
13	4.132-006.0	Plug complete
14	2.640-902.0	Nozzle pack 070
14	2.640-695.0	Nozzle pack 110
14	2.640-687.0	NOZZLE PACK 075
14	2.640-688.0	Nozzle pack 090
14	2.640-694.0	Nozzle pack 090
14	2.640-689.0	Nozzle pack 110
14	2.640-870.0	Nozzle pack 055
14	6.362-958.0	O-Ring seal 9 x 2-NBR 90
15	5.108-256.0	Turned part
15	5.100-569.0	Axle
15	6.362-815.0	Опорное кольцо
16	6.362-658.0	O-Ring seal 7 X 1,5-NBR 90
16	6.362-434.0	O-Ring seal 10,0 X 1,5-FPM 75
17	5.111-322.0	Sleeve
17	6.362-513.0	O-Ring seal 7,3 x 2,4
18	4.250-082.0	Bearing complete only for replacement
18	5.321-691.0	Handhold few jet pipe
19	7.367-000.0	Radial shaft seal ring A20x30x7-NBR DIN
20	6.362-388.0	O-Ring seal 8,0x1,5 -EPDM 70
