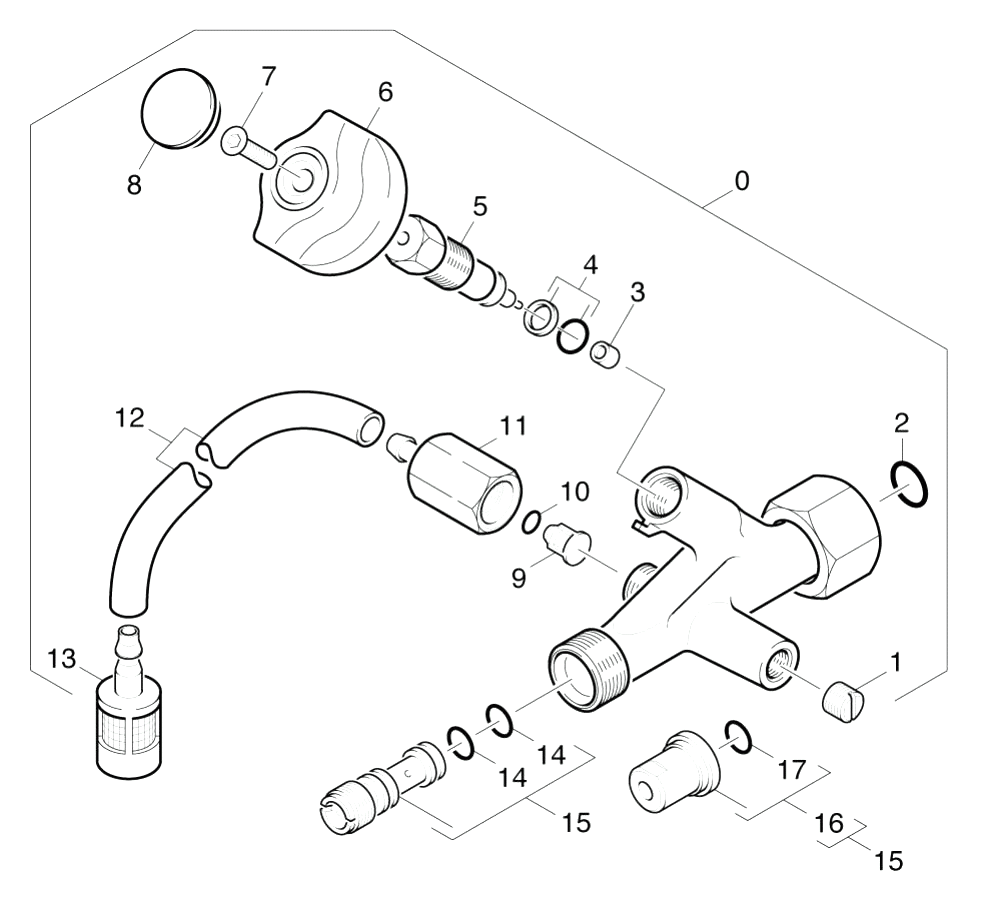

Karcher (Керхер) МК инжектор (0.196-690.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.307-301.0	Threaded pin M10X 12-A1-50 ISO 7435
2	6.362-392.0	O-Ring seal 10,0 X 2,0
3	5.581-258.0	Valve seat
4	6.362-365.0	O-Ring seal complete 1ST.-R.- 7,65X 1,7
6	5.321-101.0	Handhold
7	7.305-253.0	Countersunk screw M 4x12-4.8-A2E ISO 70
8	5.132-010.0	Plug
9	5.584-091.0	Valve pin check valve
10	6.362-851.0	O-Ring seal 4 x 2 NBR 90
11	5.443-478.0	Hose stem
12	6.388-216.0	Hose DN 5
13	5.731-652.0	Filter with weight
14	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
15	4.769-046.0	Nozzle insert HDS-GER.500-700L/H
15	4.769-045.0	Nozzle insert HD-GER.500-700 L/H
15	4.769-047.0	Nozzle insert HDS-GER.750-1000L/H
15	4.769-048.0	Nozzle insert
16	2.883-407.0	Power nozzle 25090
16	2.883-400.0	Power nozzle 25052
16	2.883-399.0	Power nozzle 25050
16	2.883-404.0	Power nozzle 25070
17	2.880-154.0	O-Ring kit
28	5.769-204.0	Nozzle insert
29	6.365-519.0	O-Ring seal 9,0x1,5 EPDM
