Диспенсер Karcher (Керхер) WPD 100 P-AC (1.024-905.0)

Karcher (Керхер) Детали (0.208-815.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

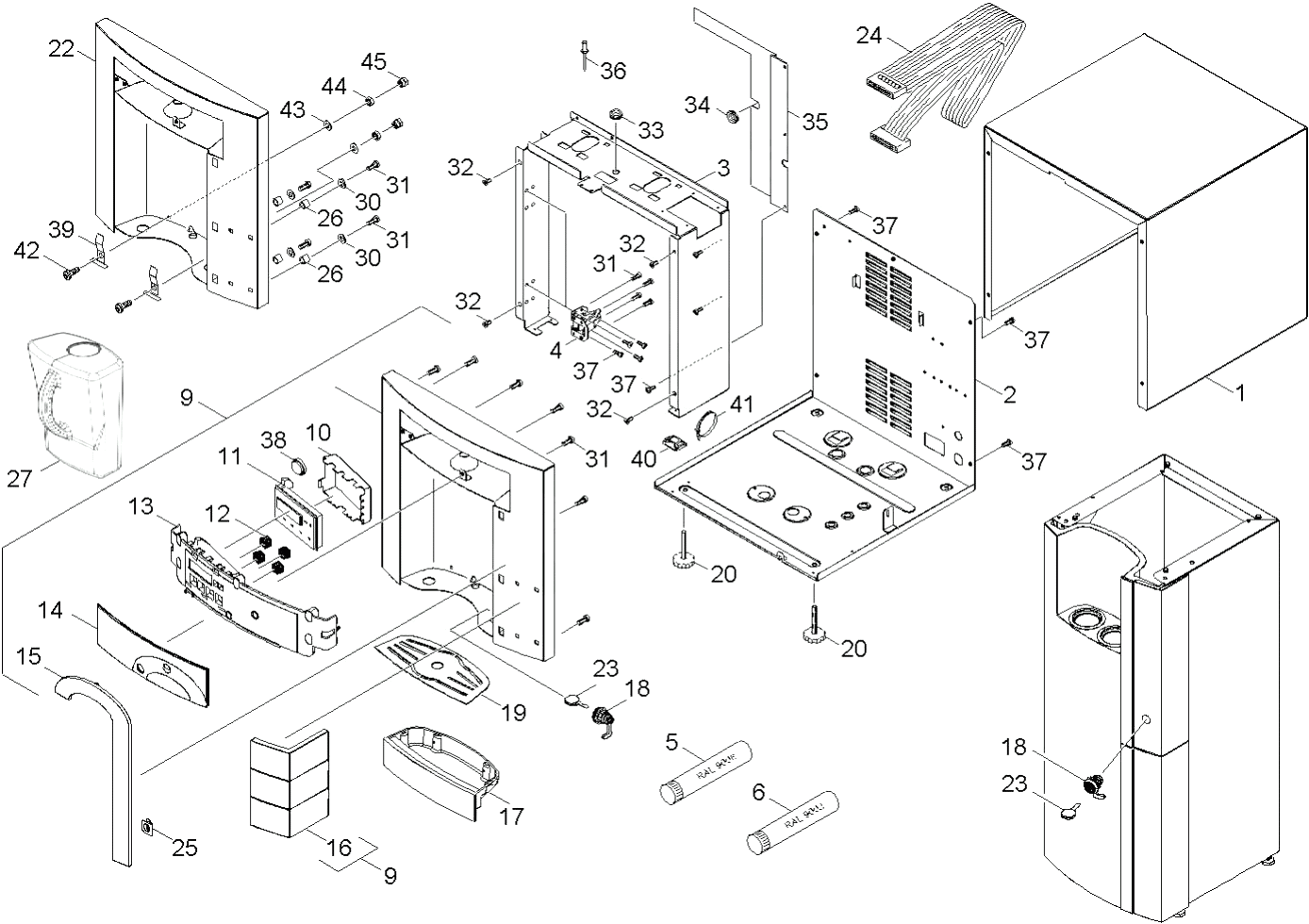

REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 5.640-123.0 Cover above WPD 100 Premium
1 5.069-229.0 Cover above WPD 100 Standard
1 5.640-161.0 Cover above WPD 100 Top
2 5.640-163.0 Bottom WPD 100 Top
2 5.640-122.0 Bottom WPD 100 Premium
2 5.069-222.0 Bottom WPD 100 Standard
3 5.069-250.0 Plate suspension WPD 100
4 6.640-224.0 Hinge 95°
5 6.640-325.0 Touch-up stick white aluminium RAL 9006
6 6.640-326.0 Touch-up stick signal white RAL 9003
9 4.640-110.0 Door complete with sensor WPD 100 S
9 4.640-199.0 Door complete with sensor WPD 100 S-AC-C
9 4.640-157.0 Door complete with sensor WPD 100 S-CO2
9 4.640-120.0 Door complete with sensor WPD 100 T
9 4.640-154.0 Door complete with sensor WPD 100 T-CO2
10 6.640-253.0 Covering cap circuit board display
11 4.640-359.0 Circuit board display packaged WPD 100
12 6.640-231.0 Pressure spring
13 5.032-034.0 Retainer circuit board WPD100
14 5.640-183.0 Washer standard WPD 100
14 5.032-032.0 Washer WPD 100, CO2
14 5.640-236.0 Washer WPD 100 S-AC-C
15 5.640-158.0 Design element tap WPD100 Top
15 5.034-850.0 Design element tap WPD100 Premium
15 5.032-010.0 Design element tap WPD100 Standard
16 5.034-851.0 Design element angle Top+Premium
16 5.032-020.0 Design element angle WPD 100 Standard
17 4.640-322.0 Drip pan with sensor WPD 100 S
17 4.640-094.0 Drip pan Premium
17 4.640-323.0 Drip pan with sensor WPD 100 T
18 6.640-190.0 Lock
18 6.640-251.0 Lock stainless steel
19 5.050-371.0 Grate drip pan WPD 100 P
19 5.050-444.0 Grate drip pan WPD 100 S+T
20 6.640-161.0 Pedestal rubber
22 4.640-092.0 Door WPD 100 Premium
23 6.640-256.0 Key EMKA EK 333
25 5.640-165.0 Fixing symbol tap Premium
26 5.640-166.0 Fixing angle Premium
27 6.640-341.0 Mug 4l
28 7.312-043.0 Washer 3-A2 ISO 7089
29 7.311-063.0 Hexagon nut M 3-A2-70 ISO 4032
30 7.312-293.0 Washer 4-A2 ISO 7093-1
31 7.303-116.0 Screw 4x12-A2-70 (IN6RD)
32 7.305-034.0 Countersunk screw M4x8 -A2-70 (In6Rd)
33 6.641-642.0 Wire protecting sleeve D27
34 6.641-428.0 Wire protecting sleeve D15
35 5.640-206.0 Plate covering cap
36 6.315-047.0 Blind rivet 3,0
37 7.306-206.0 Screw M4x10 -A2-70 (In6Rd)
38 6.640-557.0 Battery for circuit board WPD 100
39 6.640-471.0 Contact spring
40 6.641-475.0 Mounting base cable
41 6.641-463.0 Cable tape
42 7.306-207.0 Screw M4x12 -A2-70 (In6Rd)
43 7.312-067.0 Washer 4-A2 ISO 7089
44 7.311-064.0 Hexagon nut M 4-A2-70 ISO 4032
45 7.311-424.0 Hexagon nut M4 -8-A2E ISO 7040
