Karcher (Керхер) Детали (0.208-815.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

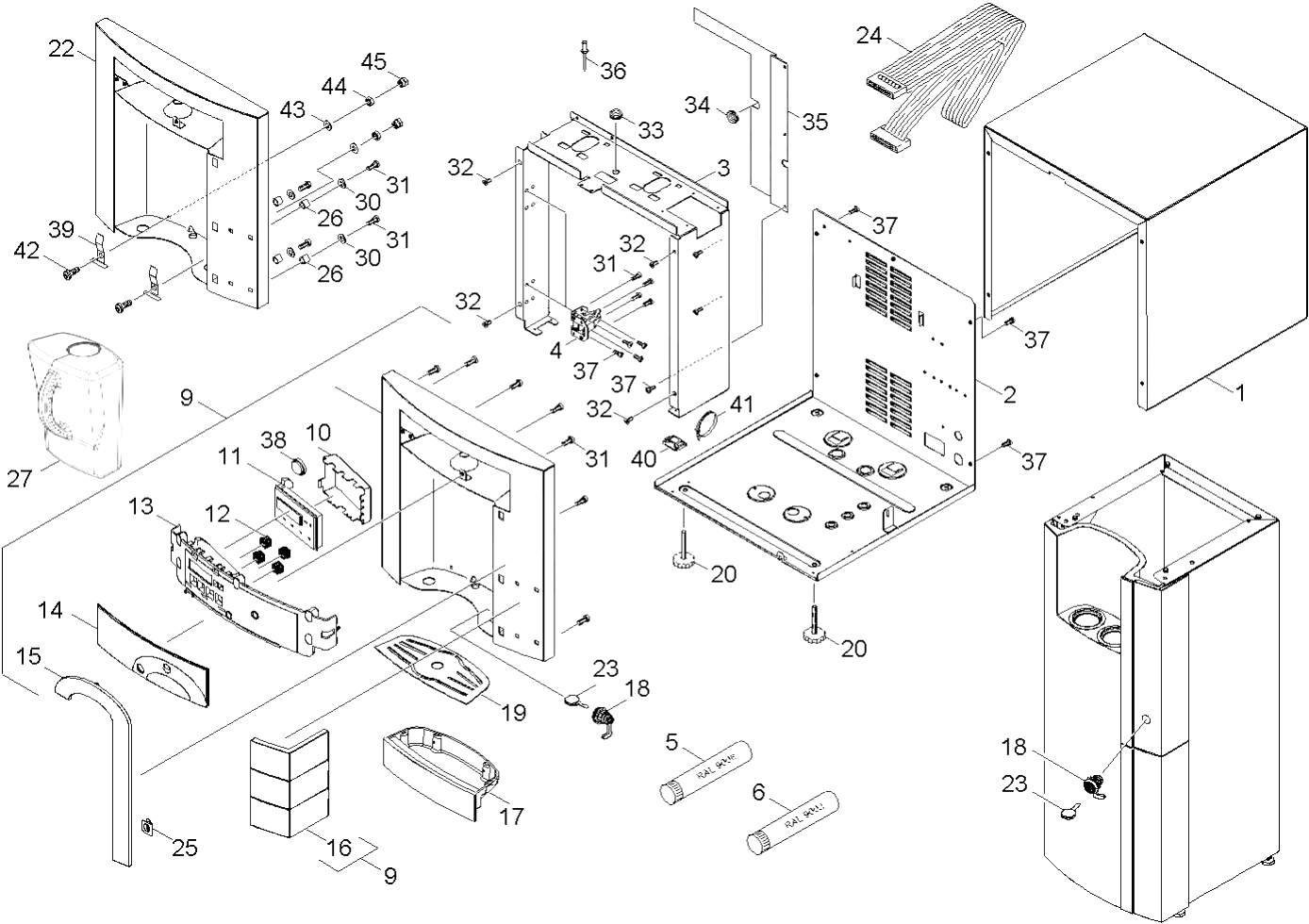

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.069-229.0	Cover above WPD 100 Standard
1	5.640-161.0	Cover above WPD 100 Top
1	5.640-123.0	Cover above WPD 100 Premium
2	5.640-122.0	Bottom WPD 100 Premium
2	5.069-222.0	Bottom WPD 100 Standard
2	5.640-163.0	Bottom WPD 100 Top
3	5.069-250.0	Plate suspension WPD 100
4	6.640-224.0	Hinge 95°
5	6.640-325.0	Touch-up stick white aluminium RAL 9006
6	6.640-326.0	Touch-up stick signal white RAL 9003
9	4.640-110.0	Door complete with sensor WPD 100 S
9	4.640-199.0	Door complete with sensor WPD 100 S-AC-C
13	5.032-034.0	Retainer circuit board WPD100
14	5.640-236.0	Washer WPD 100 S-AC-C
14	5.032-032.0	Washer WPD 100, CO2
14	5.640-183.0	Washer standard WPD 100
15	5.032-010.0	Design element tap WPD100 Standard
15	5.034-850.0	Design element tap WPD100 Premium
15	5.640-158.0	Design element tap WPD100 Top
16	5.032-020.0	Design element angle WPD 100 Standard
16	5.034-851.0	Design element angle Top+Premium
17	4.640-323.0	Drip pan with sensor WPD 100 T
17	4.640-322.0	Drip pan with sensor WPD 100 S
